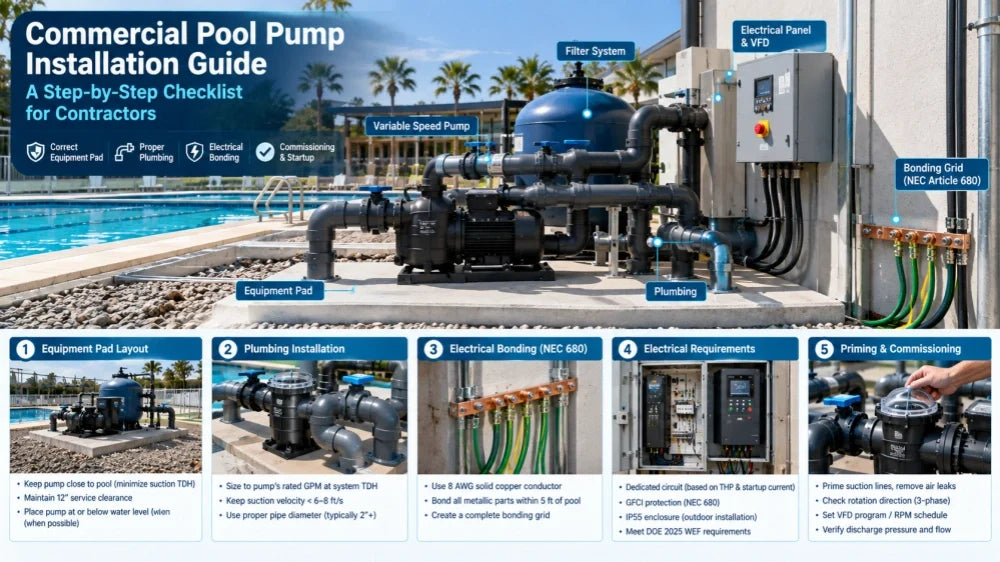

Even a correctly sized, DOE 2025-compliant variable speed pump can underperform or fail inspection if installation details — bonding, pad layout, plumbing diameter — aren't executed to code. Contractors managing commercial installations need a repeatable checklist that covers electrical, plumbing, and structural requirements together, since these systems interact and a shortcut in one area often surfaces as a problem in another. This guide walks through the key installation steps for a commercial variable speed pool pump, from equipment pad planning through final commissioning.

What Should the Equipment Pad Layout Include Before Pump Installation?

The equipment pad layout should position the pump as close to the pool as hydraulically practical to minimize suction-side TDH, while maintaining manufacturer-specified clearances for ventilation and service access — most commercial pump housings require at least 12 inches of clearance on the service side for motor and seal maintenance. Industry standard practice for commercial aquatic facilities places the pump below or at pool water level whenever possible to maintain positive suction head, avoiding the priming issues that occur when a pump sits significantly above the water line on a long suction run.

For professional-grade hardware designed for these layouts, browse our commercial pool pumps.

How Do You Size Plumbing for a High-Flow Commercial Pump?

Plumbing must be sized to the pump's rated GPM at the system's calculated TDH, not the pump's maximum nameplate flow, since undersized pipe on either suction or return lines increases friction loss and reduces real-world delivered flow. A pump rated to deliver 100 GPM at moderate head typically requires a minimum 2-inch suction line and comparable return sizing to avoid excessive velocity — as a rule of thumb, keeping flow velocity under roughly 6-8 feet per second on suction lines helps prevent cavitation and noise, though exact sizing should reference the pump manufacturer's plumbing charts. According to HUIQI Water Technology's engineering team, with 19 years of commercial pool project experience across 50+ countries, undersized suction plumbing is among the most common installation errors that causes a correctly specified pump to underperform its rated THP capacity in the field.

Why Is Electrical Bonding Critical for Pool Pump Installation Compliance?

Per NEC Article 680, all metallic pump components and other conductive equipment within 5 feet of the pool must be connected to an equipotential bonding grid using minimum 8 AWG solid copper conductor, a requirement designed to eliminate dangerous voltage gradients around the pool rather than to provide a path to earth ground. Bonding is a distinct requirement from grounding, and inspectors commonly fail installations where contractors bond only the pump motor housing but miss the bonding lugs on plumbing fittings, ladders, or rebar within the required radius — a complete bonding grid must connect every specified conductive element into a single continuous system.

Consult our Commercial Pool Equipment documentation for further bonding lug requirements.

Which Electrical Requirements Apply Specifically to Variable Speed Pumps?

Variable speed pumps with BPM (brushless permanent-magnet) motors typically require dedicated circuit sizing based on the motor's THP and starting current characteristics, and per DOE 2025 federal energy regulations, most commercial installations must use a variable-speed or multi-speed pump to meet minimum WEF thresholds for the relevant pump category. GFCI protection is required for the branch circuit per NEC Article 680, and contractors should verify the pump's control panel or VFD enclosure meets the appropriate IP rating — typically IP55 for TEFC motor housings exposed to outdoor equipment pad conditions — to prevent moisture ingress into control electronics.

How Should Suction-Side Components Be Sequenced During Installation?

Suction-side plumbing should be sequenced main drain/skimmer, then hair strainer basket, then pump inlet, ensuring the hair strainer's rated GPM meets or exceeds the pump's maximum flow to avoid creating a flow-restricting bottleneck ahead of the impeller. Installing the pool hair strainer at an accessible point on the equipment pad — rather than burying it in an inaccessible trench run — supports the industry-standard practice of daily basket inspection at high-bather-load commercial facilities.

Can Improper Priming or Startup Procedures Damage a New Commercial Pump?

Yes — running a self-priming pump dry, even briefly, during initial startup can damage mechanical seals before the pump ever reaches normal operation, so contractors should confirm all suction lines are fully primed with water and free of air leaks before energizing the motor. Startup should also include verifying rotation direction on three-phase motors, checking that the VFD or control panel is programmed to the correct RPM schedule for the facility's turnover requirements, and confirming discharge pressure readings align with the pump's expected performance curve at the installed system's TDH.

Frequently Asked Questions

Q: What is the difference between grounding and bonding for pool pump installation?

A: Bonding connects all conductive components around the pool into a single equipotential grid to eliminate voltage differences, while grounding provides a path back to the electrical source for fault current. NEC Article 680 requires both, but bonding using 8 AWG copper is the requirement most frequently missed on inspection.

Q: How do I choose the right plumbing diameter for a high-flow commercial pump installation?

A: Size plumbing to the pump's rated GPM at your calculated system TDH, keeping suction-side velocity under roughly 6-8 feet per second to avoid cavitation. Always cross-reference the specific pump manufacturer's plumbing sizing chart rather than applying a generic diameter rule.

Q: What does DOE 2025 compliance mean for pool pump installation, not just the pump itself?

A: DOE 2025 compliance is a product-level requirement met by the pump's WEF rating, but installation must still support that efficiency — undersized plumbing or poor pad layout can force even a compliant pump to work harder than its rating assumes. Correct installation protects the real-world energy savings the regulation is designed to achieve.

Q: How long does a properly installed commercial variable speed pump last?

A: A correctly installed and maintained commercial variable-speed pool pump typically lasts 8-12 years. Installation errors like dry-priming during startup or chronic suction restriction can shorten this significantly by stressing seals and motor components prematurely.

Q: How much energy can proper installation help a variable speed pump save?

A: Correct installation — right-sized plumbing, minimal suction TDH, and full performance-curve realization — helps a variable-speed pump achieve its full 40-60% energy savings potential compared to single-speed models. Poor installation can erode much of that savings by forcing the pump to run at higher RPM than necessary to compensate for excess system resistance.

Q: Do commercial pool pump installations require a licensed electrician?

A: In most jurisdictions, yes — the electrical connection, bonding, and GFCI circuit work for a commercial pool pump typically must be performed or verified by a licensed electrician to pass inspection under NEC Article 680. Plumbing and pad-mounting work may fall under the pool contractor's scope, but electrical compliance usually requires separate licensed sign-off.

Conclusion

A correct commercial pool pump installation depends on three coordinated elements: equipment pad layout that minimizes TDH, plumbing sized to the pump's actual performance curve, and complete NEC Article 680 bonding and electrical compliance. Getting these right protects both inspection outcomes and the DOE 2025 energy savings the pump is rated to deliver. For contractors and developers managing multi-site or international projects, working with a manufacturer that provides full installation and plumbing specification support reduces field errors and callback risk. Request a Technical Consultation →
