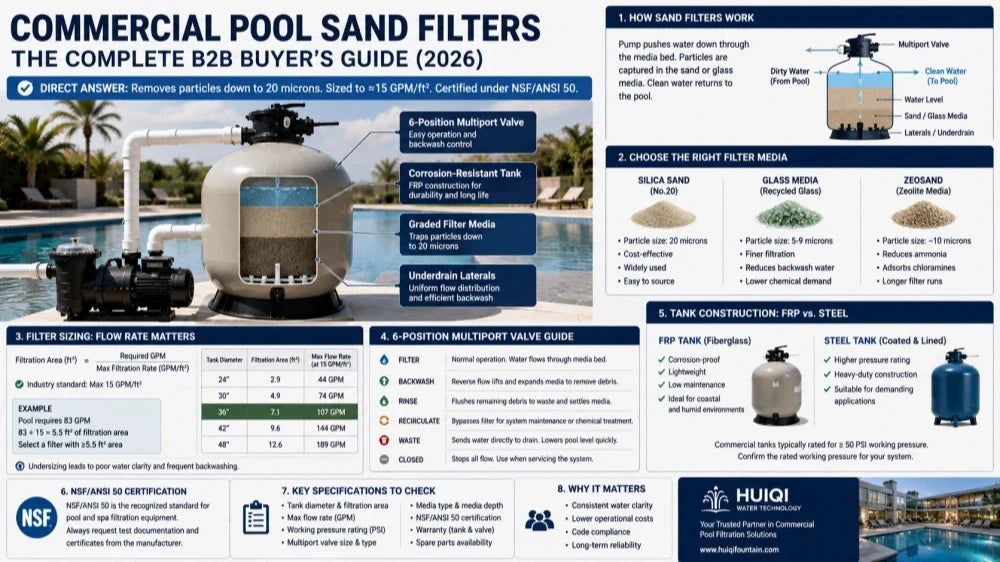

Commercial Pool Sand Filters: The Complete B2B Buyer's Guide (2026)
SUJIAHUI
◆ Direct Answer A commercial pool sand filter removes particles down to 20 microns by passing water through a graded sand or glass media bed, sized to a maximum flow rate of roughly 15 GPM/ft² and certified under NSF/ANSI 50.
Sourcing a commercial pool sand filter involves more variables than most procurement checklists account for — tank material, media type, pressure rating, and certification all affect whether a filter performs reliably under high bather loads or fails inspection outright. Pool contractors and facility engineers who default to residential-grade specs on commercial jobs often end up with undersized filtration, excessive backwash frequency, and non-compliant equipment. This guide covers what B2B buyers need to evaluate before ordering — from tank construction and media selection to flow rate sizing and manufacturer certification.
What Is a Commercial Pool Sand Filter and How Does It Work?
A commercial pool sand filter works by passing pump-driven water down through a bed of graded filter media — most commonly No.20 silica sand — that mechanically traps particles as small as 20 microns before returning clean water to the pool. The pressurized tank holds the media bed above a laterals/underdrain system that collects filtered water at the bottom while distributing backwash flow evenly during cleaning cycles. Because the entire filtration process depends on consistent flow distribution across the media bed, tank construction quality and internal laterals design matter as much as the media itself for commercial-grade performance.
Which Filter Media Type Is Right for a Commercial Application?
Standard No.20 silica sand remains the most common and cost-effective media for commercial installations, but glass media (recycled crushed glass) has gained traction for its finer filtration precision — typically capturing particles down to 5-9 microns compared to sand's 20-micron threshold — while also reducing backwash water consumption. ZeoSand, a zeolite-based media, offers a middle ground with improved ammonia and chloramine adsorption. For high-bather-load commercial pools where water clarity and reduced chemical demand are priorities, glass media's finer capture rate often justifies its modest cost premium over standard sand.
How Do You Size a Sand Filter for a Commercial Pool's Flow Rate?
Sand filter sizing is based on filtration area (square feet) matched against the system's required GPM, with industry standard practice for commercial aquatic facilities capping filtration rate at approximately 15 GPM/ft² under the older sizing convention, though manufacturers now often publish their own rated maximum for a given tank diameter and media depth. A pool requiring 83 GPM of circulation flow, for example, needs a minimum filtration area of roughly 5.5 ft² at the 15 GPM/ft² threshold — undersizing this area forces water through the media faster than it can properly filter, degrading water clarity even with an otherwise correctly sized pump.
What Do the Multiport Valve Positions Actually Do?
Commercial sand filters are operated through a 6-position multiport valve — Filter, Backwash, Rinse, Recirculate, Waste, and Closed — and understanding each position is essential to correct operation. Filter is the normal operating position; Backwash reverses flow to lift and clean the media bed; Rinse resettles the media and flushes any remaining debris to waste before returning to Filter mode; Recirculate bypasses the filter entirely for maintenance; and Waste routes water directly to drain, useful for rapidly lowering pool level. According to HUIQI Water Technology's engineering team, with 19 years of commercial pool project experience across 50+ countries, incorrect multiport valve sequencing — skipping the Rinse step after backwash — is one of the most common causes of cloudy water complaints immediately after a filter cleaning cycle.
Why Does Tank Material — FRP vs. Steel — Matter for Commercial Buyers?
Commercial sand filter tanks are typically constructed from either fiberglass-reinforced plastic (FRP) or steel, and the choice affects both longevity and pressure rating. FRP tanks resist corrosion completely and are standard for most commercial installations, particularly in coastal or high-humidity environments, while steel tanks — properly lined and coated — can offer higher pressure ratings for demanding applications. Commercial-grade tanks are typically rated for 50 PSI or higher working pressure; buyers should confirm the rated working pressure against their system's expected operating range, including pressure spikes during startup, rather than assuming all tanks in a given diameter share the same rating.
Is NSF/ANSI 50 Certification Necessary for Commercial Procurement?
Yes — NSF/ANSI 50 is the recognized North American certification standard for pool and spa filtration equipment, and most municipal and commercial project specifications require it as a baseline procurement condition. Per industry compliance practice, buyers should request NSF/ANSI 50 test documentation directly from the manufacturer rather than relying on generic "certified" claims on a spec sheet, since certification applies to specific tested models and configurations, not an entire product line by association.
How Does Filter Selection Affect Total System Design and Water Chemistry?
Filter media selection also interacts with the facility's disinfection strategy — finer media like glass reduces the particulate load that consumes free chlorine, which industry standard practice targets at 1.0-3.0 mg/L with pH maintained at 7.2-7.8 for public pools. A well-matched filter, pump, and disinfection system reduces overall chemical demand and operating cost, which is why filtration shouldn't be specified in isolation from the rest of the circulation system.
◆ HUIQI Water Technology Solution HUIQI's commercial pool filter series includes FRP and steel tank options with NSF/ANSI 50-certified media configurations, engineered for consistent flow distribution and 50+ PSI working pressure. With 19 years of commercial aquatic project experience and deployments across 50+ countries, our team provides turnkey supply, technical specification support, and OEM customization for pool contractors, hotel developers, and municipal buyers.
[View Commercial Pool Filters →] | [Request a Technical Quote →]
[View Commercial Pool Filters →] | [Request a Technical Quote →]
Frequently Asked Questions
Q: What is the difference between a sand filter and a cartridge filter for commercial pools?
A: Sand filters use a media bed and are cleaned by backwashing, while cartridge filters use pleated fabric elements that must be physically removed and rinsed or replaced. Commercial facilities generally favor sand or glass media filters because backwashing is faster and less labor-intensive at high flow volumes than cartridge servicing.
Q: How do I choose the right sand filter for a 20,000-gallon commercial pool?
A: Calculate required GPM from your turnover rate, then select a filter tank diameter whose filtration area meets that GPM at or below the manufacturer's rated GPM/ft². A 20,000-gallon pool on a 6-hour turnover requires roughly 56 GPM, which typically needs a tank in the 24-30 inch diameter range depending on media type.
Q: What does NSF/ANSI 50 certification mean for filter procurement?
A: NSF/ANSI 50 certification means the specific filter model has been independently tested and verified to meet North American pool and spa equipment safety and performance standards. Most municipal and commercial project specs require this documentation before a filter can be approved for installation.
Q: How often does a commercial sand filter need backwashing?
A: A commercial sand filter should be backwashed when pressure reads 8-10 PSI above the clean starting pressure, not on a fixed calendar schedule. High-bather-load facilities may need backwashing several times per week, while lower-traffic pools may go weeks between cycles.
Q: How much does upgrading to glass filter media save on backwash water?
A: Glass media typically reduces backwash water consumption by extending the interval between required backwash cycles due to its finer, more efficient particle capture. Exact savings vary by bather load and pool volume, but facilities report measurably fewer backwash cycles per month compared to standard sand.
Q: How long does a commercial sand filter tank last?
A: A properly maintained FRP commercial sand filter tank typically lasts 10-20 years, while the media itself should be replaced every 3-5 years even though the tank remains serviceable. Steel tanks require more attention to coating integrity to reach comparable lifespans.
Conclusion
Specifying a commercial pool sand filter correctly means matching filtration area to required GPM, selecting media suited to your water clarity and chemical-demand goals, and verifying NSF/ANSI 50 certification and tank pressure rating before ordering. For contractors and developers managing multi-site or international projects, working with a manufacturer that supplies both FRP and steel tank options with full technical documentation reduces both compliance risk and field callbacks. Request a Technical Consultation →
