Airport concourses, shopping mall atriums, and branded flagship entrances increasingly specify a "digital water curtain" without a clear picture of what's actually being purchased — a screen made of falling water, a projection surface, or a valve-driven display system. These are three different technologies with very different engineering requirements. This guide focuses specifically on true digital water curtains: valve-controlled fountains that form legible text and simple graphics from individually addressable falling water droplets. We'll cover how the pixel system works, what determines image resolution and legibility, and the control infrastructure required to run one reliably.

What Is a Digital Water Curtain Fountain, Exactly?

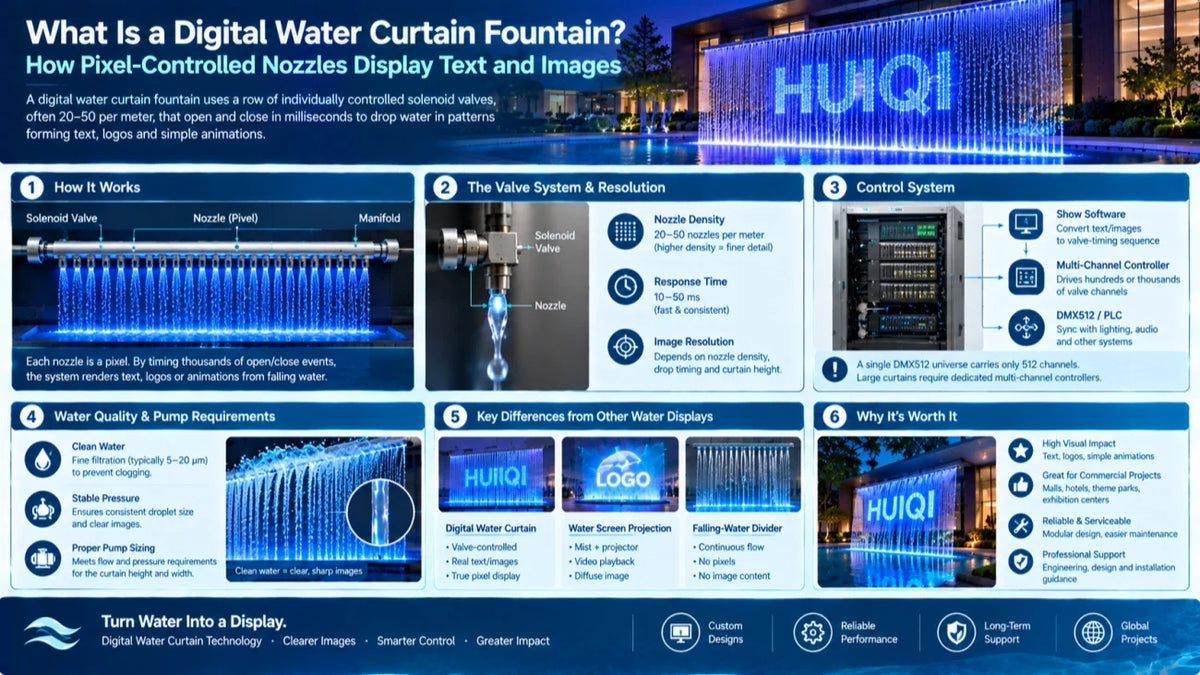

A digital water curtain fountain is a linear array of closely spaced nozzles, each fed by its own solenoid valve, mounted along a horizontal manifold above a collection basin. Each valve functions as a single "pixel" — opening briefly lets a short burst of water fall, closing blocks it — and by timing thousands of these open/close events across the full width of the curtain, the system renders scrolling text, logos, or basic animated graphics entirely out of falling water.

How Does the Valve System Create Readable Text and Images?

Image resolution in a digital water curtain is a direct function of nozzle density — how many valves are packed into each meter of curtain width. Commercial systems typically run 20–50 nozzles per meter. Legibility also depends on drop timing precision. Each solenoid valve needs a fast, consistent response time — commonly in the 10–50 millisecond range — so that the falling water forms a crisp edge rather than a blurred smear.

According to HuiQi Fountain's engineering team, with 19+ years of experience and 2,000+ projects delivered, taller drop heights (3–8 meters) provide more vertical space for character formation, significantly improving overall legibility for complex graphics.

Control Infrastructure: Beyond DMX512

A single DMX512 network carries only 512 channels. Since a 5-meter curtain with 30 nozzles/meter requires 150 channels, large architectural displays require purpose-built multi-channel curtain controllers. These controllers map thousands of channels from a show file to the valve array, and are typically bridged to a fountain PLC (Programmable Logic Controller) to manage safety interlocks like wind-triggered shutdown and water level monitoring.

Water Quality and System Maintenance

Because each nozzle orifice is small, digital water curtains are prone to clogging. Industry standard practice requires dedicated fine filtration (separate from the fountain’s main circulation circuit) ahead of the curtain manifold. Furthermore, stable manifold pressure is vital; a VFD-controlled pump must compensate for the rapid changes in flow demand as valves cycle open and closed.

Frequently Asked Questions

Q: How does a digital water curtain fountain display text?

A: Each nozzle is controlled by an independent solenoid valve acting as a pixel; synchronized timing across the array forms falling-water letters and graphics.

Q: How many nozzles are needed per meter?

A: Commercial systems typically use 20–50 nozzles per meter to achieve high-resolution, sharp text and graphics.

Q: Can I run this on a standard DMX controller?

A: Not directly. Standard DMX universes are too small for large arrays; specialized curtain controllers are needed to handle the high channel count, then bridged to your main fountain network.

Conclusion

A successful digital water curtain fountain depends on coordinated nozzle density, fast valve response, and pressure stability. Treating these as a single integrated design rather than separately sourced components is the key to a reliable, high-impact display. Request a Project Quote →
