How DMX Control Systems Work in Commercial Water Features (A Technical Explainer)

———————————————————————————————————————————————————————————

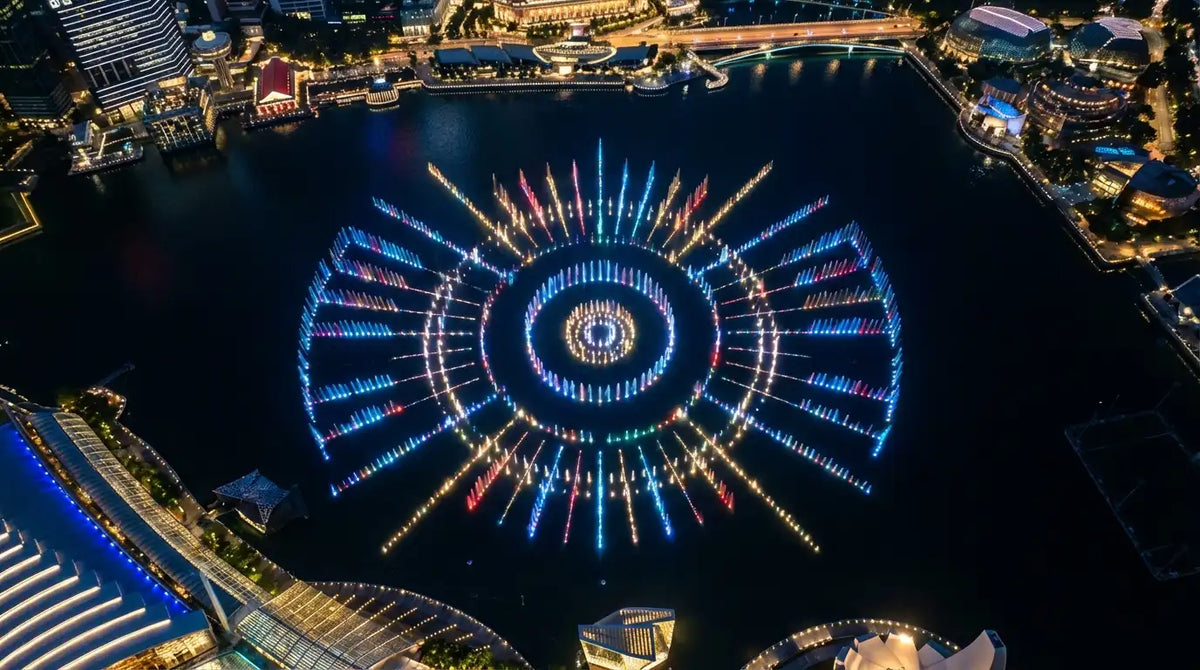

Walk past a world-class musical fountain and what you witness looks like magic. Water jets rise and fall in perfect time with a symphony. LED lights sweep through the color spectrum on every beat. Hundreds of individual nozzles behave as a single coordinated instrument. None of this happens by chance — and none of it is controlled by a single switch.

Behind every high-performance commercial water feature is a DMX control system: the digital nervous system that makes choreographed water possible. Understanding how DMX works — and how it differs from other control technologies — is essential knowledge for any architect, developer, or project owner commissioning a serious custom musical fountain installation.

This technical explainer breaks down DMX fountain control from the ground up: what it is, how it works, what it controls, how it differs from PLC control, and what it means for your fountain project's performance and long-term operation.

1. What Is DMX and Where Does It Come From?

The name DMX512 encodes both its technology and its capacity. 'DMX' stands for Digital Multiplex — a method of sending multiple control signals over a single cable. '512' refers to the maximum number of individually controllable channels in one DMX universe. A 'channel' is a single addressable parameter: one solenoid valve open/close state, one pump speed, or one RGB LED fixture's color and brightness.

Originally created by the United States Institute for Theatre Technology (USITT), the DMX512 protocol became a global industry standard because of one key attribute: it is fast. A full DMX universe of 512 channels can be refreshed up to 44 times per second — fast enough for real-time, frame-accurate synchronization with live audio. This refresh rate, combined with the protocol's open standardization, made DMX the natural choice when fountain engineers needed a control system capable of matching water movement to music.

Today, DMX512 is the backbone of virtually every professional musical fountain installation worldwide, used alongside the ANSI E1.11 standard that governs its technical specifications.

2. How Does a DMX Fountain Control System Work?

A DMX fountain control system operates as a chain of three interconnected components: the controller, the network, and the devices.

2.1 The DMX Controller

The DMX controller is the brain of the system. It is either a dedicated hardware console (a physical desk with faders, buttons, and a display) or — in most modern fountain installations — a software platform running on a ruggedized industrial computer. The controller stores the show programming: the precise timeline of every water movement and lighting change across the entire performance, mapped to a specific point in the audio track.

During a show, the controller reads the timeline in real time and generates a continuous stream of DMX data. This data stream is transmitted across the DMX network to every connected device. The controller also manages show scheduling — deciding when shows run, for how long, and which show to play — and provides operators with an interface for manual control, emergency override, and system monitoring.

2.2 The DMX Network

The DMX signal travels from the controller through standard DMX cables (typically 5-pin XLR connectors in professional installations) to the devices. Because DMX is a serial daisy-chain protocol, each device passes the signal along to the next in the chain. The maximum cable run without a signal booster is approximately 300 meters, after which a DMX signal splitter or repeater is required to maintain signal integrity.

In large commercial fountain installations — where the control room may be 100 meters or more from the furthest nozzle — DMX-over-Ethernet (using protocols such as Art-Net or sACN) is commonly used to extend DMX control across a standard network infrastructure, before converting back to standard DMX at local distribution nodes near the fountain equipment.

2.3 The DMX Devices (Fixtures)

Every device connected to the DMX network is assigned a unique start address — its unique identifier within the system. When the controller sends a data stream, each device reads only the channels corresponding to its own address and ignores all others. This addressing system is what allows a single DMX controller to manage hundreds of completely independent devices simultaneously.

In a fountain, DMX-addressable devices include solenoid valves (which open and close individual nozzles), Variable Frequency Drives or VFDs (which control commercial submersible pump motor speed to raise or lower jet heights), LED fixture drivers (which set RGB color and brightness), and motorized nozzle head actuators (which control the rotation angle of dynamic swing nozzles).

3. What Does DMX Actually Control in a Fountain?

Understanding what DMX controls — and how precisely it controls it — is key to appreciating why DMX became the industry standard for professional fountain systems.

The critical insight from this table is the resolution column. DMX does not simply turn things on and off — it provides 256 discrete values (0 to 255) for every continuous parameter. This means a pump can be set to exactly 34% speed, or an LED can be set to precisely the shade of amber that appears on a specific musical beat. This granularity is what distinguishes a DMX-controlled fountain from a simple timer-based fountain: the difference between a fountain that performs and a fountain that merely operates.

4. How Is a Fountain Water Show Programmed Using DMX?

4.1 The Programming Process Step by Step

• Step 1 — Music import: The audio file is loaded into the fountain control software. The software analyzes and displays the audio waveform as a horizontal timeline.
• Step 2 — Beat mapping: The programmer identifies the key musical moments — downbeats, phrase starts, crescendos, tempo changes — and marks them on the timeline as reference points.
• Step 3 — Cue placement: For each key moment, the programmer places DMX cues on the timeline specifying the exact channel values to send. A single cue might simultaneously open 40 nozzle valves, ramp 6 pump speeds to 80%, and shift 200 LED fixtures to deep blue.
• Step 4 — Transition programming: Between cues, the software generates smooth interpolated transitions — a pump doesn't jump from 20% to 80%, it ramps smoothly over 800 milliseconds, creating a natural rise.
• Step 5 — Simulation and preview: Modern control platforms allow the programmer to simulate the full show visually before any water moves, making revisions possible without physical fountain access.
• Step 6 — Upload and test: The show file is uploaded to the controller. The show is run on the fountain for the first time, and refinements are made based on real-world conditions — ambient light, wind, and viewing angle all affect the final result.

4.2 How Many Cues Does a Typical Show Contain?

A professionally programmed 5-minute water show typically contains between 500 and 2,000 individual timed cues — roughly 2 to 7 cues per second. Each cue can simultaneously update dozens to hundreds of DMX channels. A 10-minute grand show for a major landmark installation might contain 5,000 or more cues and involve the coordination of 300+ individually addressable devices.

This level of complexity is why professional fountain show programming is a specialist skill. An experienced fountain programmer combines musical understanding, lighting design knowledge, and water hydraulics expertise to create shows that feel emotionally coherent — not merely technically correct. To see how these complex programmed cues come to life, explore examples of our musical fountain water show projects.

5. DMX vs. PLC: Understanding the Two Control Layers

A question that frequently arises in fountain project specification is: should the control system use DMX, PLC, or both? The answer for any serious commercial installation is: both — because DMX and PLC serve fundamentally different functions that are complementary, not competing.

5.1 Why DMX Alone Is Not Enough

DMX is an exceptional tool for artistic control, but it is not designed for operational safety. It has no built-in fault detection, no water level monitoring, no automated response to equipment failures, and no inherent protection against pump cavitation or electrical faults. If the fountain basin runs dry due to an evaporation or leak event, a DMX system will continue running its show — potentially destroying submersible pumps that are running without water.

This is why every professionally designed commercial fountain uses a PLC running in parallel with the DMX system. The PLC monitors all operational parameters and is programmed to trigger safety shutdowns — stopping all equipment within seconds — when any parameter falls outside its safe operating range. The DMX system handles the artistry; the PLC keeps the infrastructure safe.

5.2 How DMX and PLC Work Together

In a properly integrated system, the PLC and DMX controller communicate with each other. When the wind sensor reports wind speed above the programmed threshold, the PLC sends a signal to the DMX controller, which responds by either automatically reducing all jet heights to a safe level or executing a controlled shutdown sequence — rather than a hard stop that could create pressure surges in the pipework.

This integration creates a control system that is both artistically capable and operationally robust — the two qualities that define a professional-grade fountain installation. HuiQi Fountain supplies IP68 fountain LED lights designed for full DMX512 addressability.

6. DMX Universes and Scaling Large Fountain Installations

A single DMX universe provides 512 channels. For small to medium fountains — up to approximately 50 individually controlled nozzles with RGB LED lighting — a single universe is often sufficient. For larger installations, multiple DMX universes are required.

A large landmark fountain — such as those found at major urban waterfronts, resort developments, or theme parks — may require 10 to 30 or more DMX universes to control every device independently. Modern control systems use network-based DMX protocols (Art-Net or sACN) to manage multiple universes simultaneously across a standard Ethernet network infrastructure.

6.1 How Are DMX Universes Scaled?

Each DMX universe is a separate data stream of 512 channels. To scale, the control software manages multiple universe streams simultaneously — each carrying the control data for a different group of devices. A fountain with 200 solenoid valves, 200 LED fixtures (requiring 3 channels each = 600 channels), and 20 VFD-controlled pumps would require approximately 4 to 6 DMX universes in total.

Universe management is handled automatically by modern fountain control software. The programmer simply assigns each device to a universe and address without needing to manually calculate data load distributions.

6.2 Redundancy and Failover

For mission-critical installations — fountains at major commercial developments, airports, or permanent public landmarks — DMX control systems are commonly configured with hot-standby redundancy. A secondary controller runs in parallel, monitoring the primary controller's output. If the primary controller fails mid-show, the secondary takes over within milliseconds, with no perceptible interruption to the performance.

Redundant DMX cabling — running two independent cable paths between the controller and each device group — is also specified for high-availability installations, protecting against a single cable fault taking down an entire section of the fountain.

7. What to Look for in a Commercial Fountain DMX Control System

Not all fountain control systems are equal. When evaluating a DMX control system for a commercial fountain project, these are the key specification criteria:

• Universe capacity: How many DMX universes can the system manage simultaneously? Small systems handle 2–4; professional systems handle 16–64+.
• Refresh rate: Does the system support full 44Hz DMX refresh for smooth, flicker-free LED transitions and tight musical synchronization?
• Timeline resolution: What is the minimum cue interval? Professional systems support cue placement to individual audio frames (< 23ms).
• Show library capacity: How many shows can be stored and recalled? Professional systems store 50+ shows.
• Audio synchronization method: Does the system support SMPTE timecode or internal audio analysis for precise music sync?
• PLC integration: Does the control system have a documented integration interface with the PLC infrastructure system?
• Remote monitoring: Does the system support remote access for fault diagnosis and show updates without on-site attendance?
• Touchscreen operator interface: Is there a simplified operator interface for non-technical staff to schedule and select shows?
• Failover and redundancy: Are primary/backup controller configurations supported?
• Software support and updates: Does the manufacturer provide ongoing software updates and technical support?

8. Frequently Asked Questions About DMX Fountain Control

What does DMX stand for in fountain control?

DMX stands for Digital Multiplex. In fountain applications, it refers specifically to the DMX512 protocol — a standardized digital communication system that controls up to 512 individually addressable devices (nozzles, pumps, LED lights) in a single data stream refreshed up to 44 times per second.

How many devices can one DMX controller manage?

A single DMX universe controls 512 channels. Each device requires one or more channels depending on its complexity (a simple on/off valve uses 1 channel; an RGB LED fixture uses 3 channels). A single controller managing multiple DMX universes via Art-Net can control thousands of devices simultaneously. Large landmark fountains may involve 10 to 30+ universes managing 500 to 2,000+ individual devices.

Is DMX the same as a fountain timer system?

No — DMX is fundamentally different from a simple fountain timer. A timer can only trigger pre-set on/off sequences at scheduled times. DMX provides real-time, continuously variable control of every parameter (pump speed, valve position, LED color, brightness) with millisecond timing precision. DMX enables music-synchronized choreography; a timer system can only run repetitive fixed sequences.

Do all commercial fountains use DMX?

Not all, but all professional musical fountains and most high-specification commercial water features do. Simple decorative fountains running fixed non-choreographed patterns may use simpler control systems (programmable timers or basic relay controllers). Any fountain intended to deliver music-synchronized shows, dynamic water patterns, or individually addressable lighting requires DMX control.

How long does it take to program a fountain show using DMX?

A professional 5-minute fountain show takes an experienced programmer approximately 20 to 60 hours to create, depending on the complexity of the fountain and the level of detail required. A major 10-minute landmark show with hundreds of devices and complex choreography may require 100 to 200 programming hours. Testing, refinement, and on-site adjustment add additional time to the total programming investment.

Conclusion

DMX is the language that commercial water features speak. Understanding it — its architecture, its capabilities, its relationship with PLC infrastructure, and its role in the creative process of show programming — gives project owners, architects, and developers the vocabulary to specify fountain control systems intelligently and evaluate supplier proposals with confidence.

The difference between a fountain that simply runs and a fountain that genuinely performs comes down to control system quality. A properly specified DMX system, integrated with robust PLC infrastructure, operated by experienced show programmers, is what transforms a collection of pumps and nozzles into a coordinated, emotionally engaging water performance.

If you are planning a commercial fountain project and want to understand how the control system will work before signing a specification, HuiQi Fountain's engineering team is available to walk you through system architecture, show programming capability, and control integration as part of our pre-project consultation process.
