Voltage drop is the most common cause of uneven fountain lighting in commercial installations. The symptom is always the same: fixtures nearest the transformer are bright and correctly colored; fixtures at the far end of the cable run are dim, color-shifted, or flickering. The effect looks like a fixture quality problem but is almost always an electrical design problem — specifically, a cable that is too thin, too long, or running too many fixtures at too low a voltage.

The failure is preventable with a voltage drop calculation performed at the electrical design stage — before the conduit is laid, before the cable is pulled, and before the basin is filled. After installation, correcting voltage drop means excavating conduit runs, replacing cable, or rerouting power — all of which are orders of magnitude more expensive than specifying correctly the first time.

This guide provides the complete electrical engineering framework for eliminating voltage drop in commercial single-color fountain lighting systems: the voltage drop formula with a worked example, wire gauge selection tables, a 12V versus 24V comparison, wiring topology options, transformer sizing rules, and a troubleshooting guide for existing installations.

What Causes Voltage Drop in Fountain Lighting Systems and Why Is It Damaging?

Voltage drop occurs because copper wire has electrical resistance. When current flows through a wire, the resistance of the wire converts some of the electrical energy into heat, reducing the voltage available at the load (the fixture) compared to the voltage at the source (the transformer). The longer the wire, the thinner the wire, and the higher the current, the greater the voltage drop.

In a fountain lighting system, voltage drop causes three distinct failure modes:

Brightness reduction: LED drivers operate within a rated input voltage range. Below the minimum input voltage, the driver cannot maintain rated current to the LED chip, and the chip produces less light. A 10% voltage drop typically produces a 15-20% reduction in perceived brightness — visible to the naked eye and noticeable to clients.

Color shift: LED drivers operating below rated current produce a slightly different color temperature than the specified CCT. In practice, this means warm white fixtures at low voltage appear slightly warmer (lower CCT); cool white fixtures appear slightly warmer as well. In a daisy-chain installation where the first fixtures run at full voltage and the last fixtures run at 85-90% voltage, the color difference between the first and last fixture in the chain is visible at commissioning.

Flickering and driver shutdown: In severe voltage drop cases, the fixture's driver reaches its minimum input voltage threshold and begins cycling on and off or shuts down completely. This produces visible flickering and, in worst cases, complete fixture failure in distant positions.

According to HuiQi Fountain's engineering team, with 19 years of installation experience across 50+ countries, voltage drop is responsible for the majority of post-commissioning lighting complaints in commercial fountain projects — and almost all of them are traceable to daisy-chain wiring at 12V with undersized cable over runs exceeding 15-20 meters.

For HQ-T Series fountain lights operating on AC12V-24V dual-voltage input, selecting the 24V operating mode for long-run installations eliminates the most common voltage drop failures. See the full HQ-T Series product specifications for input voltage range and driver specifications.

How Do You Calculate Voltage Drop for a Fountain Lighting Cable Run?

Voltage drop in a DC or single-phase AC low-voltage system is calculated using the following formula, which accounts for the two-way cable length (current travels to the fixture and returns through the neutral conductor):

The acceptable voltage drop limit for fountain lighting is generally taken as 10% of system voltage — 1.2V for a 12V system, 2.4V for a 24V system. Some premium specifications tighten this to 5% for high-visual-quality installations where color consistency across all fixtures is critical.

Key insight from the formula: Doubling the system voltage from 12V to 24V halves the current (I) for the same wattage load. Because voltage drop depends on I squared relative to cable resistance, halving the current reduces voltage drop by approximately 75% over the same cable run and wire gauge. This is why 24V is the professional standard for commercial fountain lighting runs exceeding 15-20 meters.

Worked Example: Hotel Plaza Fountain with 12 Fixtures at 30 Meters

A hotel plaza fountain has 12 fixtures at 6W each (72W total) on a single cable run 30 meters long. The designer is choosing between 12V and 24V with 14 AWG cable (resistance: 8.29 Ω per 1000 m):

This worked example illustrates why switching from 12V to 24V is often the single most effective intervention for eliminating voltage drop in commercial fountain installations — without changing the cable gauge, the run length, or the fixture count.

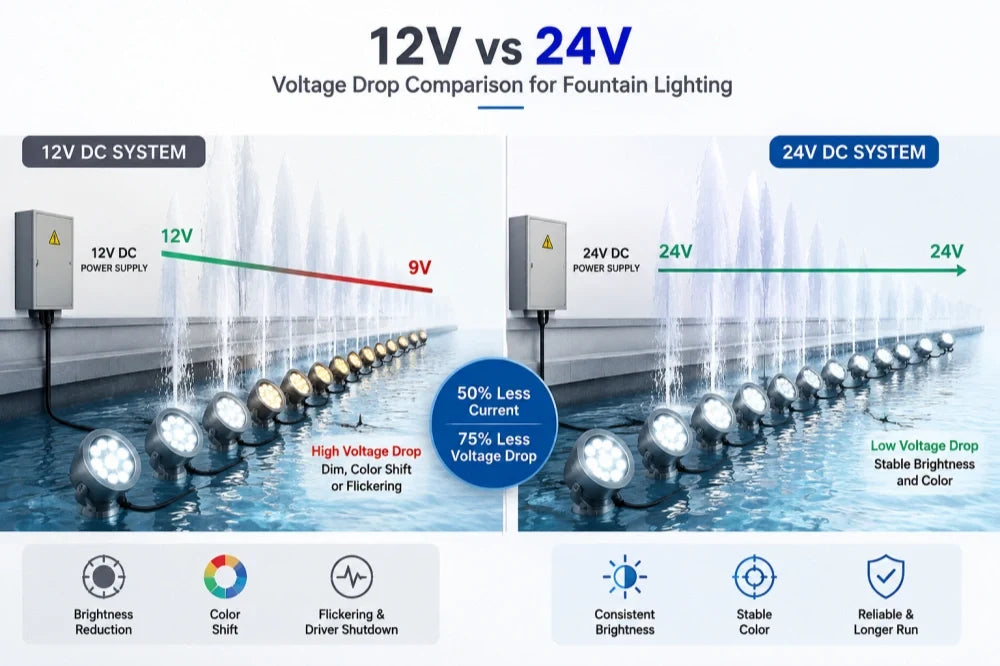

Why Is 24V DC the Professional Standard for Commercial Fountain Lighting Runs?

The 12V versus 24V choice for fountain lighting is not primarily a safety decision — both voltages are within the SELV (Safety Extra-Low Voltage) range defined by IEC 60364-7-702 and NEC Article 680 for Zone 0 (permanently submerged equipment). The choice is an electrical efficiency decision, and the engineering case for 24V in commercial applications is overwhelming.

The cable cost saving from 24V is often the most persuasive argument for commercial procurement: a 24V system with 14 AWG cable replacing a 12V system that would require 10 AWG cable reduces cable cost per meter by approximately 30-40%, while the higher-quality result (consistent brightness and color across all fixture positions) comes at zero additional fixture cost, because most commercial fountain lights support both 12V and 24V input.

Industry standard practice, as applied in commercial fountain engineering globally, specifies 24V DC for all commercial fountain lighting runs exceeding 15 meters from transformer to furthest fixture — and 12V only for short-run residential and garden feature applications where the total cable run from transformer to the most distant fixture is less than 15 meters.

Pump infrastructure also interacts with fountain lighting electrical design. Equipment vaults housing transformers and pump controllers are typically 20-50 meters from the fountain nozzle grid in large commercial plaza installations — a distance that effectively mandates 24V for any commercial specification. See our commercial fountain pump and equipment systems to understand how vault-to-basin distances affect transformer placement and cable run calculations.

Which Wire Gauge Should You Specify for Different Commercial Fountain Run Lengths?

Wire gauge selection follows directly from the voltage drop calculation: for a given system voltage, total load, and cable run length, the wire gauge must be large enough to keep voltage drop within the 10% acceptable limit. The following table provides maximum run lengths for common commercial wire gauges at a 100W total load — scale proportionally for different load values.

These figures assume a daisy-chain (series) wiring topology where all load is treated as concentrated at the midpoint of the run. For star (home-run) topologies where each fixture or zone runs directly from the transformer, the maximum run lengths in the table can be used directly for each individual run.

Adjusting Wire Gauge for Different Loads

The maximum run length in the table is inversely proportional to the load: if the load is 50W instead of 100W, the maximum run is doubled. If the load is 200W, the maximum run is halved. For a quick field estimate: multiply the table figure by (100 / actual load in watts) to get the maximum run at any load.

According to HuiQi Fountain's engineering team, the most common wire gauge error in commercial fountain electrical design is using 14 AWG (the minimum size that feels substantial to installers) for runs that require 12 AWG or 10 AWG. The visual difference at commissioning is always apparent when this error is made — and the only fix is to replace the undersized cable.

For the full range of commercial fountain lighting options — including single-color, RGB, and RGBW configurations with 24V input specifications — see HuiQi's complete commercial fountain lighting range to verify input voltage range and wattage per fixture before finalizing the voltage drop calculation.

How Does Wiring Topology Affect Voltage Drop in Commercial Fountain Systems?

Wiring topology — the physical arrangement of how cables connect fixtures to the transformer — is the second major lever for controlling voltage drop after wire gauge and system voltage. The same total load, cable gauge, and system voltage can produce very different voltage drop results depending on whether a daisy-chain, star, or hybrid topology is used.

The Hybrid Zone-Star Topology: Best Practice for Commercial Plazas

For large commercial plaza fountain installations with 20-100 nozzle positions, the hybrid zone-star topology is the professional standard. The transformer feeds 3-5 zone junction boxes (or power distribution points) distributed around the fountain basin perimeter, with each zone box handling the load for 6-15 fixtures via shorter daisy-chain runs within each zone. This topology provides:

Equal voltage at all zone inputs: Each zone receives power directly from the transformer via a dedicated run sized for that zone's total load, eliminating the cumulative voltage drop of a single long daisy chain.

Manageable daisy-chain lengths within zones: With zone inputs distributed around the basin, no individual daisy-chain segment exceeds 8-12 meters — a distance that keeps voltage drop within acceptable limits at 24V with 14-16 AWG cable.

Reduced total cable quantity: Compared to a full star topology where every fixture has its own dedicated cable run, the hybrid topology reduces total cable by 40-60% while still maintaining voltage consistency across the installation.

For real-world examples of how zone-star topology has been applied in large-scale commercial plaza musical fountain installations, review HuiQi's completed commercial fountain project portfolio, which includes electrical layout documentation for installations across 50+ countries.

How Do You Size and Specify the Transformer for a Commercial Fountain Lighting System?

Transformer sizing is the final parameter in the fountain lighting electrical design after system voltage, wire gauge, and topology have been determined. Undersized transformers cause voltage sag under full load — which produces the same visible symptoms as cable voltage drop — and premature transformer failure from thermal overload.

The 80% Rule for Transformer Loading

Industry standard practice specifies that transformers should be loaded to a maximum of 80% of their rated VA capacity. This 80% rule accounts for inrush current (the brief surge of current when fixtures first energize), thermal derating at high ambient temperatures, and future load additions.

For a fountain installation with 100W total connected load: specify a minimum 125 VA transformer (100W / 0.80 = 125 VA). For a 500W installation: 625 VA minimum. Most commercial fountain transformer ranges are available in standard sizes (300 VA, 600 VA, 1000 VA, 1500 VA); always round up to the next available size above the minimum calculated value.

UL 379 Certification and Isolation Requirements

Per NEC Article 680 (North America), pool and fountain transformers must be UL 379 listed — a specific safety standard for transformers supplying power to underwater luminaires. The transformer must have an isolated secondary winding, providing galvanic isolation between the line-voltage primary and the low-voltage secondary. This isolation prevents primary-side faults (which could be lethal at 120V or 240V) from reaching the water zone.

For international projects, the equivalent certification is per IEC 61558-2-6 (safety isolating transformers for general use). Standard landscape transformers without this specific certification are not code-compliant for fountain applications and should be rejected from specification.

For large musical fountain installations where lighting power infrastructure must coordinate with pump control, VFD systems, and DMX show controllers, transformer placement and electrical routing require integration with the overall show control design. See our musical fountain engineering and system integration service for how power and control infrastructure is coordinated across complex commercial fountain systems.

How Do You Diagnose and Fix Voltage Drop in an Existing Fountain Installation?

For existing installations where voltage drop symptoms have appeared post-commissioning, the following troubleshooting table provides the diagnostic and remediation approach for each failure mode:

The key diagnostic tool is a multimeter capable of measuring voltage under load. Measure voltage at the transformer secondary terminals and at the last fixture's input terminals with all fixtures energized. The difference is the actual voltage drop. If it exceeds 10% of the source voltage, cable remediation is required.

Short-term remediation without cable replacement is possible in some cases by redistributing load: if the daisy chain has 12 fixtures and the last 6 are exhibiting drop symptoms, moving half the load to a new cable run from the transformer can restore acceptable voltage at all positions without excavating the existing conduit.

Frequently Asked Questions

Q: What is voltage drop in fountain lighting and why does it matter?

A: Voltage drop is the reduction in voltage at fixtures distant from the transformer, caused by resistance in the cable. In fountain lighting, it produces dim, color-shifted, or flickering fixtures at the far end of the cable run. A 10% voltage drop — the acceptable limit — causes approximately 15-20% visible brightness reduction at the affected fixtures.

Q: Should I use 12V or 24V for commercial fountain lighting?

A: Use 24V DC for commercial fountain lighting runs exceeding 15 meters from transformer to furthest fixture. At 24V, current is halved compared to 12V at the same wattage, reducing voltage drop by approximately 75% over the same cable. This allows the use of thinner cable gauges and longer runs while maintaining brightness consistency across all fixtures.

Q: What wire gauge do I need for a 30-meter commercial fountain cable run at 24V?

A: For a 30-meter run at 24V with 100W total load, 14 AWG cable produces approximately 6.2% voltage drop — within the 10% acceptable limit. For heavier loads (200W+) at 30 meters, upgrade to 12 AWG. Always verify using the formula: VD = (2 × L × I × R) / 1000, with R from the conductor resistance table for the selected AWG.

Q: Can I mix 12V and 24V fixtures in the same fountain installation?

A: No. Mixing 12V and 24V fixtures on the same transformer output will damage one set of fixtures: 12V fixtures will be overpowered on a 24V circuit; 24V fixtures will be underpowered on a 12V circuit. If a project requires both voltages, use separate transformers and separate cable runs for each voltage zone.

Q: What is the 80% rule for fountain lighting transformers?

A: The 80% rule specifies that transformers should be loaded to a maximum of 80% of their rated VA capacity. This accounts for inrush current, thermal derating, and future load additions. For a 100W fountain installation, specify a minimum 125 VA transformer. For 500W, specify a minimum 625 VA transformer.

Q: What electrical safety standard governs fountain lighting transformers?

A: In North America, fountain and pool lighting transformers must be UL 379 listed per NEC Article 680. Internationally, IEC 61558-2-6 applies. Both standards require a safety-isolated secondary winding that provides galvanic isolation between the line-voltage primary and the low-voltage output. Standard landscape transformers without these specific certifications are not code-compliant for fountain applications.

Q: How do I fix voltage drop in an existing fountain installation without replacing all the cable?

A: First, measure actual voltage at the last fixture under full load using a multimeter. If drop exceeds 10%, the quickest fix is load redistribution: add a second cable run from the transformer to a mid-point on the existing daisy chain, splitting the load between two runs. This halves the effective run length and typically brings voltage drop within acceptable limits without excavating existing conduit.

Conclusion

Voltage drop in commercial fountain lighting is an engineering problem with a straightforward solution: design the electrical system before specifying the cable, not after. The three decisions that eliminate voltage drop before installation are: specify 24V DC for any run exceeding 15 meters (which reduces VD by 75% compared to 12V at the same cable gauge); calculate wire gauge using the VD formula for every run in the installation; and apply the 80% loading rule when sizing transformers.

The most expensive approach to voltage drop is ignoring it in the design phase and correcting it post-commissioning — which requires excavating conduit runs, replacing cable, and in some cases rerouting power distribution infrastructure. The voltage drop calculation takes less than 30 minutes at the design stage and prevents all of this.

For voltage drop calculations, wire gauge schedules, transformer sizing, and complete electrical layout design for your next commercial fountain lighting project, contact the HuiQi Fountain engineering team. Our team provides full electrical specification support within 24 hours at no charge.
