Fountain ring light specifications that look correct on paper fail visibly at commissioning for one of three reasons: the aperture does not fit the nozzle riser, the wattage is insufficient for the jet height, or the beam angle was selected for the wrong water pattern type. All three errors are preventable — but only if the sizing process starts from the hydraulic schedule rather than from a product catalog.

The ring light sizing process is not complicated, but it is sequential. Aperture size must be confirmed first, from the actual riser outer diameter measurement — not from the nominal nozzle bore. Wattage is then calculated from jet height, adjusted for whether the jet is laminar or aerated. Beam angle is selected last, based on the nozzle pattern type. Housing material is determined by water chemistry, not aesthetic preference.

This guide provides complete sizing tables for each parameter, explains the engineering logic behind each recommendation, and defines the common errors that cause expensive retrofitting after the basin is filled. A master reference table at the end of the wattage section consolidates all parameters by application type for direct use in specification documents.



How Do You Size the Center Aperture of a Fountain Ring Light to the Nozzle?

The center aperture of a ring light must fit over the nozzle riser pipe without gaps large enough to allow the fixture to shift laterally during operation, but with enough clearance for installation and removal without tools. The sizing target is typically 3-5 mm of clearance over the actual riser outer diameter — enough to slide the fixture on and off, but tight enough to maintain coaxial alignment under normal flow conditions.

The critical measurement is the riser outer diameter (OD) — not the nominal nozzle size and not the bore inner diameter (ID). A nominal 1.5-inch nozzle, for example, has a bore ID of approximately 38 mm but a riser pipe OD of 48-50 mm depending on pipe schedule and thread type. A ring light specified at 40 mm aperture for a "1.5-inch nozzle" will not fit the riser pipe.

According to HuiQi Fountain's engineering team, with 19 years of installation experience across 50+ countries, specifying ring light aperture from nominal nozzle size rather than actual riser OD is the single most common aperture specification error across commercial fountain projects — and the most frustrating, because it is discovered at installation rather than at design review.

Aperture Quick-Reference by Nozzle Size

The following table provides typical riser OD measurements for standard commercial nozzle sizes and the recommended ring light aperture for each:

Nominal Nozzle Size	Typical Riser OD	Recommended Aperture	Notes
3/4 inch	26–27 mm	27–30 mm	Residential bubblers and basalt columns
1 inch	32–33 mm	33–38 mm	Small decorative pond features
1.5 inch	48–50 mm	50–55 mm	Standard hotel and commercial nozzle risers
2 inch	60–63 mm	63–68 mm	High-flow commercial and geyser nozzle assemblies
2.5 inch	75–76 mm	76–82 mm	Large-bore civic fountain geysers
Custom / cluster nozzle	Varies	Confirm from hydraulic schedule	Always measure riser OD, not bore ID



For cluster nozzle assemblies — where multiple nozzles are grouped on a single riser manifold — measure the overall assembly OD at the point where the ring light will be installed. Some cluster assemblies require custom-aperture ring lights or a ring light frame bracket rather than a center-aperture fixture. Confirm the assembly cross-section from the hydraulic schedule before specifying aperture size.

The nozzle type also determines whether the ring light should be center-aperture mounted or bracket-mounted to the basin floor beside the nozzle. For non-standard nozzle assemblies where center-aperture mounting is impractical, see our commercial fountain nozzle range to review mounting compatibility across different nozzle head types.



Which Wattage Should You Specify for a Fountain Ring Light at Different Jet Heights?

Wattage selection for ring lights is determined primarily by jet height and secondarily by whether the jet is laminar (smooth, non-aerated) or aerated (turbulent, foam-containing). The relationship is not linear: light intensity inside a water column decreases exponentially with height due to Beer-Lambert absorption — approximately 25% loss per meter in clear fountain water. This means a jet twice as tall requires significantly more than twice the wattage for equivalent top-of-column illumination.

A second factor that affects wattage selection is the total internal reflection (TIR) efficiency of the jet. Laminar jets, with their smooth water-air interface, provide a highly efficient TIR waveguide — light travels the full column height with minimal scatter loss. Aerated jets scatter light through air bubbles, which both reduces TIR efficiency and distributes light outward through the column walls. For equivalent visual impact, aerated jets require approximately 30-40% higher wattage than laminar jets of the same height.

Wattage by Jet Height Reference Table

Jet Height	Min Wattage (Laminar)	Min Wattage (Aerated)	Engineering Note
0.5 m	2.4W	3W	Even residential fixtures sufficient
1 m	6W	9W	Standard garden / courtyard specification
2 m	9W	12W	Entry-level commercial minimum
3 m	12W	18W	Most common commercial hotel spec range
4 m	18W	24W	Resort and landmark installations
5 m	24W	30W	Large civic plaza fountains
6 m +	30W-40W	40W+	Municipal geysers; confirm with photometric calc



These wattage figures are minimums for acceptable commercial commissioning — a result that will satisfy a client at handover. For premium installations (luxury hotels, landmark civic fountains, resort show fountains where visual impact is a primary design intent), apply a 20-30% wattage premium above the minimum figures in the table.

Pump pressure and VFD-controlled flow rate at each nozzle position affect jet height and therefore wattage requirements. If the show program includes jet height variations — lower jets during ambient operation, full height during show sequences — wattage must be specified for the maximum jet height in the program. See our commercial fountain pump and VFD systems to understand how pump output parameters map to the jet height specifications in this wattage table.

What Is the Complete Sizing Reference for Commercial Fountain Ring Lights by Application?

The following master sizing table consolidates all four specification parameters — wattage, aperture, beam angle, and housing material — by application type. Use this table as the starting point for the lighting specification schedule, then verify each parameter against the actual hydraulic schedule for your project:

Application	Jet Height	Wattage	Aperture (OD)	Beam Angle	Housing
Residential pond / basalt	Up to 1 m	2.4W–6W	27–42 mm	45–60 deg	304 SS / Brass
Small hotel courtyard	1–2 m	6W–9W	42–50 mm	35–45 deg	304 SS
Commercial plaza (mid)	2–4 m	12W–18W	50–57 mm	25–40 deg	304 SS
Resort / landmark show	4–6 m	18W–27W	57–65 mm	20–30 deg	304 SS or 316L
Municipal / civic geyser	Above 6 m	27W–40W	65 mm+	15–25 deg	316L SS
Dry-deck interactive plaza	Floor level	12W–18W (flush)	N/A — recessed	Wide 60 deg+	316L SS + IK10



Industry standard practice, as applied in commercial fountain engineering globally, is to complete the hydraulic schedule — defining nozzle type, riser diameter, flow rate, and maximum jet height at every nozzle position — before finalizing the ring light specification. Specifying ring lights before the hydraulic schedule is complete produces aperture and wattage errors that are time-consuming to correct.

For reference on how these sizing parameters translate across different project scales and venue types in real commercial installations, review HuiQi's completed fountain project portfolio, which documents ring light deployments across hotel entrance features, civic plaza shows, and resort water features across 50+ countries.

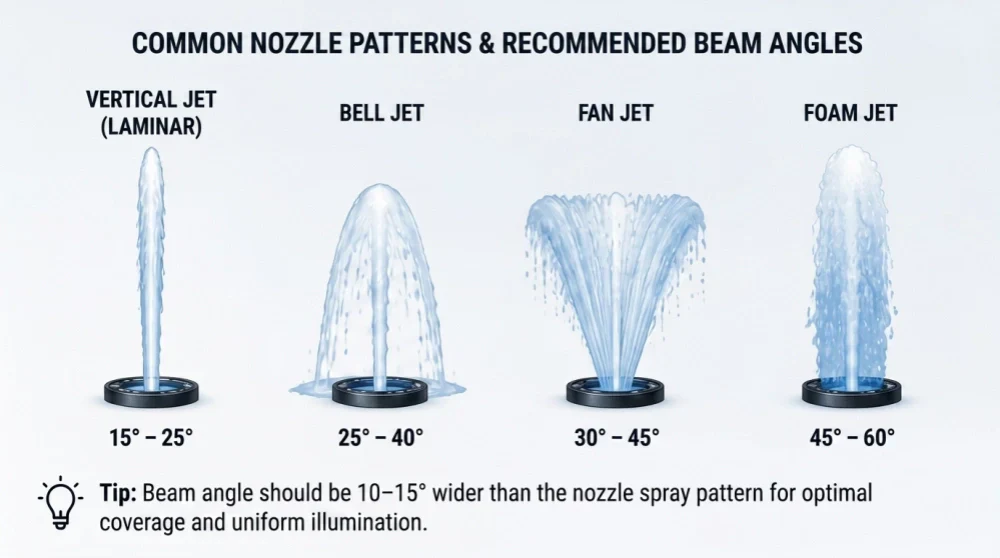

How Do You Match Beam Angle to Nozzle Pattern Type?

Beam angle is the most frequently under-specified parameter in ring light procurement — often defaulting to a "standard" value from the manufacturer's catalog rather than being matched to the water pattern at each nozzle position. The correct beam angle is determined by the water pattern type, not by wattage or jet height.

Narrow Beam (15-30 Degrees): Laminar and Geyser Jets

Narrow beam angles concentrate light into the core of the water column, where the smooth water-air interface of a laminar or geyser jet provides the most efficient total internal reflection path. Light entering at angles well below the 48.6-degree TIR critical angle for water travels the full column height with minimal scatter loss. Narrow beam rings lights at 15-30 degrees produce the sharp, glass-like glowing column effect that is visually distinctive in luxury hotel and high-end resort fountain installations.

Medium Beam (30-45 Degrees): Fan and Tulip Jets

Medium beam angles are appropriate for fan nozzles, tulip nozzles, and other spread patterns where the water exits at an angle from vertical. The wider beam covers the full spread angle of the jet while still maintaining enough concentration for visible column illumination. Most mid-scale commercial plaza fountain specifications fall in this range.

Wide Beam (45-60 Degrees or More): Mushroom, Bubbler, and Spread Nozzles

Wide beam angles are used for low-pressure nozzle types that produce a horizontal spread pattern — mushroom nozzles, dome nozzles, and bubblers where the visual effect is a broad, low water feature rather than a vertical jet. In these applications, the ring light is used for general basin illumination rather than column TIR coupling, and TIR efficiency is a secondary consideration.

For musical fountain show installations where different nozzle zones use different jet types — a common configuration in large-scale shows that cycle between geyser sequences, fan jet sequences, and ambient bubblers — beam angle must be specified per nozzle position, not per installation. See how beam angle specification integrates with full show programming in our musical fountain design and engineering service.

Which Housing Material and IP Rating Should You Specify for Different Fountain Environments?

Housing material selection is driven entirely by water chemistry — specifically chloride concentration and water treatment method. Using the wrong housing grade is not a minor quality issue: 304 stainless steel in a high-chlorine environment will show visible pitting corrosion within 18-24 months, which compromises both fixture integrity and basin aesthetics. The cost of replacing incorrectly specified fixtures far exceeds the initial cost premium for the correct material.

Water Condition	Chlorine Level	Required Grade	Why
Freshwater, no chemical dosing	0 ppm	304 SS or Brass	No chloride pitting risk
Standard commercial fountain	1–3 ppm	304 SS	Within safe range for 304
High-dosing fountain	3–5 ppm	316L SS	304 starts pitting above 3 ppm
Saltwater / coastal	Any	316L SS mandatory	Chloride concentration far exceeds 304 tolerance
Interactive dry-deck	N/A	316L SS + IK10	Pedestrian impact loads require IK10 impact rating
Koi / natural pond	0 ppm (no chlorine)	Brass or Bronze	Naturally biocidal; no corrosion risk



IP68 is the mandatory ingress protection rating for all commercial fountain ring lights in permanent submersion. IP67 — which is rated only for temporary submersion up to 30 minutes — is not suitable for fountain installation and will fail within 6-18 months. When specifying IP68, require the manufacturer to state the rated submersion depth and test duration: a fixture rated IP68 at 1 meter for 30 minutes is categorized the same as one rated IP68 at 3 meters for 72 hours under IEC 60529, but their real-world performance differs significantly.

According to HuiQi Fountain's engineering team, the most common material specification error in commercial ring light procurement is applying 304 stainless steel in chlorinated fountain environments above 3 ppm chlorine to reduce unit cost — a decision that typically results in full fixture replacement within 2-3 years, at a total cost that far exceeds the initial savings from the lower-grade material.



How Does Ring Light Sizing Interact with DMX Control and Installation Requirements?

Ring light sizing does not exist in isolation from the electrical and control system design. Wattage totals drive transformer sizing; fixture counts drive DMX universe planning; installation depth is determined by the TIR physics of the selected beam angle; and cable management requirements affect conduit routing in the civil works.

Transformer Sizing

Total connected wattage across all ring lights in an installation determines the transformer rating. Industry standard practice requires transformers to be sized at 125-130% of total connected wattage to accommodate inrush current and line losses. For a 50-nozzle installation with 18W ring lights, the total connected load is 900W; the minimum transformer rating is 1,125-1,170 VA. Never load a transformer above 80% of its rated capacity.

DMX Universe Planning

RGBW ring lights require 4 DMX channels per fixture. A standard DMX512 universe (ANSI E1.11, 512 channels) can independently address 128 RGBW ring lights. For installations with more than 128 independently controlled nozzle positions, additional DMX universes are required, distributed via Art-Net or sACN over network infrastructure. This infrastructure requirement must be incorporated into the electrical design before conduit routing is finalized.

Installation Depth and Cable Service Loop

The optimal installation depth for a fountain ring light is 45-60 cm below the water surface. At less than 20 cm, surface ripples interrupt the TIR light path and cause visible column flickering. Below 80 cm, Beer-Lambert attenuation in the water between the fixture and the nozzle exit reduces effective light input into the column.

Every ring light position must include a cable service loop — a minimum 40-50 cm of extra cable coiled behind or below the fixture — to allow the fixture to be lifted to the basin rim for maintenance without disconnecting the cable run. This loop must be incorporated into the conduit routing plan during civil works; it cannot be added after basin construction without significant remediation cost.

For the full range of commercial ring light configurations compatible with these sizing and DMX specifications — including wattage variants, aperture sizes, beam angle options, and RGBW DMX control modes — browse HuiQi's complete fountain lighting collection.





Frequently Asked Questions

Q: How do I find the right aperture size for a fountain ring light?

A: Measure the outer diameter (OD) of the nozzle riser pipe — not the nominal nozzle bore size. Add 3-5 mm clearance to the OD measurement to get the target aperture. A nominal 1.5-inch nozzle has a riser OD of approximately 48-50 mm, so specify a 50-55 mm aperture. Always confirm from the hydraulic schedule; never estimate from nominal size.

Q: What wattage ring light do I need for a 3-meter fountain jet?

A: For a laminar 3-meter jet, specify a minimum of 12W. For an aerated 3-meter jet, specify a minimum of 18W. For premium installations where visual impact at the jet tip is a primary design intent, apply a 20-30% premium: 15W for laminar, 22W-24W for aerated. These figures assume clear water below 0.5 NTU turbidity.

Q: Can I use the same ring light wattage for both laminar and aerated jets in a mixed fountain show?

A: No. Aerated jets require 30-40% higher wattage than laminar jets of the same height for equivalent visual impact, because air bubbles in aerated columns scatter TIR-guided light outward rather than guiding it to the jet tip. Specify wattage per nozzle type, not per installation, and confirm from the hydraulic schedule which positions are laminar versus aerated.

Q: What IP rating should I specify for commercial fountain ring lights?

A: Specify IP68 with the rated depth stated explicitly — for example, "IP68 at 2 meters for 72 hours." IP67 is not suitable for permanent fountain installation. Under IEC 60529, both IP67 and IP68 are legitimate ratings but at very different submersion conditions; IP67 fixtures will fail in permanently filled fountain basins within 6-18 months.

Q: How many ring lights can I control on a single DMX512 universe?

A: A standard DMX512 universe (512 channels) can independently control 128 RGBW ring lights using 4 channels each, or 170 RGB ring lights using 3 channels each. For installations exceeding these counts, additional DMX universes are required, distributed via Art-Net or sACN over a network infrastructure. Plan DMX universe count before electrical conduit routing is finalized.

Q: Should I use 304 or 316L stainless steel for ring lights in a chlorinated commercial fountain?

A: Use 304 stainless steel for fountains with chlorine at or below 3 ppm — the standard commercial dosing range. Specify 316L stainless steel for chlorine above 3 ppm, saltwater features, or coastal installations. Using 304 above 3 ppm chlorine results in visible pitting corrosion within 18-24 months. Always request material certification documentation from the manufacturer.

Q: What is the correct installation depth for a commercial fountain ring light?

A: Install fountain ring lights 45-60 cm below the water surface at the nozzle base. Shallower than 20 cm causes surface ripple interference and visible column flickering. Deeper than 80 cm causes Beer-Lambert light attenuation that reduces effective wattage entering the TIR water column. Leave a 40-50 cm cable service loop at each position for maintenance access.

Q: How do I size the transformer for a commercial ring light installation?

A: Multiply total connected wattage of all ring lights by 1.25 to 1.30 to get the minimum transformer VA rating. For 50 fixtures at 18W each (900W total), specify a minimum 1,125-1,170 VA transformer. Never load a transformer above 80% of its rated capacity. Use UL 379 listed (North America) or equivalent certified isolation transformers for all fountain applications.



Conclusion

Fountain ring light sizing is a sequential process: aperture from riser OD, wattage from jet height and pattern type, beam angle from nozzle pattern, and housing material from water chemistry. Getting any one of these parameters wrong produces a visible result that is difficult and expensive to correct after commissioning — which is why the sizing process must start from the hydraulic schedule, not from a product catalog.

The master sizing table in this guide provides a starting point for specification documents across all common commercial application types, from residential pond features to large civic musical fountain shows. For complex installations with mixed nozzle types, variable jet heights, or unusual water chemistry, a project-specific sizing calculation provides more accurate results than table-based estimation alone.
