The single most important technical specification for a commercial fountain light is not wattage, color temperature, or housing material — it is IP rating. A correctly specified fountain light in the wrong IP rating category will fail within months. An IP67 fixture installed in a permanently filled commercial fountain basin — a situation more common than the industry would prefer — will typically show moisture ingress within 12-18 months, corrupting the LED driver and requiring full fixture replacement.

IP68 is the mandatory ingress protection rating for any fixture permanently submerged in a commercial fountain. But IP68 is not a single standard — it is a category that encompasses any fixture rated for continuous submersion beyond 1 meter, with the rated depth and test duration varying enormously between products. Understanding this distinction, and knowing how to specify IP68 correctly to ensure the product delivered matches the environment it will face, is the foundational engineering knowledge for commercial fountain lighting procurement.

This guide covers the IEC 60529 IP rating system in detail, explains CNC machining and passivation treatment as manufacturing quality indicators, provides a complete fixture type selection matrix, and defines the procurement verification steps that prevent IP rating failures in commercial fountain projects.

What Does IP68 Actually Mean for Fountain Lights — and What Does It Not Mean?

The IP (Ingress Protection) rating system is defined by IEC 60529, the international standard for classifying the degree of protection provided by electrical enclosures against solid particles and liquid ingress. An IP rating consists of two digits: the first defines protection against solids (particles, dust), and the second defines protection against liquids (water at various conditions).

The second digit — liquid protection — defines the range:

• IP5x: Water jet resistant in any direction — for external fixtures in splash zones only.
• IP6x: Powerful water jets — still not submersion-rated.
• IPx7 (IP67): Temporary submersion up to 1 meter for up to 30 minutes. Not suitable for permanent fountain installation.
• IPx8 (IP68): Continuous submersion beyond 1 meter, for a duration and depth agreed between manufacturer and user. This is the mandatory rating for permanently submerged fountain lights.

IP Rating	Submersion Depth	Duration	Suitable for Fountains?
IP65	Not submerged	Spray/jet resistant	No — surface spray only
IP67	Up to 1 meter	30 minutes maximum	No — temporary only
IP68 (basic)	1 meter	30 minutes	Marginal — check test parameters
IP68 (commercial)	2-3 meters	72+ hours	Yes — standard commercial
IP68 (premium)	5+ meters	Continuous	Yes — deep basin installations
IP69K	Not applicable	High-pressure jet	Supplementary to IP68 for cleaning

The critical nuance is that IP68 is not a single fixed test — it is a test category where the manufacturer specifies the conditions. Under IEC 60529, an IP68 rating at 1 meter for 30 minutes and an IP68 rating at 5 meters for continuous operation are both legitimate IP68 ratings. The standard does not mandate a minimum depth or duration beyond 'greater than 1 meter' and 'beyond the scope of IPx7.'

This is why the specification must state the required IP68 depth and duration explicitly — for example, 'IP68 at 3 meters for 72 hours minimum' — and why the procurement document should require the manufacturer's hydrostatic test report confirming these parameters. A product claiming IP68 without stated depth and duration parameters provides no meaningful specification assurance.

According to HuiQi Fountain's engineering team, with 19 years of installation experience across 50+ countries, approximately 30% of fountain lighting warranty claims and replacement requests trace back to IP67 or under-tested IP68 products installed in permanently submerged positions — a specification error that is entirely preventable with correct IP rating documentation. Browse our full underwater fountain light product range to compare IP68 depth ratings across product configurations.

What Is CNC Machining and Why Does It Matter for Stainless Steel Fountain Lights?

CNC (Computer Numerical Control) machining is a manufacturing process in which stainless steel housings are cut, shaped, and finished using computer-controlled cutting tools operating to precise dimensional tolerances. It contrasts with casting (pouring molten metal into a mold) and stamping (pressing sheet metal into shape), both of which produce less precise dimensions and can introduce structural weaknesses at critical sealing interfaces.

For fountain light housings, the critical dimension is the gasket seating face — the machined surface against which the silicone or EPDM gasket compresses to create the IP68 seal between the housing body and the lens. This surface must be:

• Flat to within 0.05-0.1 mm: Any deviation in flatness creates a gap in the gasket compression, allowing water to track along the gap over time under hydrostatic pressure.
• Surface roughness Ra ≤ 0.8 μm: Too rough a surface creates micro-channels through the gasket seal; too smooth reduces gasket friction and risks seal displacement during lens assembly.
• Consistent across production batches: CNC machining produces consistent tolerances across all units in a production run; casting produces dimensional variation that affects seal quality fixture-to-fixture.

CNC-machined housings also allow for more complex internal geometry: heat-sink channels that conduct heat away from the LED chip to the outer housing surface, threaded apertures for ring light nozzle mounting, and recessed cable gland ports with precise thread dimensions. These features are difficult or impossible to produce accurately by casting.

Industry standard practice, as applied in commercial fountain engineering globally, requires CNC-machined housings for all commercial fountain light applications — not cast or stamped housings. For the HQ-T Series fixture specifications including housing manufacturing method documentation, see HuiQi's HQ-T Series product page.

What Is Passivation and Why Is It Required for Commercial Fountain Light Housings?

Passivation is a chemical surface treatment process applied to stainless steel after machining to maximize the material's inherent corrosion resistance. The process involves immersing the machined stainless steel housing in a dilute acid solution (typically citric acid or nitric acid per ASTM A967 or ISO 15730) that removes free iron and other contaminants from the surface, then allows a protective chromium oxide (Cr₂O₃) passive film to form uniformly across the entire surface.

Why Passivation Is Needed After Machining

CNC machining is a mechanical process that generates heat and contact with cutting tools made of steel. This contact can transfer microscopic iron particles from the cutting tools to the stainless steel surface — contamination invisible to the naked eye but chemically active in water. These iron particles oxidize (rust) in the presence of moisture, producing rust staining on the housing surface and creating nucleation sites for localized corrosion.

Passivation removes these iron contaminants and establishes a uniform, stable passive film across the entire machined surface — including the areas near welds, ground surfaces, and machining marks that are most vulnerable to corrosion initiation. Without passivation, a CNC-machined 304 or 316L stainless steel fountain light housing may show surface rust within months of installation in chlorinated water, even though the base alloy is corrosion-resistant.

Verifying Passivation in Procurement

Passivation treatment is invisible on the finished product — a passivated and a non-passivated 316L housing look identical. Verification requires either: (1) a passivation treatment certificate from the manufacturer confirming the treatment process, test standard (ASTM A967 or ISO 15730), and batch identification; or (2) third-party salt spray testing (ASTM B117) to confirm corrosion resistance performance. Salt spray testing at 250-500 hours with no red rust is the commercial minimum for 316L fountain light housings in chlorinated water environments.

For projects in coastal or high-chlorine environments where passivation quality directly determines fixture lifespan, requesting both a passivation certificate and a salt spray test report as procurement documents is standard practice. See how material certification documentation is structured in commercial fountain procurement in our completed project portfolio.

Which IP68 Stainless Steel Fountain Light Types Are Used in Commercial Installations?

Commercial fountain installations use multiple fixture types, each optimized for specific installation positions and optical requirements. All must be IP68-rated for permanent submersion; the selection between types is based on the hydraulic pattern, basin geometry, and lighting effect required.

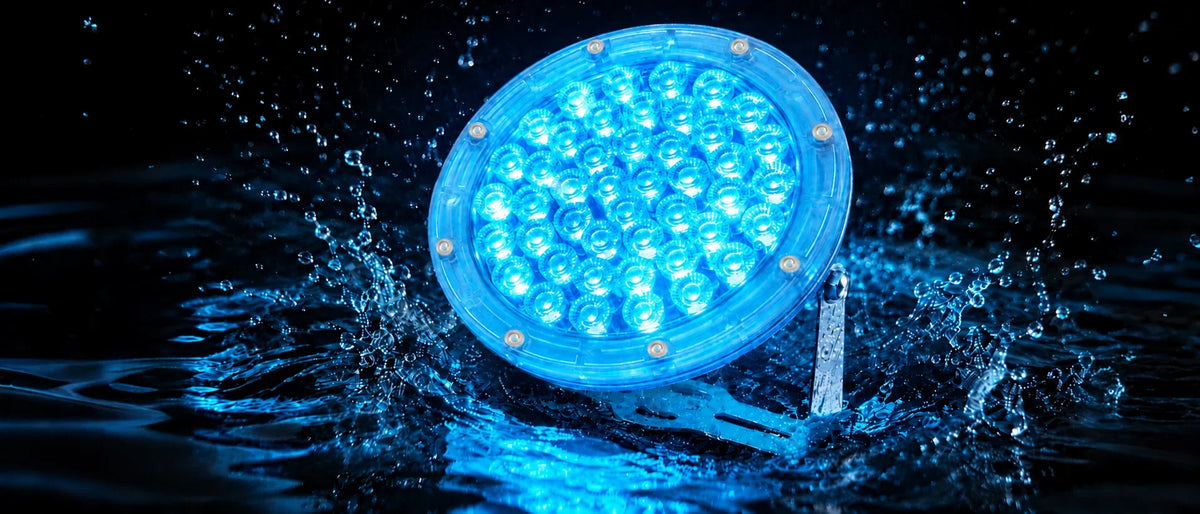

Submersible Spotlight / Uplighter

The most versatile fixture type: a compact directional LED luminaire with an adjustable bracket that allows aiming at specific nozzle positions, architectural elements, or areas of the basin surface. Typical beam angles range from 15 degrees (narrow, for high jets) to 60 degrees (wide, for general basin wash). Wattage from 3W to 40W covers the full range from residential ponds to large-scale civic fountains.

Ring Light (Nozzle-Mounted)

A circular fixture with a center aperture that slides over the nozzle riser, creating coaxial illumination of the water jet through total internal reflection. Produces the distinctive 'glowing from within' effect in laminar and geyser jets. Available in aperture sizes from 27 mm to 65 mm+ to match standard commercial nozzle riser diameters.

Linear Wall Washer

A narrow, elongated fixture that produces a wide-angle wash across basin walls, weir faces, and waterfall surfaces. Typically 30-120 cm in length with 120-degree beam angle. Used to create uniform illumination across large vertical water surfaces without the spotting effect of multiple discrete point sources.

Recessed In-Ground (Dry-Deck)

A flush-mounted fixture installed in the floor of a dry-deck interactive fountain or plaza water feature, where the fixture must be invisible when the fountain is off and safe for pedestrian traffic when energized. Must meet IK10 impact rating (20 Joule impact resistance) in addition to IP68, and lens surface must be slip-resistant. Typically 316L stainless steel with tempered glass lens.

Application	Fixture Type	Housing Grade	Control
Hotel entrance fountain	Ring light + spotlight	304 SS	Single-color or RGBW DMX
Resort infinity pool feature	Linear wall washer	316L SS	2700K warm white fixed
Municipal plaza musical show	Ring light (per nozzle)	304-316L SS	RGBW DMX512
Civic landmark geyser	High-power spotlight	304 SS	Cool white / DMX
Dry-deck interactive plaza	Recessed in-ground	316L SS + IK10	Single-color or RGBW
Saltwater coastal feature	Ring light / spotlight	316L SS mandatory	Fixed color or RGBW
Koi pond / natural water feature	Spotlight / ring	Brass or Bronze	Warm white fixed

How Do You Specify IP68 Stainless Steel Fountain Lights to Prevent Procurement Failures?

A specification document that states only 'IP68 stainless steel submersible fountain light' allows an enormous range of products to satisfy the specification — from correctly-rated commercial fixtures to under-tested consumer products that will fail within a year. The following parameters must be stated explicitly:

Complete Specification Language for Commercial IP68 Fountain Lights:

1. IP Rating: IP68 at [stated depth, e.g., 3 m] for [stated duration, e.g., 72 hours minimum]. Manufacturer to provide hydrostatic test report confirming these parameters.
2. Housing Material: 304 stainless steel (ASTM A240 / EN 1.4301) for standard freshwater applications; 316L stainless steel (ASTM A240 / EN 1.4404) for chlorine above 3 ppm or saltwater. Mill Certificate required.
3. Manufacturing Process: CNC-machined housing. Gasket seating face flatness within 0.1 mm. Surface roughness Ra ≤ 0.8 μm at sealing surfaces.
4. Passivation: Post-machining passivation per ASTM A967 or ISO 15730. Passivation certificate required. Salt spray test (ASTM B117) for 250 hours minimum, no red rust.
5. Lens: Tempered glass minimum (PC lens acceptable for standard applications; tempered glass required for high-pressure zones and IK10-rated dry-deck fixtures).
6. Cable Gland: 316L stainless steel or equivalent marine-grade fitting. Cable OD must match conduit specification.
7. Operating Voltage: AC/DC 12V-24V. Confirm DC24V compatibility if DMX decoders are specified.
8. Control: Single-color, RGB, or RGBW with DMX512 (ANSI E1.11) decoder as specified for each zone.
9. Warranty: Minimum 2 years commercial product warranty against defects in materials and workmanship.
10. Certifications: CE and RoHS minimum; UL 676 or ETL listing for North American installations.

According to HuiQi Fountain's engineering team, the three specification items most frequently omitted in commercial fountain procurement — allowing under-specified products to satisfy the tender — are the IP68 depth and duration statement, the passivation certificate requirement, and the Mill Certificate for housing material. Including all three in the specification document closes the most common quality gaps.

For pump system specifications that interact with fountain light installation — including pump vault placement that affects cable run lengths and transformer sizing — see our commercial fountain pump and VFD range.

What Installation and Maintenance Requirements Apply to IP68 Fountain Lights?

Installation Depth and Cable Management

As covered in the ring light and fountain light sizing guides, installation depth varies by fixture type. The general principle: all submersible fountain lights must be installed at a depth within their rated IP68 submersion depth, with a cable service loop (40-50 cm of extra cable coiled at the fixture position) to allow the fixture to be raised to the basin rim for maintenance without disconnecting cable runs.

Fixture Type	Optimal Depth	Installation Note
Submersible spotlight / uplighter	30-60 cm below waterline	Allows adjustment for beam angle optimization
Ring light (nozzle-mounted)	45-60 cm at nozzle base	Coaxial coupling requires consistent depth for TIR efficiency
Linear wall washer	10-30 cm (near basin wall)	Close to vertical surface for effective wash
In-ground dry-deck recessed	Flush with basin floor	Must not protrude — safety hazard and trip risk
Floating fixture	Buoyancy-maintained depth	Confirm IP68 depth rating covers maximum basin level

Junction boxes for fountain lighting cable connections must be positioned above the maximum operating water level — not submerged. All connections within submerged conduit must be sealed with IP68-rated gel-filled connectors or permanently potted with polyurethane resin. Standard wire nuts and tape are not acceptable for fountain applications under IEC 60364-7-702 Zone 0 requirements.

Maintenance and Seal Inspection

IP68 seals are not permanent. Silicone and EPDM gaskets experience compression set over time — the gasket material permanently deforms under constant compression, reducing its sealing force. Under IEC 60364-7-702 and NEC Article 680 maintenance guidelines, seals should be inspected every 2-3 years for commercial fountain installations, and replaced immediately if compression set, cracking, or hardening is visible.

Lens cleaning to remove mineral scale (calcium carbonate) and algae is required every 1-3 months for commercial fountain lights. Mineral scale reduces transmitted light output and, if allowed to build up, can increase internal temperature by reducing the thermal path from the LED chip to the surrounding water — accelerating LED degradation. Use mild citric acid or white vinegar solution; never abrasive cleaners or high-pressure jets directed at the lens edge (which can displace gaskets).

Frequently Asked Questions

Conclusion

IP68 is the non-negotiable minimum for commercial fountain lights in permanent submersion — but the IP68 rating alone is not sufficient specification. The three engineering parameters that determine whether an IP68 stainless steel fountain light will perform reliably for 10+ years in commercial service are: the IP68 test depth and duration (minimum 3 meters at 72 hours for commercial basins); CNC-machined housing with gasket seating face tolerances within 0.1 mm; and post-machining passivation treatment confirmed by a certificate and salt spray test.

These three parameters must be stated in the specification document and verified through procurement documentation — because the products that meet them and the products that don't are visually identical at delivery.

For IP68 compliance documentation, housing grade consultation, passivation certificates, and complete product specification packages for your next commercial fountain project, contact the HuiQi Fountain engineering team. Our team responds within 24 hours and provides full material and compliance documentation at no charge.
