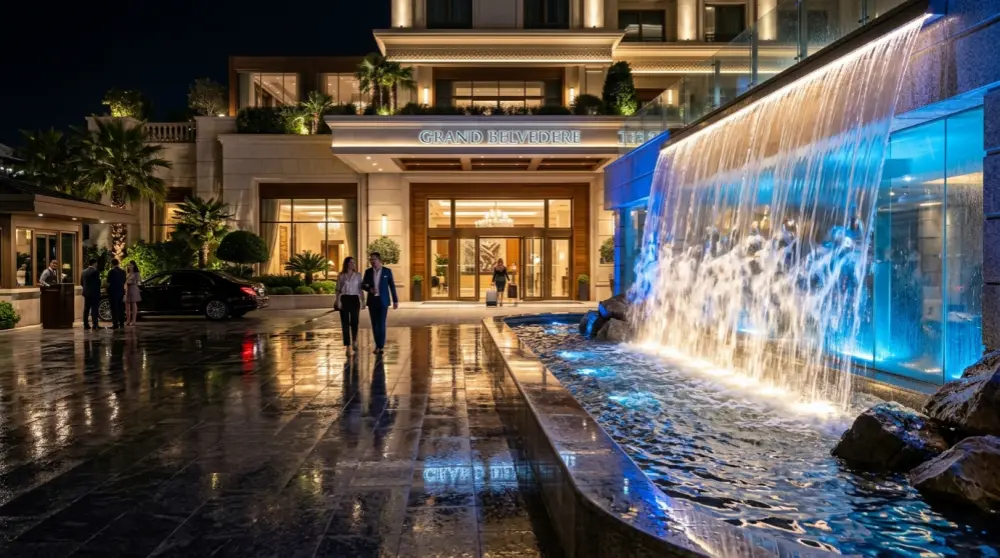

LED Waterfall Fountain Lighting
SUJIAHUI
◆ Direct Answer
LED lighting enhances waterfall fountains by illuminating the falling water curtain from below, behind, or within the structure, transforming a daytime architectural feature into a dynamic, colour-programmable night display. IP68-rated RGB and RGBW fixtures controlled via DMX512 protocol are the commercial standard, enabling millisecond-precise colour transitions synchronized to music, branding schedules, or event programming.
A waterfall fountain without lighting is a daytime asset. The same feature with professionally specified LED integration becomes a 24-hour brand instrument — performing as an ambient backdrop during the day and a choreographed colour display in the evening. For commercial landscape architects, hotel developers, and mall operators, LED lighting is not an optional upgrade; it is the feature that justifies the capital investment by creating a visual asset that works across every hour the property is occupied.
This guide covers the full spectrum of LED lighting options for waterfall fountains — fixture types and specifications, control system architecture, night design principles, and the commercial applications where LED waterfall lighting delivers the strongest audience impact.
What LED Lighting Types Are Used in Waterfall Fountains?
Five LED fixture categories are used in commercial waterfall fountain lighting, each producing a distinct visual effect depending on installation position and beam angle:
Single-Colour (Warm White / Cool White) — Static Ambient
Specification: 2700K–3000K warm white or 5000K–6500K cool white. 12V or 24V DC. IP68. CRI >80.
Visual effect: A continuous, even glow through the water curtain. Warm white enhances stone and brass surfaces; cool white accentuates the crystalline quality of high-velocity jets and stainless steel blades.
Best for: Hotel spa water walls, corporate lobby features, public civic fountains where a calm, consistent aesthetic is the design goal.
RGB (Red, Green, Blue) — Colour-Changing
Specification: Three-channel LED with 16.7 million colour combinations. 12V or 24V DC. IP68. DMX512 addressable.
Visual effect: Dynamic colour transitions, programmed sequences, and music-synchronized shows. Each fixture can be individually addressed via DMX to create sweeping colour washes, chasing effects, or single-colour holds.
Best for: Shopping malls, public plazas, resort pools, and entertainment venues where visual drama and seasonal reprogramming are primary requirements.
RGBW (Red, Green, Blue, White) — Premium Colour + White
Specification: Four-channel LED with dedicated white chip (2700K or 4000K). 12V or 24V DC. IP68. DMX512 addressable.
Visual effect: All RGB colour capabilities plus a high-CRI white that cannot be produced by mixing RGB. Enables rich pastel tones and corporate colour matching that standard RGB cannot achieve. CRI >80 in white mode.
Best for: Five-star hotel lobbies, branded commercial features, flagship retail entrances, and any project where precise colour accuracy matters.
Warm White + DMX Dimming — Dimmable Ambient
Specification: Single warm white channel with 0–100% PWM dimming via DMX512. 24V DC. IP68. Flicker-free >32 kHz PWM.
Visual effect: Adjustable ambient intensity without colour change — used when the design brief calls for atmospheric warmth rather than colour theatre. Can be synchronized to building management system (BMS) for automatic sunrise/sunset dimming schedules.
Best for: Spa environments, fine dining, corporate reception, and any interior where colour-changing would feel inappropriate but dynamic intensity is still desirable.
Ring / Nozzle-Mounted LED — Coaxial Jet Illumination
Specification: Donut-shaped fixture with centre aperture, 12V or 24V DC, available in single-colour, RGB, and RGBW. IP68. Beam angles 25°–45° focused along the water column axis.
Visual effect: Illuminates the water jet from within the spray pattern — the light path follows the water column, making the entire jet appear to glow from the inside. The signature effect of musical fountain shows where water jets and colour are synchronized.
Best for: Musical fountains, resort pool jets, programmed water show features, and any application where the nozzle jet itself — not just the curtain — is the visual focus.
HuiQi Fountain's complete IP68 underwater LED lighting range covers all five categories above — single-colour spotlights, RGB colour-changing fixtures, RGBW premium units, dimmable warm white systems, and nozzle ring lights — all rated for permanent commercial submersion and available with DMX512 control.
How Do LED Control Systems Work in Waterfall Fountains?
The LED control system determines what the lighting can do. Three control architectures are used in commercial waterfall fountain installations:
1. DMX512 — The Commercial Standard
DMX512 (Digital Multiplex, ANSI E1.11) is the global industry protocol for commercial fountain lighting control. A single DMX universe carries 512 channels, each representing one parameter — brightness, red value, green value, white value — of one or more fixtures. At up to 44 refresh cycles per second, DMX512 enables millisecond-accurate colour transitions that can be synchronized to music, show timers, or sensor triggers.
- Addressing: each fixture is assigned a unique start address in the 512-channel universe; RGBW fixtures use 4 channels each, limiting a single universe to 128 individually addressable RGBW fixtures
- Topology: daisy-chain wiring from controller to first fixture to last fixture — star or T-tap configurations cause signal reflections and are prohibited
- Termination: a 120-ohm resistor at the final fixture in the chain is mandatory to prevent signal reflection artefacts (flickering, ghost commands)
- Art-Net / sACN extension: DMX over Ethernet extends control to large sites with hundreds of fixtures across multiple universes via standard network infrastructure
2. RDM (Remote Device Management)
RDM is a bidirectional extension to DMX512 (ANSI E1.20) that allows the controller to query individual fixtures for real-time data — internal temperature, operating hours, voltage at the fixture terminals, and current DMX address. In a commercial fountain installation where fixtures are submerged and physically inaccessible, RDM is a significant operational tool: it allows maintenance teams to identify a failing fixture and confirm its address before draining the basin to access it.
3. Standalone / RF Remote Control
For simpler commercial installations without a DMX infrastructure, standalone auto-cycle controllers or RF remote units provide pre-programmed colour sequences and dimming without a programming console. These are appropriate for small features where seasonal reprogramming is limited and individual fixture addressing is not required. For any feature paired with a commercial fountain pump with VFD control, the lighting control system should ideally integrate with the same BMS or show controller that manages pump speed — allowing water flow and light colour to change in coordination rather than independently.
How Do You Design a Waterfall Fountain for Night-Time Impact?
Night design for a waterfall fountain is a separate design discipline from daytime appearance. The principles that govern effective night-time LED waterfall design:
Design Principle 1: Control the Surround
LED waterfall lighting is most effective when the surrounding architectural lighting can be dimmed or controlled independently. A feature backlit at 800 lm competes with a bright lobby at 500 lux; the same feature in a dimmed lobby at 50 lux becomes the dominant visual element in the space. Night design briefs for waterfall fountains should always include a recommendation on surrounding ambient light levels.
Design Principle 2: Layer, Not Flood
The most visually sophisticated waterfall fountain lighting uses two or three complementary sources rather than a single high-output fixture: a subtle base wash from basin uplight fixtures, a mid-intensity backlit effect through the curtain panel, and a focused accent at the water's edge from a concealed linear strip. Layering creates depth; a single-source flood produces a flat, uniform result that lacks visual interest.
Design Principle 3: Schedule, Not Static
A waterfall fountain that holds a single colour all evening misses the primary commercial value of DMX control. An effective night design schedule includes:
- 18:00–20:00 (early evening): warm white or brand colour ambient — welcoming, not theatrical
- 20:00–22:00 (peak footfall): colour show with 30–60 second programmed cycles — maximum visual impact
- 22:00–23:00 (closing): slow colour transition back to warm white — calming signal of venue close
- 23:00–06:00 (night): minimum flow on VFD, dim amber single-colour — energy conservation without full shutdown
Six signature night effects used in commercial waterfall fountain design — each achievable with the LED and control systems described in this guide:
Golden Hour Warm Cascade
Warm amber at 2700K, flowing from top to base of the curtain via a slow DMX chase sequence. Creates the impression of liquid gold falling through the structure. 30–45 second cycle.
Ideal venue: Luxury hotel lobby, resort pool deck, fine dining backdrop
Branded Colour Hold
Static output in the property's brand colour — achieved via precise RGBW channel mixing verified against a colorimeter. Consistent every evening; no transitions. Maximum brand clarity.
Ideal venue: Corporate headquarters, branded retail flagship, hotel reception
Ocean Pulse
Deep blue base with subtle teal and white pulse every 8–12 seconds, synchronized to a slow VFD wave in the water flow. Creates a breathing, organic rhythm effect. No two cycles are identical.
Ideal venue: Spa, wellness centre, seaside resort, airport VIP lounge
Music-Synchronized Colour Show
Full DMX512 programming with cues placed on audio waveform to 100 ms accuracy. Colour, intensity, and chase direction change with the beat. Requires show controller with audio input and synchronized VFD for water flow variation.
Ideal venue: Shopping mall landmark feature, resort plaza, themed entertainment venue
Seasonal Transition
Slow colour transition from cool blue-white in summer to warm amber-gold in autumn, reprogrammed quarterly at the DMX console. No hardware change required — pure software schedule update.
Ideal venue: Public plaza, civic water feature, retail property with seasonal calendar
Midnight Ember
Feature runs at 30% VFD speed (minimal flow) with deep amber or red-orange at 10% brightness. Feature remains 'alive' at minimal energy cost for after-hours visibility. Full shut-down on timer at 02:00.
Ideal venue: Any venue with security or safety lighting requirement after closing hours
For projects where night design programming is part of the scope, HuiQi Fountain's custom music fountain design and DMX programming service delivers fully programmed show files for the DMX controller, including audio-synchronized cue sheets, brand colour verification, and seasonal reprogramming documentation — delivered as part of the turnkey installation package.
Where Are LED Waterfall Fountain Lighting Effects Used?
| Application | Recommended LED Type | Control System | Primary Effect Goal |
|---|---|---|---|
| 5-Star Hotel Lobby | RGBW + Warm White base | DMX512 scheduled | Brand colour evening display |
| Shopping Mall Atrium | RGB colour-changing | DMX512 event-triggered | Seasonal themes, peak-hour shows |
| Resort Pool Deck | RGBW ring + submerged uplight | DMX512 + VFD sync | Evening show, branded palette |
| Corporate Office Lobby | Warm White dimmable | BMS dimming schedule | Ambient softening, brand signal |
| Public Civic Plaza | RGB colour-changing | Timer-scheduled DMX | Evening public entertainment |
| Spa / Wellness Centre | Warm White (2700K) static | BMS dim-to-off | Sensory calm, sleep-stage transition |
| Retail Storefront | RGBW, compact fixtures | RF or simple DMX | Window visibility, footfall draw |
For reference installations showing LED waterfall lighting applied across hotel, resort, mall, and public space projects, browse HuiQi Fountain's completed water feature and fountain lighting portfolio — 18 years of commercial lighting integration across 50+ countries.
LED Waterfall Fountain Lighting: Technical Specification Reference
The following specification parameters apply to all commercial waterfall fountain LED installations and should be confirmed in writing before procurement:
| Parameter | Commercial Standard | Why It Matters |
|---|---|---|
| IP Rating | IP68 (permanent immersion >1 m) | IP67 is rated for temporary immersion only — not sufficient for a continuously running fountain |
| Operating Voltage | 12V DC or 24V DC (SELV) | Safety Extra-Low Voltage eliminates lethal shock risk in public water environments |
| LED Lifespan | 50,000 hours (L70 rated) | Approximately 17 years at 8 hrs/day — plan for batch replacement at this milestone |
| Energy vs Halogen | 70–85% lower energy consumption | Significant OpEx reduction; LED payback period typically 2–4 years vs halogen replacement cost |
| Colour Rendering (CRI) | ≥80 (standard) / ≥90 (premium RGBW) | CRI <80 produces unsatisfactory rendering of stone, marble, and natural materials |
| DMX Refresh Rate | Up to 44 Hz (44 frames/second) | Enables real-time music synchronization without visual lag between audio cue and lighting response |
| PWM Frequency | >32 kHz (flicker-free broadcast standard) | Prevents camera flicker in video content and guest photography — critical for hospitality venues |
| Beam Angles | 10°–120° (fixture-type dependent) | Narrow (10°–25°) for jet uplighting; wide (45°–120°) for basin wash and curtain backlighting |
Frequently Asked Questions: LED Waterfall Fountain Lighting
Q1: What LED lights are used in waterfall fountains?
Commercial waterfall fountains use IP68-rated LED fixtures rated for permanent water immersion, operating at 12V or 24V DC. The main types are: single-colour warm/cool white (static ambient), RGB colour-changing (dynamic shows), RGBW (premium colour plus high-CRI white), dimmable warm white (DMX intensity control), and ring/nozzle-mounted fixtures (jet uplighting). All commercial installations use DMX512 control protocol.
Q2: How do you control LED colour in a waterfall fountain?
LED colour in commercial waterfall fountains is controlled via DMX512 protocol — a digital signal sent from a show controller to each individually addressed fixture in a daisy-chain network. RGBW fixtures use 4 DMX channels per fixture (Red, Green, Blue, White). At up to 44 refresh cycles per second, DMX512 enables millisecond-accurate colour transitions synchronized to music or programmed schedules.
Q3: What does IP68 mean for fountain LED lighting?
IP68 is the highest ingress protection rating, certifying that a fixture can be permanently submerged beyond 1 metre depth continuously without water ingress. All LED fixtures in direct contact with fountain water must be IP68-rated. IP67 (temporary immersion) is not sufficient for a continuously running commercial fountain installation. Always verify IP68 with manufacturer test reports, not just labelling.
Q4: How long do LED lights in a waterfall fountain last?
Commercial-grade IP68 LED fixtures in waterfall fountains are rated at 50,000 hours (L70 — the point at which output has declined to 70% of initial brightness). At 8 hours per day operation, this equals approximately 17 years of service. Plan for a coordinated batch replacement at this milestone rather than reactive individual fixture replacements, which are significantly more costly in submerged commercial installations.
Q5: What is the best LED colour for a hotel waterfall fountain?
For hotel lobby waterfall fountains, RGBW fixtures are the standard specification — the dedicated white channel delivers a high-CRI warm white for daytime ambient use, while the RGB channels enable brand colour programming for evening shows. The recommended base setting is 2700K warm white for arrival and check-in hours, transitioning to brand colour for the peak evening period from 20:00 to 22:00.
