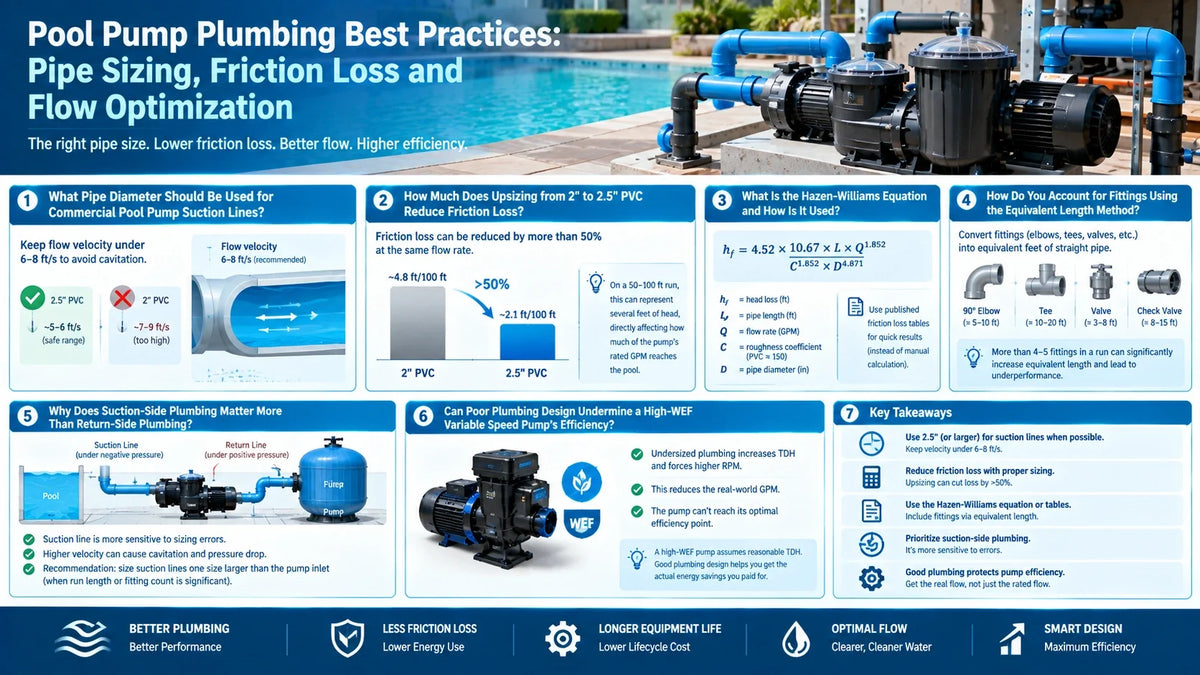

Even a correctly sized pump with the right THP and WEF rating can underperform badly if the plumbing feeding it is undersized — a mistake that shows up as reduced flow, cavitation noise, and pumps working harder than their rated curve suggests they should. Pipe sizing isn't a minor detail on commercial jobs; it's one of the three components of TDH and directly determines how much of a pump's rated capacity actually reaches the pool. This guide covers pipe sizing fundamentals, friction loss calculation methods, and practical flow optimization for commercial pool pump plumbing.

What Pipe Diameter Should Be Used for Commercial Pool Pump Suction Lines?

Pipe diameter for suction lines should be selected to keep flow velocity under approximately 6-8 feet per second, since velocities above this threshold create turbulence and pressure drop conditions that can lead to pump cavitation — a damaging condition where vapor bubbles form and collapse inside the pump, eroding impeller surfaces over time. For a pump moving 83 GPM, 2-inch PVC pipe typically pushes velocity close to or above this threshold, while stepping up to 2.5-inch pipe brings velocity comfortably within the safe range and meaningfully reduces friction loss on the same run.

For professional-grade hardware designed for these high-flow layouts, browse our commercial pool pumps.

How Much Does Upsizing from 2-Inch to 2.5-Inch PVC Actually Reduce Friction Loss?

Friction loss decreases sharply with increased pipe diameter at the same flow rate — moving from 2-inch to 2.5-inch PVC at a given GPM can reduce friction loss per 100 feet of pipe by more than 50%, since friction loss is inversely related to pipe diameter raised to a high power in standard hydraulic formulas. On a suction run of 50-100 feet, this difference can represent several feet of head, which directly affects how much of the pump's rated GPM actually reaches the pool at the system's real operating point on its performance curve.

What Is the Hazen-Williams Equation and How Is It Used for Pool Plumbing?

The Hazen-Williams equation is the standard hydraulic formula engineers use to calculate friction loss in pressurized pipe systems, factoring in flow rate, pipe diameter, pipe material roughness coefficient, and length to produce a head-loss figure in feet. For PVC pipe — the near-universal material for commercial pool plumbing — the roughness coefficient is favorably low, meaning PVC produces less friction loss than older materials like galvanized steel at the same diameter and flow, which is part of why PVC remains standard practice for pool circulation plumbing. Engineers rarely calculate Hazen-Williams by hand for every project; published friction loss tables (in feet of head per 100 feet of pipe, indexed by diameter and GPM) provide the same result without manual computation.

Access our Commercial Pool Equipment technical resources to optimize your hydraulic design.

How Do You Account for Fittings Using the Equivalent Length Method?

The equivalent length method converts every elbow, tee, valve, and check valve in a plumbing run into an equivalent number of feet of straight pipe of the same diameter, allowing engineers to add fitting losses directly into the total pipe-length figure used for friction loss calculation. A standard 90-degree elbow, for instance, typically adds an equivalent length similar to several feet of straight pipe of the same diameter, and a run with many fittings — common in retrofit equipment rooms with limited space — can accumulate equivalent length well beyond the actual physical pipe run. According to HUIQI Water Technology's engineering team, with 19 years of commercial pool project experience across 50+ countries, suction lines with more than 4-5 fittings are disproportionately represented in field reports of pumps underperforming their rated curve, almost always traced back to an equivalent-length calculation that was skipped or underestimated at the design stage.

Don't forget to pair high-quality fittings with a robust pool hair strainer to keep suction lines clear of debris and maintain pressure stability.

Why Does Suction-Side Plumbing Matter More Than Return-Side Plumbing?

Suction-side plumbing is more sensitive to sizing errors than return-side plumbing because the pump is pulling rather than pushing water through it, making the suction line more susceptible to cavitation-inducing pressure drop if velocity runs too high. Industry standard practice for commercial aquatic facilities generally recommends sizing suction lines one size larger than the pump's inlet port whenever the run length or fitting count is significant, even though this adds modest upfront material cost, because the resulting reduction in TDH and cavitation risk protects both pump longevity and the real-world GPM the system delivers.

Can Poor Plumbing Design Undermine a High-WEF Variable Speed Pump's Efficiency?

Yes — a high-WEF variable-speed pump's efficiency rating assumes the pump is operating against a reasonable TDH; undersized plumbing artificially inflates TDH, forcing the pump to run at higher RPM than necessary to hit required turnover flow, which erodes the very energy savings that justified specifying a high-WEF pump in the first place. Per DOE 2025 federal energy regulations, WEF ratings are tested under standardized conditions that don't account for a specific installation's plumbing losses, so real-world savings depend as much on correct pipe sizing as on the pump's nameplate efficiency rating.

Frequently Asked Questions

Q: What is the difference between 2-inch and 2.5-inch PVC for pool pump plumbing?

A: 2.5-inch PVC has significantly more cross-sectional area than 2-inch, reducing flow velocity and friction loss by more than 50% at the same GPM on comparable run lengths. The larger diameter costs modestly more upfront but reduces TDH and cavitation risk.

Q: How do I choose the right pipe size for a high-flow commercial pump installation?

A: Size plumbing to the pump's rated GPM at your calculated system TDH, keeping suction-side velocity under roughly 6-8 feet per second to avoid cavitation. Always cross-reference the specific pump manufacturer's plumbing sizing chart rather than applying a generic diameter rule.

Q: What does DOE 2025 compliance mean for pool pump installation, not just the pump itself?

A: DOE 2025 compliance is a product-level requirement met by the pump's WEF rating, but installation must still support that efficiency — undersized plumbing or poor pad layout can force even a compliant pump to work harder than its rating assumes. Correct installation protects the real-world energy savings the regulation is designed to achieve.

Q: How long does a properly installed commercial variable speed pump last?

A: A correctly installed and maintained commercial variable-speed pool pump typically lasts 8-12 years. Installation errors like dry-priming during startup or chronic suction restriction can shorten this significantly by stressing seals and motor components prematurely.

Q: How much energy can proper installation help a variable speed pump save?

A: Correct installation helps a variable-speed pump achieve its full rated 40-60% energy savings potential by minimizing the TDH the pump must work against. Poor installation can erode much of that savings by forcing the pump to run at higher RPM than necessary.

Conclusion

A correct commercial pool pump installation depends on three coordinated elements: equipment pad layout that minimizes TDH, plumbing sized to the pump's actual performance curve, and complete NEC Article 680 bonding and electrical compliance. Getting these right protects both inspection outcomes and the DOE 2025 energy savings the pump is rated to deliver. For contractors and developers managing multi-site or international projects, working with a manufacturer that provides full installation and plumbing specification support reduces field errors and callback risk. Request a Technical Consultation →
