A standard DMX512 fountain lighting system is one-way: the controller sends commands, and the fixtures never answer. When a submerged fixture goes dark, nobody knows whether the cause is a failed driver, a wrong address, a cable fault or a dead LED until someone enters the basin. For landscape architects, MEP engineers and fountain contractors, that uncertainty turns a small fault into a drain-down, a crew visit and a show outage at a commercial property. RDM changes the equation by letting fixtures report back. This guide explains how RDM works, what it can and cannot diagnose in a fountain, the hardware chain it requires, and how to specify it so that a project can be maintained for years without unnecessary downtime.

What Is RDM and How Does It Work With DMX512?

RDM is an industry standard published as ANSI E1.20 that runs on the same wiring as DMX512, the control protocol used for synchronized fountain lighting and water effects. Where DMX512 only transmits, RDM adds a return path: the controller briefly pauses the lighting data, sends a query, and the addressed fixture answers within the same cable run. Every RDM device carries a unique identifier, so the controller can automatically discover what is on the line, address each fixture individually and request information from it. HuiQi Fountain's DMX fountain lighting supports these advanced protocols, so RDM is a specification question to settle at the design stage.

Which Diagnostics Does RDM Give Fountain Operators?

Depending on the manufacturer's implementation, RDM commonly allows remote management without entering the water:

• Discovery: Identify every fixture on the line to spot missing or faulty units immediately.
• Remote Addressing: Remotely set the DMX start address, removing the need to access the submerged fixture manually.
• Identification: Trigger a flash command to locate a specific fixture in a dense basin.
• Status Monitoring: Read operating hours, internal temperatures, and firmware versions.

Why Does RDM Matter More for Submerged Fixtures?

Pool and fountain lighting differs from stage lighting because fixtures are sealed, submerged, and hard to reach. IP68 certification protects the electronics, but also makes physical inspection costly. In a music fountain system, such as our custom musical fountain systems, an unreported fault can disrupt a show for days. Bidirectional diagnostics shorten the path from symptom to cause, allowing the maintenance team to arrive with a clear plan.

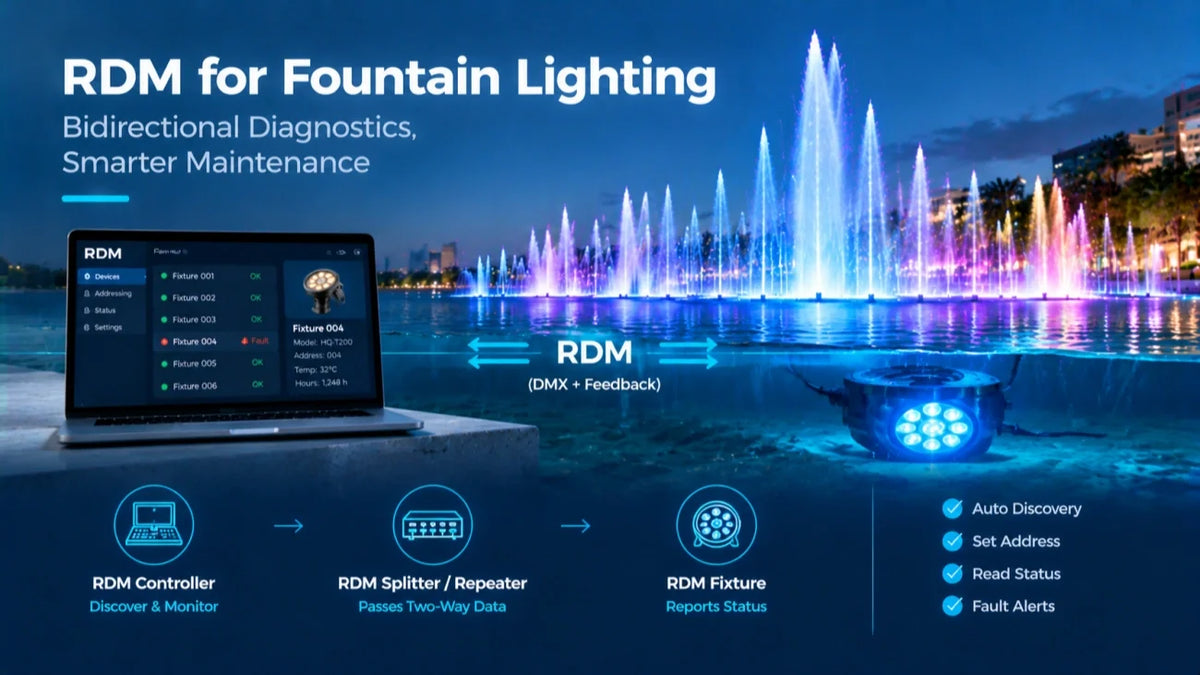

What Hardware Does a Bidirectional System Require?

RDM requires that the entire signal chain be compatible:

• Controller/Gateway: Must explicitly support RDM pass-through.
• Splitters/Repeaters: Standard one-way DMX splitters will block RDM; use RDM-aware hardware.
• Fixtures: All fixtures on the chain should be RDM-capable for full visibility.

Our HQ-T Series underwater lights provide the precision and reliability needed for these integrated systems.

Frequently Asked Questions

Q: What is the difference between DMX512 and RDM?

A: DMX512 is unidirectional (one-way); RDM adds a return path for status, discovery, and remote configuration.

Q: How to verify RDM works?

A: Perform a "Discovery" test at commissioning. If a fixture is missing from the list, the chain has a blocking device or lacks RDM support.

Q: Does RDM replace electrical safety?

A: No. RDM is for diagnostics. Electrical safety requires IP68 fixtures, low voltage (SELV), and proper grounding/bonding.

Conclusion

RDM turns DMX lighting from a "black box" into a diagnostic system, allowing remote management without pool drain-downs. Specifying the full RDM-capable chain — including fixtures, splitters, and controllers — is essential for high-uptime commercial venues. Request a Technical Consultation →
