Motor technology is the single spec on a pool pump order that most affects long-term reliability, and it's also the one buyers most often skip past to focus on horsepower and price. For hotel developers and municipal procurement officers comparing bids, the real difference between a TEFC-housed motor, a standard open induction design, and a Brushless Permanent Magnet (BPM) motor shows up 18 months into operation — not on day one. This guide compares all three motor technologies on sealing, efficiency, noise, and service life, so buyers can specify correctly the first time instead of discovering the difference through a warranty claim.

What Is a TEFC Motor and How Does It Differ From an Open Induction Motor?

TEFC stands for Totally Enclosed, Fan-Cooled — a motor housing design that fully seals the internal windings and bearings from the outside environment, cooling itself with an external fan blowing across the sealed housing rather than drawing air through the motor's interior. That sealed construction typically achieves an IP55 protection rating, meaning it's dust-protected and resistant to water jets from any direction, which matters directly for equipment pads exposed to splash, humidity, and outdoor weather.

A standard open induction motor, by contrast, draws cooling air directly through the motor's internal windings, which keeps manufacturing cost lower but leaves the windings more exposed to moisture, dust, and salt-laden air over time. Explore commercial pool pumps built with TEFC and BPM motor options across the 0.5 HP to 5.0 HP commercial range.

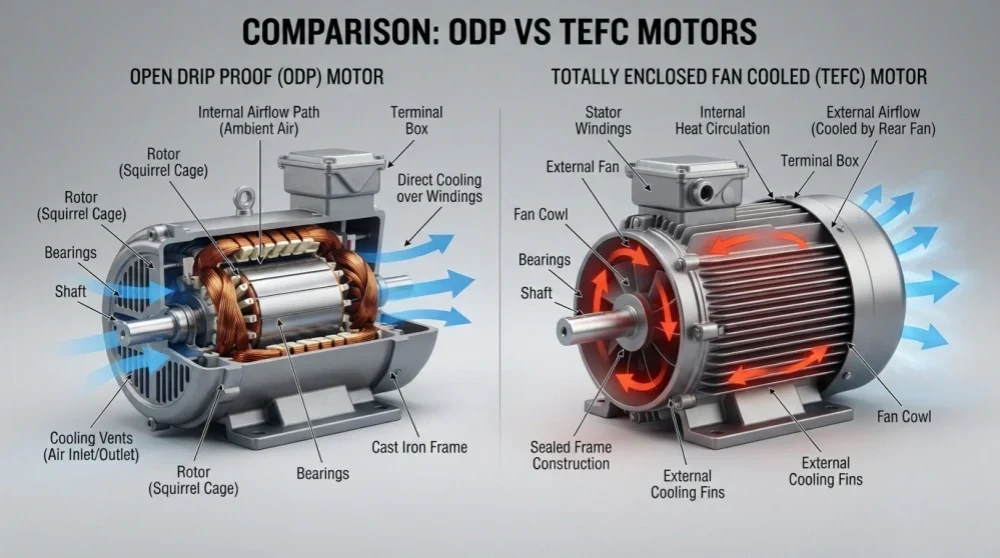

Figure 1: Internal structure and cooling mechanism differences between TEFC sealed and open induction motors.

How Do BPM Motors Compare to TEFC and Standard Induction Designs?

Brushless Permanent Magnet (BPM) motors use permanent magnets in the rotor instead of the induced magnetic field that gives induction motors their name, which delivers meaningfully higher efficiency across a much wider RPM range — a key reason BPM has become the default motor technology for variable speed commercial pool pumps. Unlike standard induction motors, which lose efficiency sharply at reduced RPM, BPM motors maintain strong efficiency from roughly 600 RPM up through full speed, which is exactly the operating range variable speed pumps use to hit DOE 2025's minimum WEF thresholds.

Per DOE 2025 federal energy regulations, all packaged pool pumps sold in the US must meet a minimum WEF rating, and BPM motors are what makes that threshold realistically achievable across a wide RPM range — standard induction designs typically cannot hit the required efficiency score at reduced speed, which is a major factor pushing single speed induction pumps out of the compliant product range entirely.

Which Motor Technology Delivers the Longest Service Life in Commercial Pools?

Sealed TEFC construction is the biggest single factor extending motor life in commercial pool applications, since moisture and salt-air intrusion — not simple mechanical wear — are the most common causes of premature motor failure on outdoor equipment pads. A well-built TEFC or BPM motor in a commercial installation typically supports the pump's full 8–12 year service life expectation, while open induction motors in humid or coastal environments frequently show winding degradation and bearing corrosion well before that range.

According to HUIQI's engineering team, with 19 years of commercial pool project experience across 50+ countries, motors specified with sealed TEFC housings and 316-stainless steel shafts consistently outlast open induction designs by several years in coastal and saltwater installations, even before accounting for the underlying efficiency gap between the two technologies.

How Does Motor Choice Affect Noise Levels on Commercial Installations?

Noise is a genuine specification concern on hotel, resort, and residential-adjacent commercial projects, and motor technology drives most of the variation. Standard induction motors running at fixed full speed typically produce 45 dBA or higher — noticeable near an equipment pad close to guest rooms or outdoor seating. BPM motors, running at reduced RPM during low-demand filtration hours, can operate as quiet as roughly 30 dBA, a meaningful difference for projects where the pump room sits near occupied space.

TEFC housings also contribute to lower perceived noise regardless of the underlying motor type, since the sealed enclosure dampens some mechanical and electrical hum compared to an open frame design — one more reason TEFC has become close to a default spec on hospitality projects independent of the horsepower or motor technology inside it.

Figure 2: Performance metrics comparing efficiency, operating noise levels, and lifespan across motor types.

Why Does DOE 2025 Favor BPM and TEFC Motors Over Open Induction Designs?

DOE 2025's Weighted Energy Factor methodology rewards pumps that can run efficiently across a range of speeds rather than only at one fixed operating point, which structurally favors BPM's wide efficiency band over standard induction motors built primarily for single-speed operation. TEFC construction doesn't directly affect the WEF score, but it indirectly supports compliance by protecting the internal components that maintain rated efficiency over the pump's service life — a motor that degrades from moisture intrusion within a few years won't sustain its certified WEF performance for the long term, even if it tested compliant when new.

Industry standard practice for commercial aquatic facilities now treats TEFC-housed BPM motors as the baseline commercial spec, reserving open induction designs for narrow, cost-sensitive applications where DOE compliance and long-term efficiency retention matter less than upfront price.

Which Motor Technology Should You Specify for Your Commercial Pool Project?

For nearly any commercial installation — hotels, resorts, aquatic centers, and municipal pools — a variable speed pump with a TEFC-housed BPM motor is the correct default specification, combining DOE 2025 compliance, the lowest achievable noise level, and the longest realistic service life. Open induction motors remain viable only for narrow, cost-driven applications where the pump runs short duty cycles and isn't subject to strict efficiency or noise requirements. Whichever motor type is specified, buyers should confirm the motor's Service Factor is documented alongside its rated HP, since Total Horsepower (HP × Service Factor) — not the rounded HP figure — is what determines actual regulatory classification and real-world capacity.

Matching motor selection to correctly sized commercial pool filters also protects the efficiency gains a BPM motor delivers — a filter creating excess backpressure forces any motor, regardless of technology, to work harder than its tested rating accounts for.

Conclusion

The motor technology inside a commercial pool pump determines far more than its price — it drives sealing performance, noise level, DOE 2025 compliance, and realistic service life over an 8-12 year installation window. TEFC-housed BPM motors are now the correct default for nearly every commercial application, with open induction reserved for narrow, cost-driven exceptions. HUIQI's engineering team supports contractors and developers in specifying the right motor technology for each project's operating conditions — request a technical quote before your next pump order.
