A waterfall fountain installation is not a single trade job — it is a coordinated multi-phase engineering process that draws on civil, mechanical, electrical, and specialist water feature expertise. The sequence of phases matters as much as the quality of individual work: a perfectly machined stainless steel blade installed before waterproofing is signed off will almost certainly need to be removed and replaced at the developer's cost.

This guide walks through the complete commercial waterfall fountain installation process phase by phase, including site survey requirements, structural engineering thresholds, pump and plumbing specifications, testing protocols, and the maintenance schedule that protects the finished installation.

What Is the Complete Installation Timeline?

Before the phase-by-phase breakdown, this table gives project managers and developers a realistic timeline benchmark for planning purposes:

Phase	Activity	Typical Duration	Key Milestone
Phase 1	Site Survey & Engineering Sign-off	3–7 days	Structural load and hydraulic brief confirmed
Phase 2	Civil Works & Basin Construction	1–3 weeks	Basin poured, waterproofed, and cured
Phase 3	Structural Setup & Cladding	1–2 weeks	Frame, blade, or rock face installed
Phase 4	Pump, Plumbing & Electrical	1–2 weeks	All services connected and pressure-tested
Phase 5	LED Lighting Installation	3–7 days	Fixtures positioned, cabled, and IP-tested
Phase 6	Commissioning & Testing	3–5 days	Flow balanced, lights programmed, signed off
	Total (mid-range commercial)	4–8 weeks	Feature handed over to facility management



Complex installations — rock grottos, infinity edges, or features integrated into an existing building during a live operation — typically run to 10–16 weeks. Factors that extend timelines most commonly are concrete curing (which cannot be accelerated safely), specialist stone or GRC cladding lead times, and VFD panel factory pre-build schedules.

Phase 1: Site Preparation — What Must Be Done Before Any Physical Work Starts?

Site preparation is the phase most commonly underestimated in timeline and cost — and the one where errors are most expensive to fix downstream. Four tasks must be completed and formally signed off before any physical construction begins:



Phase 2 & 3: Civil Works, Basin Construction and Structural Setup

Civil works and structural setup are usually run as two overlapping phases — the basin is constructed and waterproofed while the structural frame and cladding are fabricated off-site, then installed once curing is complete.

Basin Construction

• Excavation or formwork: the basin footprint is excavated (for ground-level features) or formed in shuttering (for raised or elevated features)
• Reinforcement (rebar): concrete basin walls and floor are reinforced to engineer's specification — minimum 150 mm wall thickness for commercial installations
• Concrete pour and cure: minimum 28-day curing time for full structural strength — a common schedule pressure point, as no waterproofing can be applied before the concrete is dimensionally stable
• Waterproofing membrane application: applied to all internal concrete surfaces in two or three coats, allowed to fully cure between coats — the single most important quality gate in the entire installation
• Tile, stone, or liner finish: applied over the cured membrane; the finish is selected for slip resistance, chemical compatibility with the water treatment system, and aesthetic match to the feature



Structural Frame and Cladding

The visible face of the waterfall — stainless steel blade frame, rock formation, GRC panels, or glass curtain wall — is fabricated off-site and installed once the basin structure is complete and waterproofing is signed off. For curtain-style features, the distribution header and precision water film nozzle system are integrated into the structural frame during this phase, with pipework connection points left accessible for the plumbing phase. Anchor fixings through the waterproofing membrane must be sealed with compatible sealant immediately after installation — any penetration left unsealed becomes a water ingress point.

Phase 4: Plumbing System — Pump, Pipework and Flow Control Installation

The plumbing phase connects the pump, supply pipework, distribution header, and return system into a complete hydraulic circuit. This is the phase that determines whether the finished feature produces a clean, even water curtain — or an uneven, disappointing result that requires expensive remediation.

Pump Installation

For submersible pump installations, the pump is positioned on the basin floor at the deepest point and connected to the supply pipe via a flexible union (which absorbs vibration and allows removal without draining the basin). HuiQi Fountain's HQ-AP commercial submersible pump is supplied with a pre-fitted union connector, dry-run thermal protection, and multi-phase motor windings rated for continuous 24/7 commercial duty. For dry-installed centrifugal pump systems, the pump is mounted in the plant room on anti-vibration mounts, connected to the basin via rigid supply and return pipework with flanged joints.



VFD Panel and Motor Control

• The VFD (Variable Frequency Drive) panel is wall-mounted in the plant room or a weatherproof enclosure adjacent to the feature
• Motor cable from pump to VFD is sized to manufacturer specification — undersized cable causes voltage drop that damages VFD components over time
• VFD is programmed with minimum speed (minimum flow), maximum speed (full curtain), and ramp-up/ramp-down times during this phase
• BMS integration (where specified) is wired at this stage — typically a volt-free contact input for on/off and a 0–10V analogue signal for speed control

Distribution Header and Pipework

• Supply pipe from pump to header is installed with a gate valve on each branch for flow balancing and an isolation valve at the header inlet for maintenance
• Distribution header is installed at the correct elevation and plumbed to the supply pipe — header must be level to ±2 mm across its full width to ensure even flow distribution
• All underground pipework joints are pressure-tested at 1.5× operating pressure before backfilling — any failure at this stage is far cheaper to fix than after the feature surface is complete
• Return pipework from the basin to the filtration unit and chemical dosing system is connected — filtration turnover rate should be engineered for one full basin volume every 4–8 hours



Phase 5: LED Lighting Installation and Electrical Testing

LED lighting is installed as the final mechanical trade before commissioning, after all pump and plumbing work is complete and the basin has been water-filled to verify no leaks. All IP68 underwater LED fixtures are positioned according to the lighting layout drawing — typically 45–60 cm below the water surface for submerged uplighting, or directly behind the water curtain panel for backlit effects. Cabling runs are sealed through the basin wall or floor via purpose-made cable glands with sealant applied immediately after installation.



Electrical Safety Checks Before Water Fill

• Insulation resistance test (megger test): all LED cabling must show >1 MΩ resistance to earth before the basin is filled — test is repeated after filling to confirm no moisture ingress during installation
• Earth bonding verification: all metal components within 5 m of the water surface must be bonded to the main earth terminal with minimum 6 mm² bonding conductor
• GFCI/RCD protection: all LED circuits operating above 15V AC must be protected by a Class A residual current device (RCD) rated at 30 mA
• DMX addressing: each DMX fixture is assigned a unique address before filling — addressing after filling requires waterproof RDM controllers

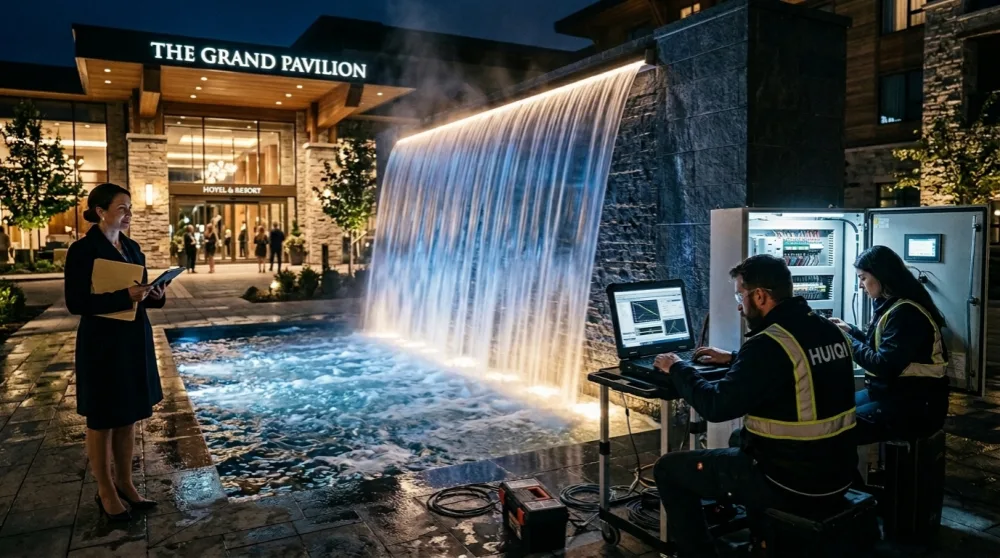

Phase 6: System Commissioning and Testing — What Must Be Verified Before Sign-Off?

Commissioning is not a formality — it is the engineering process that validates every phase of the installation against the original hydraulic brief and design specification. A professional commissioning sign-off protects the developer, the facility manager, and the installing contractor.

Hydraulic Commissioning

• Initial water fill: basin is filled slowly to check for leaks at all joints, penetrations, and membrane edges — any seepage is rectified before proceeding
• Pump start-up sequence: pump is started at minimum VFD speed and gradually increased to operating speed while monitoring current draw, flow rate, and pump temperature
• Flow rate measurement: actual flow rate at the distribution header is measured and compared to the designed flow rate — variance of more than 10% requires investigation
• Header balancing: gate valves on each header branch are adjusted until the water sheet is uniform across the full curtain width — this is the most time-consuming commissioning step and should not be rushed
• VFD speed range calibration: minimum and maximum speed settings are confirmed to produce the agreed ambient and full-show flow conditions



Lighting Commissioning

• Full lighting test: all LED fixtures are powered on simultaneously and checked for correct colour output, beam angle, and any flickering (which indicates a connection fault or voltage drop)
• DMX programming: colour sequences, transition times, and show schedules are programmed and tested through at least one full show cycle
• Branded colour matching: where a hotel brand colour specification has been provided, LED output is measured with a colorimeter and DMX values adjusted to match the target specification



Commissioning Sign-Off Checklist

Check Item	Pass Criterion	Checked By
Basin watertight	Zero seepage after 24-hour soak test	Civil contractor + HuiQi engineer
Pump flow rate	Within 10% of designed L/min	Mechanical engineer
Header pressure balance	Uniform curtain across full width, no streaking	HuiQi commissioning engineer
Insulation resistance	>1 MΩ on all LED circuits (wet test)	Electrical engineer
Earth bonding continuity	<1 Ω resistance across bonding conductor	Electrical engineer
RCD trip test	RCD trips at ≤30 mA within 300 ms	Electrical engineer
DMX show cycle	Full show cycle runs without dropout or error	HuiQi commissioning engineer
Water chemistry baseline	pH 7.2–7.8, free chlorine 1.0–3.0 mg/L	Facility manager



Post-Installation Maintenance Schedule

A correctly installed commercial waterfall fountain has a structural lifespan of 20–30 years. Achieving that lifespan requires a structured preventive maintenance programme from day one — not reactive intervention when something fails.

For hotel groups and commercial developers managing multiple water features, HuiQi Fountain provides custom waterfall fountain maintenance programmes covering all pump service, LED inspection, water chemistry monitoring, and structural checks under a single annual contract — eliminating the coordination overhead of managing multiple specialist contractors.



Maintenance Schedule Reference

• Monthly: water chemistry check (pH, chlorine, turbidity); LED visual inspection for seal failure; pre-filter clean
• Quarterly: pump impeller and seal inspection; nozzle descaling; pipework pressure check; VFD current log review
• Annually: full pump service (wear rings, shaft seal, bearings); waterproofing membrane inspection and reseal as required; LED fixture IP integrity test; basin drain and clean; control system firmware update
• Every 3–5 years: pump overhaul or replacement assessment; structural engineer inspection of basin and support frame; planned LED batch replacement at 50,000 hours
