A waterfall fountain differs from a standard jet fountain in one key respect: instead of projecting water upward through pressurized nozzles, it channels water downward across a structured surface — a blade, panel, or rock face — to create a continuous falling sheet or curtain. This makes it one of the most architecturally versatile water features available to commercial landscape designers, hotel groups, and property developers.

This guide breaks down the core design principles behind a successful commercial waterfall fountain: structural and aesthetic design, material selection, water flow engineering, lighting integration, and the commercial applications where waterfall fountains deliver the strongest return on investment.

What Are the Core Design Principles of a Waterfall Fountain?

Waterfall fountain design begins with three fixed inputs: available head height (the vertical drop distance), the width of the water curtain, and the architectural context the feature must integrate into. From these, designers calculate flow rate, structural load, and visual proportion.

1. Scale and Proportion

The water curtain width and fall height must be proportional to the surrounding architecture. A waterfall fountain installed in a 6-metre hotel atrium needs a fundamentally different scale than one in a 1.5-metre courtyard reflecting pool. Designers typically use a width-to-height ratio between 1:1 and 3:1 for visual balance, though landmark installations intentionally break this rule for dramatic effect.

2. Sightlines and Viewing Angles

A waterfall fountain should be designed with primary, secondary, and tertiary viewing angles in mind — lobby entrance sightline, elevated mezzanine view, and close-proximity poolside view, for example. Each angle affects decisions about backlighting placement, surface texture, and sound design.

3. Acoustic Design

Falling water generates ambient sound that varies significantly with flow rate, fall height, and the surface it strikes. A flow that lands on a hard tile surface produces a sharper, louder sound than one falling into a deep pool. For hotel lobbies and spas, designers typically target a gentle, consistent acoustic profile rather than a high-impact splash.

4. Structural Integration

Every waterfall fountain requires either a load-bearing wall, a freestanding frame, or a civil structure capable of supporting both the static weight of water in transit and the dynamic load of the pump system. According to HuiQi Fountain's design engineering team, with 18 years of commercial water feature delivery across 50+ countries, structural load calculations are the single most commonly underestimated factor in independent (non-specialist) waterfall fountain projects.

What Materials Are Used in Waterfall Fountain Construction?

Material selection for a waterfall fountain is driven by four factors: water exposure (fresh, chlorinated, or saltwater), climate, structural load requirements, and desired aesthetic finish.

• 316L Stainless Steel — marine-grade corrosion resistance, the standard for chlorinated commercial water and outdoor coastal installations
• Brass and Bronze — used for decorative weirs and nozzle housings in formal or heritage-style installations
• Natural Stone — granite, slate, or limestone for rock-style waterfall fountains; requires sealing to prevent algae growth and staining
• GRC (Glass Reinforced Concrete) — lightweight engineered alternative to natural stone, allows complex rock-formation shapes at lower structural load
• Tempered Glass or Acrylic Panels — used for laminar, transparent water-curtain effects in contemporary lobby and retail installations
• Tile and Mosaic Finishes — common in basin floors and channel surfaces; selection affects acoustic profile and slip resistance

For projects with chlorinated or saltwater contact, 316L stainless steel is the industry-standard nozzle and structural fitting material due to its resistance to chloride-induced corrosion — a critical durability factor over a 20–30 year structure lifespan.



How Is Water Flow Controlled in a Waterfall Fountain?

Water flow control determines whether a waterfall fountain produces a uniform, elegant sheet or an uneven, visually weak result. The flow path is: basin or reservoir → pump → supply pipework → distribution header → weir or nozzle line → falling curtain → return basin → filtration → recirculation.

• Flow rate: 12–18 litres per minute per 300 mm of curtain width for a standard sheer descent effect
• Head pressure loss: 0.5–1.5 metres per 10 metres of supply pipe — must be calculated into pump sizing
• VFD-controlled fountain pumps: enables real-time flow rate adjustment, reducing pump energy consumption by 40–60% compared to constant-speed operation
• Distribution header design: an evenly pressurized header is required across the full curtain width to avoid uneven 'patchy' flow at the edges
• Closed-loop recirculation: minimizes fresh water consumption; full water volume should turn over through filtration every 4–8 hours for public-contact installations



Industry standard practice for commercial waterfall fountain engineering requires every distribution header to be hydraulically balanced — meaning pressure is equalized across the full width of the curtain — before the structure is signed off as commissioned. An unbalanced header is the most common cause of an uneven or 'streaky' water curtain in completed installations.

How Is Lighting Integrated Into a Waterfall Fountain?



Lighting transforms a waterfall fountain from a daytime architectural element into a 24-hour brand asset. Three integration positions are standard in commercial design:

• Backlighting — fixtures mounted behind a translucent water curtain (glass, acrylic, or thin water sheet) create a glowing, theatrical silhouette effect
• Underwater / submerged lighting — fixtures positioned in the return basin illuminate the falling water from below, creating an uplighting effect on the curtain surface
• Embedded structural lighting — LED strips integrated directly into the weir, header, or rock structure for close-range colour washing

To ensure long-term durability and safety, specify IP68 underwater LED lighting for fountains that is certified for permanent immersion beyond 1 metre depth and operates at 12V or 24V DC for public aquatic safety compliance. RGB fixtures deliver 16+ million colour combinations; RGBW fixtures add a dedicated white channel for warmer, more natural lighting transitions. LED fixtures rated for 50,000 hours deliver approximately 17 years of service at 8 hours per day of operation, with 70–85% lower energy consumption than legacy halogen lighting.

For projects requiring synchronized colour shows — branded colour sequences, music-linked lighting, or scheduled evening programming — DMX512 control protocol is the commercial standard, supporting 512 channels per universe with up to 44 refreshes per second for smooth, real-time colour transitions.



Where Are Waterfall Fountains Used?



Waterfall fountains are among the most widely specified commercial water features because of their flexibility across architectural styles and budget tiers.

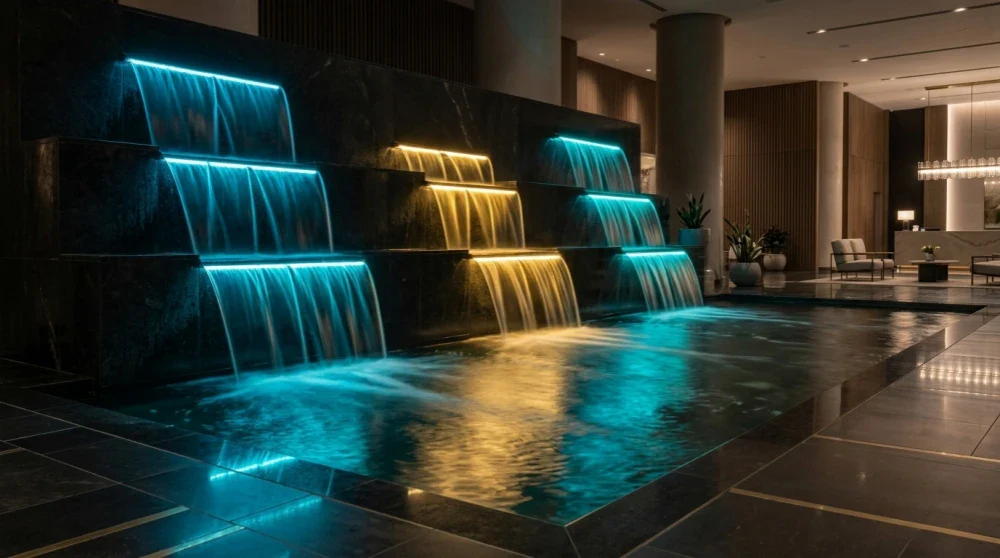

Hotels and Resorts

Lobby atriums, pool decks, and spa entrances frequently use waterfall fountains as a calming, premium-signalling architectural feature. Backlit glass curtain waterfalls are especially popular at five-star hotel entrances, where the feature reinforces brand positioning from the moment a guest arrives.

Shopping Malls and Retail

Large-format waterfall fountains positioned at mall atriums or anchor entrances create a memorable wayfinding landmark and a popular photo location — both of which extend average visitor dwell time, a key driver of retail tenant sales performance.

Public Plazas and Civic Spaces

Municipal projects use waterfall fountains as both a public art statement and a passive cooling feature in urban heat-island areas. Civic waterfall fountains typically prioritise low-maintenance materials (stainless steel, sealed stone) and child-safety-compliant flow rates.

Corporate Lobbies and Office Developments

Mid-scale waterfall fountains in corporate lobby environments serve as an acoustic buffer against street noise while signalling brand quality to visiting clients and prospective tenants.

To see how these concepts are applied in live environments across 50+ countries, explore our curated gallery of waterfall fountain project examples.

How Much Does a Commercial Waterfall Fountain Cost?

Commercial waterfall fountain cost depends on curtain width, fall height, material selection, lighting specification, and civil works complexity:

Scale	Typical Application	Cost Range (Installed)
Small (1–2m width)	Corporate lobby, boutique hotel	$5,000–$20,000
Medium (2–5m width)	Hotel atrium, mall entrance	$20,000–$60,000
Large (5–10m width)	Resort centrepiece, civic plaza	$60,000–$150,000+
Landmark / custom rock	Flagship resort, theme park	$150,000–$500,000+



Annual maintenance for a commercial waterfall fountain typically runs 5–10% of the original installation cost, covering pump servicing, LED fixture checks, descaling, and water treatment chemical dosing.
