Specifying underwater lighting for a commercial pool, resort, or municipal aquatic facility means navigating a code landscape where the wrong voltage choice can trigger inspection failures, costly rewiring, or safety liability. Contractors and MEP engineers routinely face the same question at the design stage: should the system run on 12V or 24V, and what does NEC Article 680 actually require? This guide compares 12V and 24V low voltage fountain lighting on safety, voltage drop, cable sizing, and code compliance, so procurement teams can specify correctly the first time.

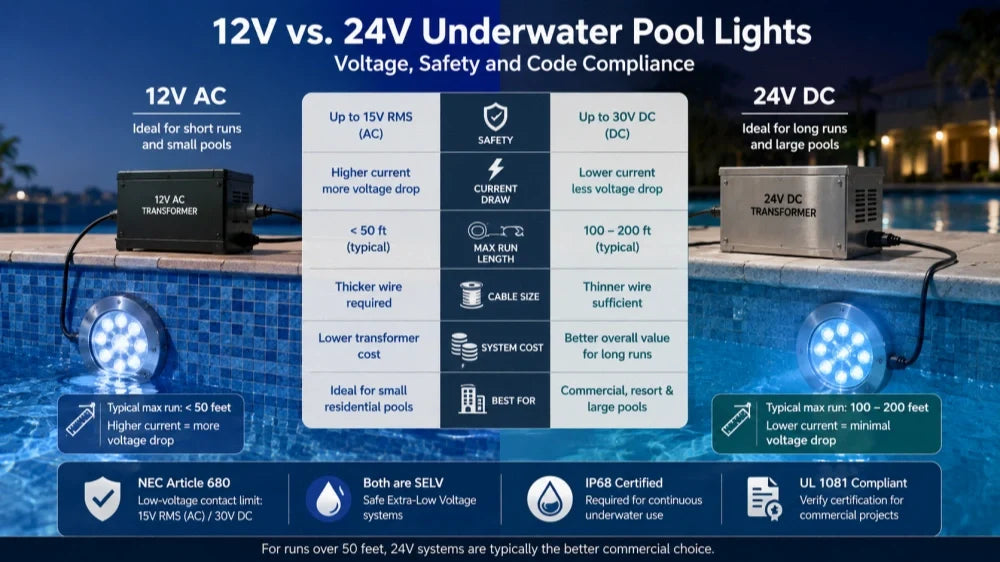

What Is the Difference Between 12V and 24V Underwater Pool Lights?

Both 12V and 24V underwater pool lights operate as Safety Extra-Low Voltage (SELV) systems, meaning they fall well under the electrical contact limits that could cause injury in water. The core technical difference is current draw: at the same wattage, a 24V fixture draws half the current of a 12V fixture, which directly reduces voltage drop across long cable runs and allows thinner, less expensive wire gauges for the same distance. Most residential and small commercial installations still use 12V AC systems, while larger commercial pools, resorts, and municipal facilities increasingly specify 24V DC underwater LED pool lights for runs exceeding 50 feet.

Why Does NEC Article 680 Require Low Voltage for Underwater Lighting?

NEC Article 680 governs electrical installations in and around pools, fountains, and similar bodies of water, and it caps the "low-voltage contact limit" at 15V RMS for AC circuits and 30V DC for continuous current — the threshold below which the human body's resistance in water is unlikely to allow lethal current flow. Per DOE and national electrical code guidance, virtually all commercial pool and fountain lighting now falls under SELV design specifically to stay under this limit, which is why 12V AC and 24V DC are the two dominant platforms in the industry rather than line-voltage (120V) fixtures.

How Does Voltage Choice Affect Cable Sizing and Voltage Drop?

Voltage drop is the single biggest practical difference between the two platforms on a commercial job. A 12V AC fountain lighting circuit is typically limited to runs under 50 feet before dimming becomes visible, while a 24V DC system can often run 100-200 feet on the same wire gauge without meaningful light loss, because doubling voltage halves current for the same wattage load. Industry standard practice for commercial aquatic facilities requires design engineers to calculate voltage drop for every run rather than assume a flat maximum distance, since fixture wattage, total load, and copper gauge all affect the real-world limit.

Additionally, on large projects, integrating high-efficiency commercial pool pumps on a unified control interface is highly simplified when lighting voltage drops are eliminated through robust 24V infrastructure planning.

Which System Is Better for Large Commercial or Resort-Scale Pools?

For hotel, resort, and municipal-scale installations with long cable runs from the equipment room to distant fixtures, 24V DC low voltage fountain lighting is generally the stronger choice because it supports longer runs on thinner wire, reducing both material cost and installation labor. Smaller residential or boutique commercial pools with fixtures clustered close to the transformer can still perform well on 12V AC, particularly where existing 12V infrastructure is already in place and rewiring the entire system isn't cost-effective.

According to HUIQI Water Technology's engineering team, with 19 years of experience supplying pool and fountain lighting across 50+ countries, most commercial projects specifying IP68-rated LED fixtures with runs over 60 feet now default to 24V DC to avoid voltage-drop callbacks during commissioning.

Can 12V and 24V Fixtures Be Mixed on the Same Circuit?

No — 12V and 24V fixtures should never share the same transformer output or circuit, since running a 12V-rated LED on 24V will burn out the driver, and running a 24V fixture on a 12V circuit will produce dim, underpowered output. Every fixture on a given circuit must match the transformer's rated output voltage exactly, and any expansion of an existing system must confirm the transformer's spare capacity (in VA) before adding fixtures, since exceeding the rated load causes the same voltage-drop symptoms as an undersized wire gauge.

To ensure compatibility, consult our guide to sourcing professional Commercial Pool Equipment to streamline multi-voltage and safety device configurations.

Does IP68 Rating and Fixture Lifespan Change Based on Voltage?

IP68 certification — required for any fixture with continuous underwater immersion — is independent of voltage; both 12V and 24V fixtures are available in IP68-rated housings for permanent submersion, and both typically achieve LED lifespans around 50,000 hours, or roughly 17 years at 8 hours of daily use. The voltage platform affects wiring and transformer design, not the fixture's waterproofing or diode longevity, so IP68 compliance and SELV voltage compliance should be verified as two separate line items during procurement.

Is Compliance Documentation Required for Commercial Pool Lighting Projects?

Yes — commercial and municipal projects typically require UL 1081 certification for underwater luminaires and confirmation that the transformer and fixtures meet NEC Article 680 and, internationally, IEC 60364-7-702 requirements before final inspection sign-off. Procurement officers should request UL 1081 documentation and IP68 test reports from the manufacturer as part of the submittal package, not after installation, to avoid rework if a fixture fails to meet local code.

Frequently Asked Questions

Q: What is the difference between SELV and standard low voltage lighting?

A: SELV (Safety Extra-Low Voltage) specifically refers to circuits designed so no part of the system can exceed 30V DC or 15V RMS AC even under fault conditions. Standard "low voltage" landscape lighting (often 12V) isn't automatically SELV-compliant unless it uses an isolated, code-listed transformer designed for pool and fountain use.

Q: How do I choose between 12V and 24V lighting for a commercial pool project?

A: Choose 24V for cable runs over 50 feet or large installations with many fixtures, and 12V for shorter runs or smaller residential-scale features. Always calculate actual voltage drop based on total wattage, wire gauge, and distance rather than relying on a rule of thumb alone.

Q: What does NEC Article 680 compliance mean for underwater lighting procurement?

A: NEC Article 680 compliance means the lighting system stays within SELV voltage limits, uses a UL-listed pool/fountain transformer, and meets bonding and GFCI requirements for the installation. Non-compliant fixtures or transformers can fail inspection and require full replacement before a commercial pool can open.

Q: How long do commercial underwater LED pool lights last?

A: Commercial-grade IP68 LED underwater pool lights typically last around 50,000 hours, equivalent to roughly 17 years at 8 hours of daily operation. Actual lifespan depends on water chemistry, gasket maintenance, and whether the fixture was ever operated dry.

Q: How much energy do LED underwater pool lights save compared to halogen?

A: LED underwater pool lights typically save 70-85% in energy compared to halogen equivalents, while also running cooler and lasting far longer. This reduces both electricity costs and the maintenance burden of frequent bulb replacement in commercial settings.

Q: Can I retrofit a 12V halogen pool light system to 24V LED?

A: Yes, but a full retrofit requires replacing both the fixtures and the transformer, since 12V and 24V components are not interchangeable on the same circuit. Most commercial retrofits also take the opportunity to upgrade wire gauge and verify NEC Article 680 bonding compliance at the same time.

Conclusion

Choosing between 12V and 24V low voltage fountain lighting comes down to cable run length, fixture count, and total system load — both platforms meet NEC Article 680 SELV safety limits, but 24V DC generally performs better on larger commercial and resort-scale installations. For procurement teams managing multi-site or international projects, working with a manufacturer that supplies UL 1081-certified, IP68-rated fixtures in both voltage configurations simplifies specification and reduces compliance risk. Request a Technical Consultation →
