Undersizing or oversizing a commercial pool pump is one of the most common — and most expensive — mistakes in aquatic facility design, and it almost always traces back to an inaccurate TDH calculation. Pool contractors and MEP engineers who size pumps off nameplate GPM alone, without calculating actual system head, routinely end up with pumps that can't hit required turnover rates or that waste energy fighting excess resistance. This guide walks through exactly how to calculate total dynamic head, from static head to pipe friction loss, so procurement teams can specify the correct THP and avoid costly field corrections.

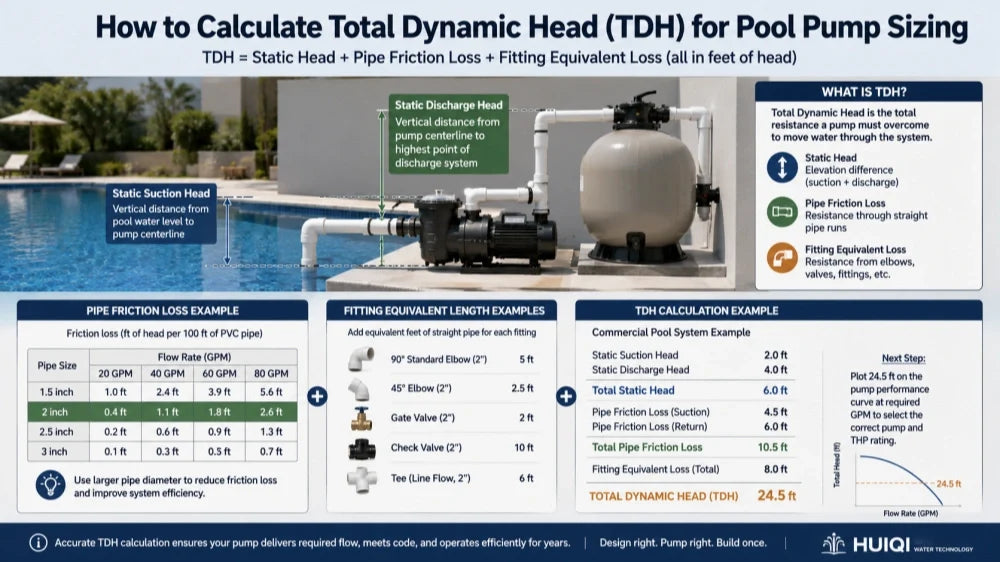

What Is Total Dynamic Head (TDH) and Why Does It Matter?

Total Dynamic Head is the sum of all resistance a pump must overcome to move water through a system, expressed in feet of head rather than PSI. TDH combines three components: static head (the vertical elevation difference between water source and discharge point), friction loss through straight pipe runs, and equivalent friction loss from fittings like elbows, valves, and tees. Getting TDH wrong in either direction has real consequences — an undersized calculation leads to a pump that can't meet the required 6-hour outdoor pool turnover rate, while an oversized calculation results in an oversized pump wasting energy against a system that never needed that much capacity.

To ensure your circulation curves are matched to high-efficiency components, selecting professional-grade commercial pool pumps remains a prerequisite for achieving optimal commercial turnover results.

How Do You Calculate Static Suction Head?

Static suction head is the vertical distance between the water surface at the pump's source (the pool or a suction reservoir) and the pump's centerline, and it can be positive (pump below water level) or negative (pump above water level, requiring the pump to lift water). Static discharge head is measured the same way on the return side, from the pump to the highest point of the return system, such as an elevated spa or water feature. For most in-ground commercial pools with equipment rooms at or near grade, static head is often modest — frequently under 5-10 feet total — but rooftop pools, elevated spas, and multi-level water features can add significant static head that must be measured precisely, not estimated.

What Is Pipe Friction Loss and How Do You Calculate It?

Pipe friction loss is the resistance water encounters moving through straight pipe, and it depends on pipe diameter, material, flow rate (GPM), and total pipe length — larger diameter pipe at the same GPM produces dramatically less friction loss than undersized pipe. Engineers typically use published friction loss tables (in feet of head per 100 feet of pipe, indexed by pipe size and GPM) rather than calculating from first principles on every project; for example, a 2-inch PVC pipe carrying 60 GPM produces roughly 3-4 feet of head loss per 100 feet, while the same flow through 1.5-inch pipe can produce more than double that loss. Undersized pipe is one of the most common causes of pumps underperforming their rated flow in the field.

These friction effects are also tightly tied to filtration systems: specifying compatible commercial pool filters with low pressure drop characteristics is key to keeping cumulative pipe and filter friction losses inside budget limits.

Which Fittings Contribute the Most Equivalent Friction Loss?

Every elbow, tee, valve, check valve, and filter connection adds resistance that engineers convert into "equivalent feet" of straight pipe for calculation purposes — a standard 90-degree elbow, for instance, typically adds an equivalent friction loss similar to several feet of straight pipe of the same diameter, and check valves and multiport valves on sand filters can add even more. Industry standard practice for commercial aquatic facilities requires engineers to itemize every fitting in the suction and return lines rather than applying a flat safety margin, since a system with many fittings (common in retrofit or space-constrained equipment rooms) can accumulate significant additional head that a generic estimate would miss.

How Do You Combine Static Head, Friction Loss, and Fitting Loss Into Total TDH?

Total Dynamic Head is calculated by adding static head, total straight-pipe friction loss (calculated separately for suction and return lines), and total equivalent fitting loss, then summing all three into a single feet-of-head figure. That final TDH number, plotted against the pump's performance curve at the required GPM, determines whether a given pump model — and its associated THP rating — can actually deliver the flow needed for code-compliant turnover. According to HUIQI Water Technology's engineering team, with 19 years of experience supplying pumps for commercial pool projects across 50+ countries, the single most frequent field issue traced back to design is a TDH calculation that omitted fitting losses on the suction side, leading to pumps that cavitate or underperform once installed.

When adding downstream chemical loops, ensure that the hydraulic resistances from custom pool disinfection equipment are factored into the main return circuit calculation to avoid starving back pressure thresholds.

Can An Inaccurate TDH Calculation Affect DOE Compliance and Energy Costs?

Yes — an inaccurate TDH calculation can push a facility toward an oversized pump that technically meets WEF efficiency thresholds on paper but wastes energy in practice by fighting more head resistance than the system actually generates, or a correctly-sized but underpowered pump that runs constantly at high RPM to compensate, negating the energy savings a variable-speed, high-WEF pump is supposed to deliver. Per DOE 2025 federal energy regulations, pump efficiency ratings assume the pump is matched correctly to system head and flow requirements; a mismatched TDH calculation undermines the real-world energy savings the WEF rating promises, even if the pump itself meets the regulatory minimum.

Is Professional TDH Calculation Necessary for Small Commercial Pools?

Even small commercial pools benefit from a proper TDH calculation rather than a rule-of-thumb pump selection, because undersized pipe or an unusually long suction run can produce significant head loss even in a modest-sized facility. A 20,000-gallon commercial pool requiring a 6-hour turnover needs roughly 56 GPM of flow, but the THP required to deliver that flow can range widely — from under 1 THP to well over 2 THP — depending entirely on the system's actual TDH, which is why pump sizing should never be based on pool volume alone.

Frequently Asked Questions

Q: What is the difference between TDH and static head?

A: Static head is only the vertical elevation difference in a system, while TDH adds pipe friction loss and fitting loss on top of static head for the total resistance a pump must overcome. A system can have zero or even negative static head and still require significant TDH due to long pipe runs and multiple fittings.

Q: How do I choose the right pool pump using a TDH calculation?

A: Calculate total TDH for your specific system, then select a pump whose performance curve delivers your required GPM at that exact TDH value, not just at the pump's best-case rated flow. Cross-reference the resulting THP against DOE 2025 WEF requirements to confirm the model is both hydraulically and legally compliant.

Q: What does DOE 2025 compliance mean for pump sizing with TDH?

A: DOE 2025 sets minimum WEF efficiency thresholds by pump category, but those ratings only reflect real-world savings if the pump is correctly matched to the system's actual TDH. A compliant pump sized against the wrong TDH can still waste energy in practice despite meeting the regulatory minimum on paper.

Q: How often should TDH be recalculated for an existing pool system?

A: TDH should be recalculated any time filtration, piping, or fittings are modified, and it's good practice to reverify TDH during a pump replacement rather than matching the old pump's specs exactly. Pipe scaling and aging fittings can gradually increase friction loss over an 8-12 year pump lifespan.

Q: How much does an inaccurate TDH calculation cost in wasted energy?

A: An oversized pump running against an overestimated TDH can waste a meaningful share of its energy consumption fighting resistance the system doesn't actually have, often adding hundreds of dollars annually in unnecessary electricity costs for a mid-size commercial pool. Accurate TDH calculation is one of the lowest-cost ways to protect the ROI of a high-WEF variable-speed pump investment.

Conclusion

Accurate TDH calculation — combining static head, pipe friction loss, and fitting equivalent loss — is the foundation of correct commercial pump sizing, directly affecting both turnover compliance and the real-world energy savings a DOE 2025-compliant pump can deliver. For contractors and developers managing multi-site projects, partnering with a manufacturer that offers technical sizing support alongside OEM customization and bulk procurement reduces the risk of costly field corrections. Request a Technical Consultation →
