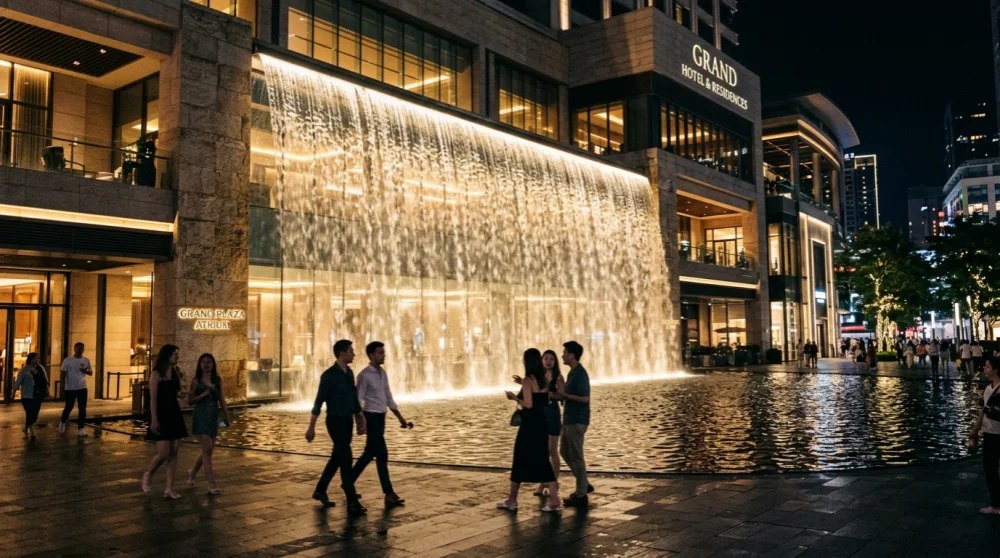

How Waterfall Fountain Systems Work
SUJIAHUI
◆ Direct Answer
Waterfall fountains operate via pump-driven circulation systems that push water through controlled outlets to form a continuous water curtain. A pump draws water from a basin, forces it through supply pipework to a distribution header, releases it evenly across a weir or nozzle line, and the falling water returns to a basin where it is filtered and recirculated continuously.
Understanding how a waterfall fountain works is essential before specifying, purchasing, or maintaining one. Unlike a jet fountain that drives water upward under pressure, a waterfall fountain is a gravity-assisted system: a pump lifts water to an elevated header, and the design of the outlet — blade width, nozzle type, flow rate — determines what the falling water looks like.
This guide breaks down every engineering stage of a commercial waterfall fountain system in sequence: the pump, flow control, structural design, materials, filtration, and maintenance requirements. It is intended for architects, project developers, engineers, and facility managers evaluating or specifying a commercial water feature.
How Does the Complete Waterfall Fountain System Loop Work?
Every waterfall fountain operates as a closed-loop recirculating system. Water is never 'used up' — it cycles continuously through the same circuit. The six stages of that circuit are:
Step 1 · Basin / Reservoir
The water source. All water in the system starts and ends here. The basin must be large enough to hold the system's total volume, including water in transit through the pipework and header. For a 2-metre-wide sheer descent, a minimum basin depth of 400–600 mm is typical.
Step 2 · Pump
The engine of the system. A submersible or dry-installed pump draws water from the basin and forces it through the supply pipe. Pump selection is driven by two parameters: flow rate (litres per minute) and head pressure (metres). Both must match the specific waterfall dimensions.
Step 3 · Supply Pipework
Carries water from the pump to the distribution header. Pipe diameter must be sized to minimise friction head loss — typically 0.5–1.5 m of head lost per 10 m of pipe run, which must be factored into pump sizing.
Step 4 · Distribution Header
A horizontal manifold at the top of the waterfall structure. The header must be hydraulically balanced — equal pressure at every point across its width — to produce an even, uniform water sheet. An unbalanced header is the most common cause of a streaky, uneven curtain in completed installations.
Step 5 · Weir / Nozzle Outlet
The visible edge from which water falls. Options include: precision stainless steel blade (sheer descent), slotted nozzle panel (curtain effect), perforated pipe (fan spray), or shaped stone edge (natural cascade). Each produces a different falling-water aesthetic.
Step 6 · Filtration Return
Fallen water collects in the return basin, passes through a filter and chemical treatment system, and is recirculated by the pump. The full water volume should turn over through the filtration system every 4–8 hours for commercial installations.
What Pump System Does a Waterfall Fountain Use?
The pump is the most consequential engineering decision in a waterfall fountain specification. An undersized pump produces a weak, uneven sheet; an oversized pump wastes energy, creates noise, and may damage nozzle components over time.
Submersible vs. Dry-Installed Pumps
| Factor | Submersible Pump | Dry-Installed Centrifugal Pump |
|---|---|---|
| Location | Inside the basin — submerged | Plant room — outside water |
| Best For | Small to mid-scale features | Large-scale or high-flow systems |
| Lifespan | 8–12 years (commercial grade) | 10–15 years |
| Maintenance | Requires basin drainage for service | Accessible without draining |
| Noise | Quieter (water-dampened) | Louder — requires acoustic plant room |
| Cost | Lower upfront | Higher upfront, lower maintenance cost |
VFD (Variable Frequency Drive)
A VFD attached to the pump motor is now considered standard on all commercial waterfall fountain installations. A VFD modulates pump RPM in real time, allowing operators to adjust flow rate — and therefore the visual character of the water curtain — without manual valve intervention. The energy saving over constant-speed operation is 40–60%, making a VFD investment recoverable in 1–3 years on most commercial projects. HuiQi Fountain's HQ-AP commercial submersible pump range is fully VFD-compatible and supplied with dry-run protection, thermal overload cutout, and multi-phase motor windings for continuous commercial duty.
Pump Sizing Formula
- Sheer descent / blade: 12–18 L/min per 300 mm of blade width
- Natural rock cascade: 20–40 L/min per metre of flow width
- Grotto / cave system: 50–150 L/min depending on feature volume
- Head pressure allowance: add 0.5–1.5 m per 10 m of supply pipe run
- Safety factor: spec pump to 120% of calculated demand — never run at maximum rated output continuously
How Is Water Flow Controlled in a Waterfall Fountain?
Flow control is what separates a professionally engineered waterfall from an amateur installation. Three mechanisms work together to produce a clean, consistent water curtain:
- Distribution header balancing — the header must be sized and baffled to equalize pressure at every outlet point; industry standard is to oversize the header internal diameter and use an internal baffle plate to distribute flow evenly before the nozzle line
- Gate or ball valve on each supply branch — allows fine-tuning of flow to individual sections of a wide curtain; essential for features wider than 2 metres
- VFD pump speed control — the primary real-time flow adjustment tool; allows the curtain to be thickened or thinned through the control panel or BMS integration
For curtain-style features, the nozzle line itself is the final precision component. HuiQi Fountain's water film nozzle range is machined to ±0.1 mm tolerance across the full blade width, ensuring the water sheet begins as a perfectly uniform film at the outlet — critical for the clean, glass-like sheer descent effect that is the dominant aesthetic in commercial design.
What Structural Requirements Does a Waterfall Fountain Need?
The visible waterfall surface — blade, rock face, or curtain panel — is supported by a structure that must handle both static and dynamic engineering loads. Commercial waterfall fountain structures must account for:
- Static load: total weight of water in the distribution header, supply pipework, and any stone or GRC cladding on the structure face
- Dynamic load: pump vibration and the impact force of falling water on the return basin floor — particularly significant for falls above 1.5 m
- Waterproofing membrane: applied to all concrete or masonry elements in the water path; a failed membrane is the most expensive post-installation repair in commercial fountain engineering, typically requiring full feature drain-down and surface strip-back
- Expansion joints: required wherever the waterfall structure connects to the main building envelope to prevent cracking from thermal movement — especially important for outdoor installations in climates with >20°C seasonal temperature range
- Access provisions: maintenance access to the distribution header, pipework unions, and pump must be designed in at the structural stage; retrofitting access panels is significantly more costly
According to HuiQi Fountain's structural engineering team, with 18 years of commercial water feature delivery across 50+ countries, the most common avoidable structural failure in waterfall fountain installations is inadequate waterproofing at the header-to-wall junction — a detail that costs under $200 to specify correctly and typically $15,000–$40,000 to repair after the fact. Explore our completed commercial waterfall fountain projects to see how structural integration is handled across different building types and scales.
What Materials Are Used in Waterfall Fountain Construction?
Material selection determines not only aesthetic finish but also corrosion lifespan, maintenance frequency, and structural weight. The primary engineering considerations are water chemistry (fresh, chlorinated, saline) and climate.
| Material | Application | Key Engineering Property | Lifespan |
|---|---|---|---|
| 316L Stainless Steel | Blades, nozzle headers, fittings | Chloride-resistant, weld-able | 20–30 years |
| Tempered Glass / Acrylic | Transparent curtain panels, backlit walls | Lightweight, high clarity | 10–15 years |
| Natural Stone (Granite / Slate) | Rock cascades, basin linings | High density, slip-resistant surface | 20–40 years |
| GRC (Glass Reinforced Concrete) | Rock formations, custom shapes | 60–70% lighter than solid concrete | 20–30 years |
| Waterproofing Membrane | All concrete/masonry surfaces | Prevents structural water ingress | 10–20 years (reseal) |
316L stainless steel is the material of choice for all water-contact structural fittings and nozzle components in commercial installations. The '316L' designation specifies a molybdenum alloy with low carbon content — the combination that provides superior resistance to chloride-induced corrosion, which is the primary degradation mechanism in fountain water with standard chlorination chemistry.
How Does LED Lighting Integrate With a Waterfall Fountain System?
Lighting is specified as a separate but integrated system, powered and controlled independently from the pump circuit. All electrical components in direct or splash contact with water must comply with two non-negotiable standards:
- IP68 certification — rated for continuous immersion beyond 1 metre depth
- 12V or 24V DC operating voltage — the international safety standard for public aquatic environments
RGB and RGBW LED fixtures controlled via DMX512 protocol are now standard for commercial waterfall fountain lighting, enabling millisecond-accurate colour transitions synchronized to music, brand schedules, or building management system (BMS) triggers. HuiQi Fountain's IP68 underwater LED lighting range is rated for 50,000 hours of service — approximately 17 years at 8 hours per day — and uses 70–85% less energy than the legacy halogen fixtures it replaces.
How Do You Maintain a Commercial Waterfall Fountain System?
A properly maintained commercial waterfall fountain has a structural lifespan of 20–30 years. Annual maintenance costs typically run at 5–10% of the original capital cost. The maintenance schedule for a commercial installation is structured across four time horizons:
Monthly
- Water chemistry check: pH target 7.2–7.8; free chlorine 1.0–3.0 mg/L; turbidity <0.5 NTU
- LED fixture visual inspection: look for seal degradation, colour shift, or dead pixels indicating moisture ingress
- Strainer/pre-filter cleaning: removes debris before it reaches the pump impeller
Quarterly
- Pump impeller inspection and lubrication of mechanical seals
- Full nozzle or blade descaling: mineral deposits from hard water reduce flow uniformity if allowed to accumulate
- Pipework pressure test: confirms no developing leaks in joints or unions
Annually
- Complete pump service: replace wear rings, shaft seals, and bearings according to manufacturer schedule
- Waterproofing membrane inspection: check for cracking, delamination, or pin-hole ingress — reseal as required
- Control system firmware update and DMX programming review
- Full water system drain, basin clean, algae removal, and fresh refill
Every 3–5 Years
- Pump overhaul or full replacement depending on operating hours and condition assessment
- LED fixture replacement planning: at 50,000 hours, plan a full LED swap rather than reacting to individual failures
- Structural inspection by a water feature engineer
For hotels and resorts with multiple water features across a large property, HuiQi Fountain provides structured custom music fountain service and maintenance packages that consolidate all pump service, LED checks, water chemistry monitoring, and structural inspections into a single annual contract — reducing internal facility management overhead and ensuring continuous warranty coverage.
Frequently Asked Questions: How Waterfall Fountains Work
Q1: How does a waterfall fountain work?
A pump draws water from a basin and forces it through supply pipework to a distribution header at the top of the structure. The header releases water evenly across a weir, blade, or nozzle line, which falls as a continuous curtain back into the basin below. A filtration system treats and recirculates the water continuously in a closed loop.
Q2: What pump is used in a waterfall fountain?
Commercial waterfall fountains use either a submersible pump (installed inside the basin) or a dry-installed centrifugal pump (in a plant room). Submersible pumps suit small to mid-scale installations with a typical lifespan of 8–12 years. Both types are paired with a VFD (Variable Frequency Drive) to allow real-time flow adjustment and reduce energy consumption by 40–60%.
Q3: How much water does a waterfall fountain need?
Waterfall fountains operate as closed-loop recirculating systems — the same water is reused continuously. Fresh water is only added to replace evaporation, typically 1,000–3,000 litres per day for a medium-scale outdoor feature in a warm climate. The full system volume should recirculate through filtration every 4–8 hours.
Q4: Why is my waterfall fountain curtain uneven?
An uneven or streaky water curtain is almost always caused by an unbalanced distribution header — unequal pressure across the blade width creates heavier flow at one side than the other. Secondary causes include mineral scale build-up on the nozzle line, a partially blocked supply pipe, or a pump operating below specified flow rate. All three are maintenance-resolvable without structural modification.
Q5: How long does a commercial waterfall fountain last?
A commercial-grade waterfall fountain structure lasts 20–30 years with appropriate maintenance. Submersible pump components typically require overhaul every 3–5 years and full replacement at 8–12 years. LED lighting has a rated lifespan of 50,000 hours (approximately 17 years at 8 hours per day). Annual maintenance cost typically runs 5–10% of the original capital investment.
