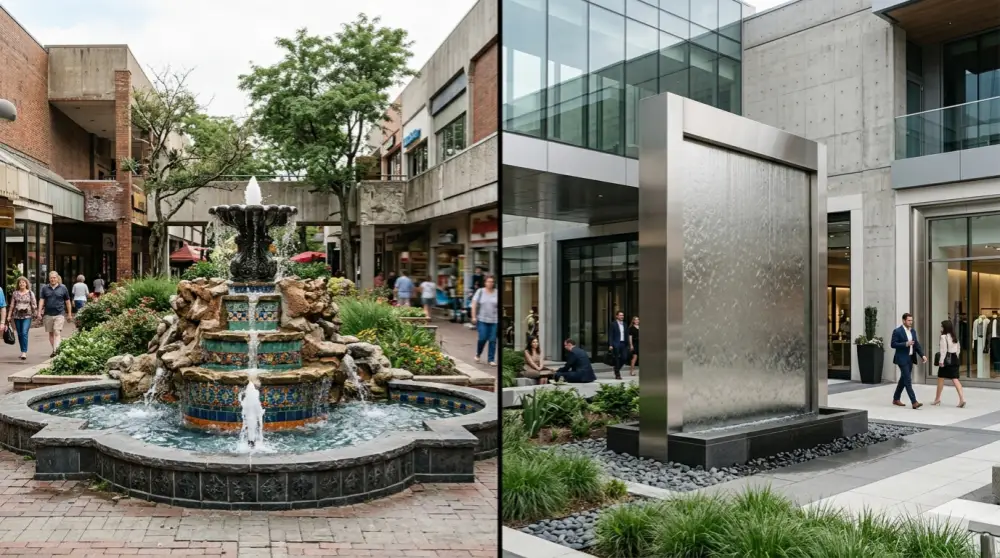

Commercial water wall design has changed more in the last five years than in the previous two decades combined. The ornamental, rock-and-basin fountains that once defined hotel and mall design are being steadily replaced by something more architectural: flat, vertical water walls that read as part of the building envelope rather than a decoration placed in front of it.

This shift is driven by three converging trends — minimalist architectural design language, the maturity of LED and DMX lighting control, and growing pressure on commercial buildings to demonstrate sustainable water and energy practices. This article breaks down where commercial water wall design is heading, the materials and lighting systems driving it, and where these features are being deployed most successfully.



What Are the Current Design Trends for Water Wall Fountains?

Three trends define commercial water wall design in 2026:

1. Minimalism Over Ornamentation

Flat blade and panel walls have replaced rock formations and tiered basins as the dominant commercial style. A single uninterrupted sheet of water across a clean stainless steel or glass panel now reads as more premium than decorative stonework — a direct result of broader minimalist architectural trends moving from residential into commercial and hospitality design.

2. Water Walls as Structural Elements

Rather than standing in front of a wall, water walls are increasingly built directly into it — replacing a section of partition, becoming a feature within a reception desk backdrop, or forming a transparent divider between two zones. This integration approach reduces footprint while increasing visual impact per square metre of floor space.

3. Dynamic, Programmable Lighting

LED and DMX512 control have made it possible to change a water wall's character throughout the day — a soft, ambient white during business hours, then a branded colour-programmed lighting sequence after hours. This flexibility has made lighting, not water flow, the primary design variable architects now specify around.



What Materials Define Modern Water Wall Fountains?

Material choices have narrowed considerably compared to a decade ago, converging around a small set of options that support the minimalist trend:

• 316L Stainless Steel — the dominant material for commercial water wall panels; brushed or mirror-polished finishes both remain popular, chosen for corrosion resistance and a clean architectural look
• Tempered Glass and Acrylic — used for transparent or backlit water curtain panels, particularly where the wall needs to divide space without fully blocking sightlines
• Natural Stone (Reduced Use) — still specified for resort and heritage-style projects, but declining in mainstream commercial design in favour of metal and glass
• GRC (Glass Reinforced Concrete) — used selectively where a textured or sculptural surface is still desired without the weight of solid stone



For flat-panel and curtain-style water walls specifically, evenly distributed flow depends on precision fountain nozzles and water film systems — without a properly engineered distribution header, even the cleanest stainless steel panel will produce an uneven, streaky water sheet rather than the smooth, continuous curtain the minimalist trend demands.

How Is LED Lighting Integrated Into Water Wall Fountains?

LED integration has moved from an optional add-on to the central design feature of most new commercial water wall installations. Three integration approaches are now standard:

• Backlighting — fixtures positioned behind a translucent panel illuminate the water sheet itself, creating a glowing wall effect popular in office reception and retail entrance design
• Edge lighting — thin LED strips along the panel's top or side edges create a halo effect without illuminating the water directly, often used for a more subtle, architectural look
• Embedded colour-changing fixtures — RGB or RGBW units controlled via DMX512, enabling synchronized colour transitions, brand-colour matching, and scheduled evening programming



All fixtures in direct or splash contact with water must carry IP68 certification for permanent immersion beyond 1 metre depth, and operate at 12V or 24V DC for public safety compliance. Architects specifying IP68 underwater LED lighting for commercial water walls should confirm both the certification level and the control protocol (standalone, RGB, or full DMX512) before finalizing a lighting plan, since retrofitting control wiring after installation is significantly more costly than specifying it from the outset.



LED fixtures rated for 50,000 hours deliver approximately 17 years of service at typical commercial operating hours, with 70–85% lower energy consumption than legacy halogen lighting — a meaningful data point for sustainability reporting, which leads directly into the next trend.

How Are Water Wall Fountains Becoming More Sustainable?

Sustainability has become a procurement requirement, not a marketing preference, for commercial water features. Three areas are driving this shift:

• Closed-loop recirculation — modern water walls recirculate the same water continuously, with fresh water added only to offset evaporation, typically 1,000–3,000 litres per day for a medium-scale outdoor feature
• VFD-controlled pumps — VFD-controlled commercial pumps reduce pump energy consumption by 40–60% compared to constant-speed operation by matching flow rate to actual demand in real time



Low-energy LED lighting — replacing halogen and incandescent fixtures with IP68 LED systems cuts lighting energy use by 70–85% while extending fixture lifespan to roughly 17 years



According to HuiQi Fountain's engineering team, with 18 years of commercial water feature delivery across 50+ countries, sustainability reporting requirements from corporate tenants and hotel brand standards are now a stated specification criterion in a growing share of new commercial water wall briefs — a shift that was rare as recently as five years ago.



Where Are Water Wall Fountains Used Today?

Application	Typical Design Approach	Primary Purpose
Shopping Malls	Large-format backlit panel at atrium or entrance	Landmark, wayfinding, dwell time
Public Plazas	Stainless steel or stone wall, civic scale	Public art, passive cooling
Corporate Offices	Minimalist panel behind reception desk	Brand signal, acoustic softening
Hotels / Resorts	Backlit glass curtain, lobby or spa	Premium positioning, guest experience
Retail Storefronts	Compact LED-lit panel at entrance	Visual draw, social media engagement



Corporate offices in particular have become one of the fastest-growing application categories — a water wall positioned behind a reception desk does double duty as a brand statement and an acoustic buffer for open-plan layouts. Browse our commercial water wall project case studies to see how these applications differ across mall, office, and hospitality settings.
