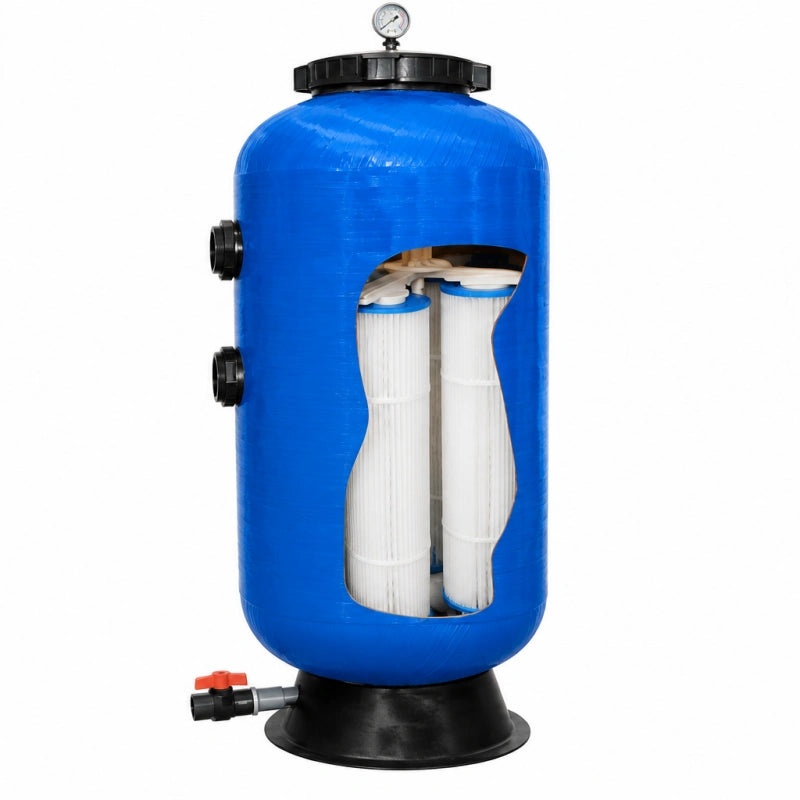

HQ-BZX Series Cartridge & Diatomaceous Earth (DE) Filter
General Introduction: The HQ-BZX series is a versatile filtration solution designed for superior performance and durability in pool environments. Product Features: Robust Construction: The tank body is equipped with a...
General Introduction:The HQ-BZX series is a versatile filtration solution designed for superior performance and durability in pool environments.
Product Features:
Robust Construction: The tank body is equipped with a UV-resistant protective layer and reinforced with fiberglass winding for enhanced strength.
Standard Fittings: Features 2" or 63mm PVC inlet and outlet unions for easy connection.
Flexible Valve Options: The Diatomaceous Earth (DE) tank can be paired with either a 6-way multiport valve or a push-pull (slide) valve.
Easy Maintenance: Both replacement paper cartridges and DE filter elements are designed for simple installation and replacement.
Interchangeable Elements:

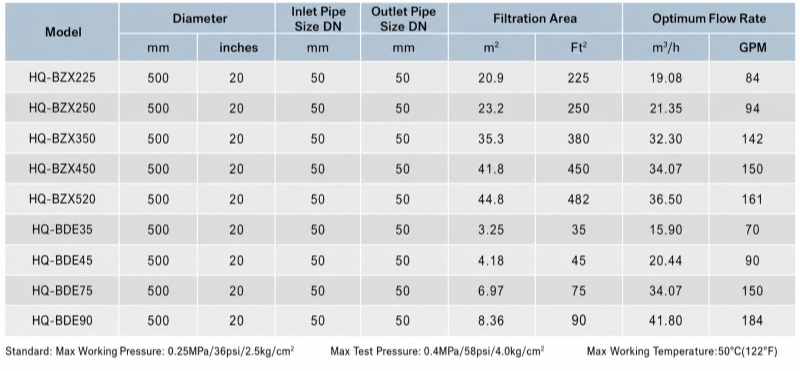

Paper cartridges are available in specifications of 20.9, 23.2, 35.3, and 41.8 square meters, and are interchangeable with DE filter elements.
DE filter elements are available in four specifications: 3.25, 4.18, 6.97, and 8.36 square meters, and are interchangeable with paper cartridges.
User-Friendly Design: A wide transparent top cover allows for easy observation of the filtration process and convenient insertion or removal of filter elements.
Advanced Internal Engineering: A unique internal piping design replaces traditional pipe connections, optimizing flow.
Efficient Drainage: Equipped with a long-type drain pipe to effectively discharge debris from the tank.
