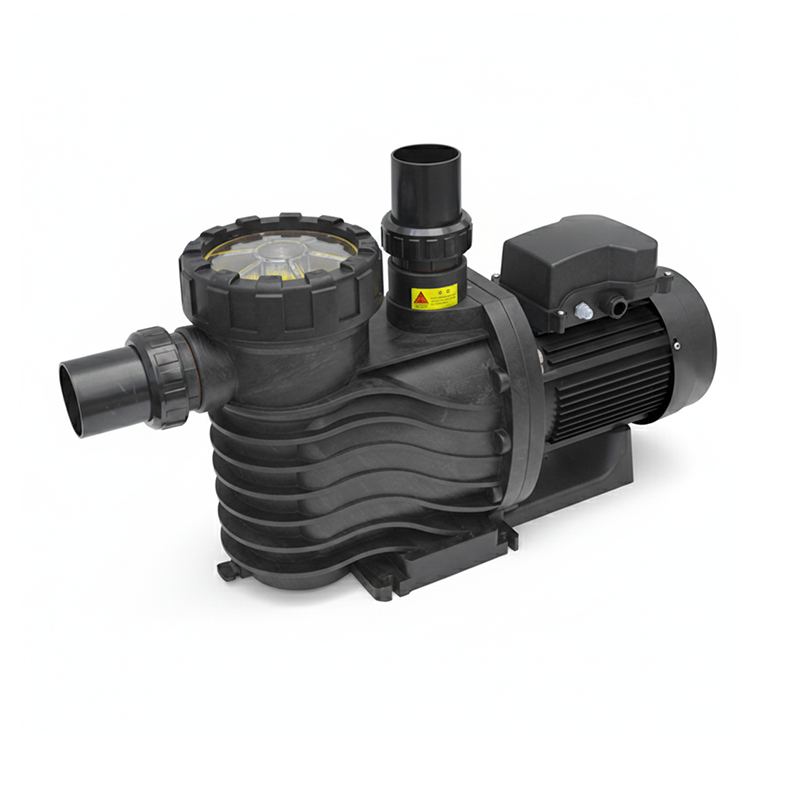

HQ-KAP Series: Specialized Pump for Hot Springs and Seawater

Product Overview: The HQ-KAP series is a professional centrifugal pump specifically designed for the demanding conditions of hot spring baths and seawater applications. It combines high flow capacity with extreme...
Product Overview: The HQ-KAP series is a professional centrifugal pump specifically designed for the demanding conditions of hot spring baths and seawater applications. It combines high flow capacity with extreme durability.
Key Features:
  • Superior Protection: IP55 protection rating for safe operation in humid environments.
  • High Performance: Delivers large flow rates while maintaining ultra-quiet operation.
  • Extreme Pressure Resistance: Built to withstand high working pressures up to 6kg/cm².
  • Premium Materials: Equipped with a 316 stainless steel shaft and graphite/ceramic mechanical seals for maximum corrosion resistance.
  • Thermal Tolerance: Specifically designed for hot spring applications with temperatures up to 60°C.
