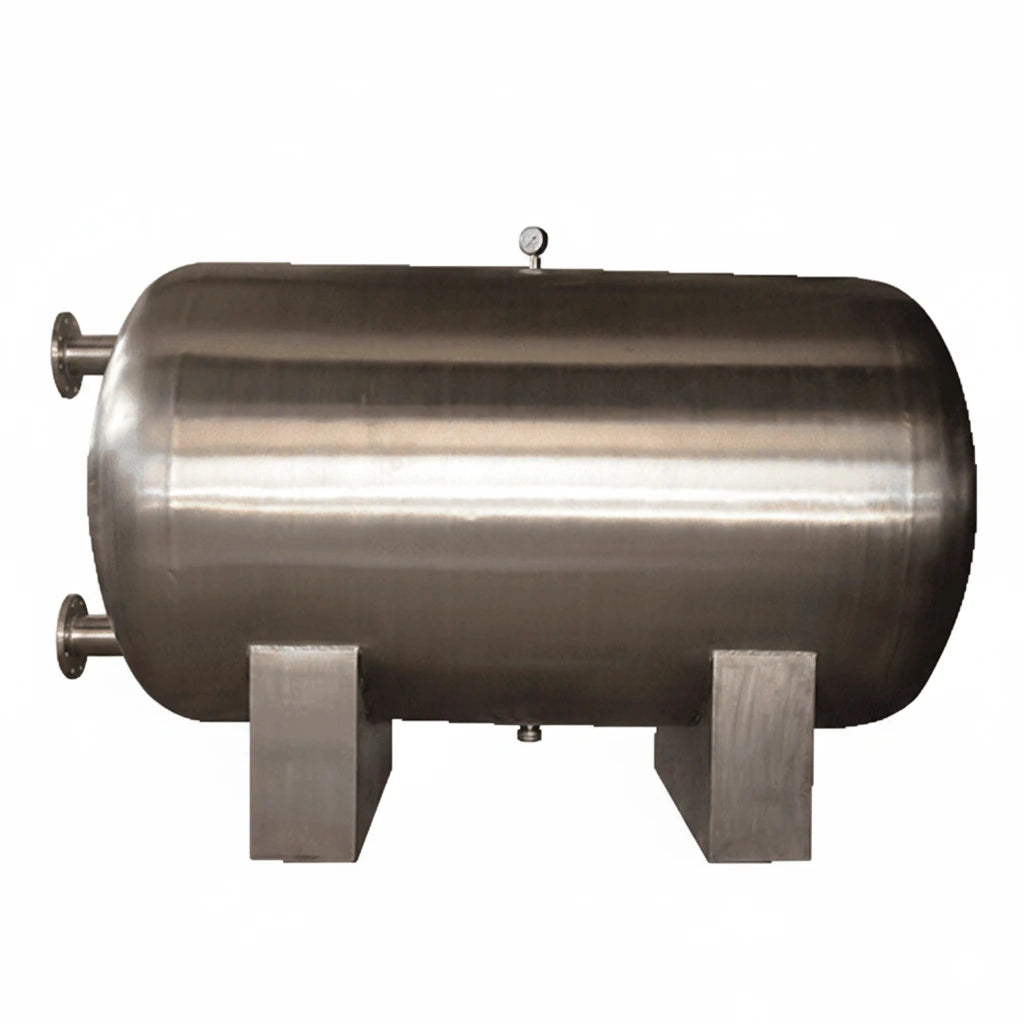

HQ-SHF Series Large Stainless Steel Horizontal Quartz Sand Filter

Product Features: Premium Material: The tank is constructed from high-quality stainless steel, compatible with both seawater and freshwater. It is ideal for swimming pools, hot springs, spas, water parks, and...
Product Features:
  • Premium Material: The tank is constructed from high-quality stainless steel, compatible with both seawater and freshwater. It is ideal for swimming pools, hot springs, spas, water parks, and aquariums.
  • Eco-Friendly: Features an excellent surface finish that is non-polluting to water quality and the environment.
  • Superior Durability: Resistant to corrosion, acids, alkalis, wear, UV rays, and oxidation. It is designed to perform in harsh climates and working environments.
  • Long Service Life: Robust tank construction ensures long-lasting durability.
  • Integrated Accessories: Equipped with a pressure gauge, manual air release valve, and drain valve.
  • Customizable: Different specifications can be customized according to customer requirements.

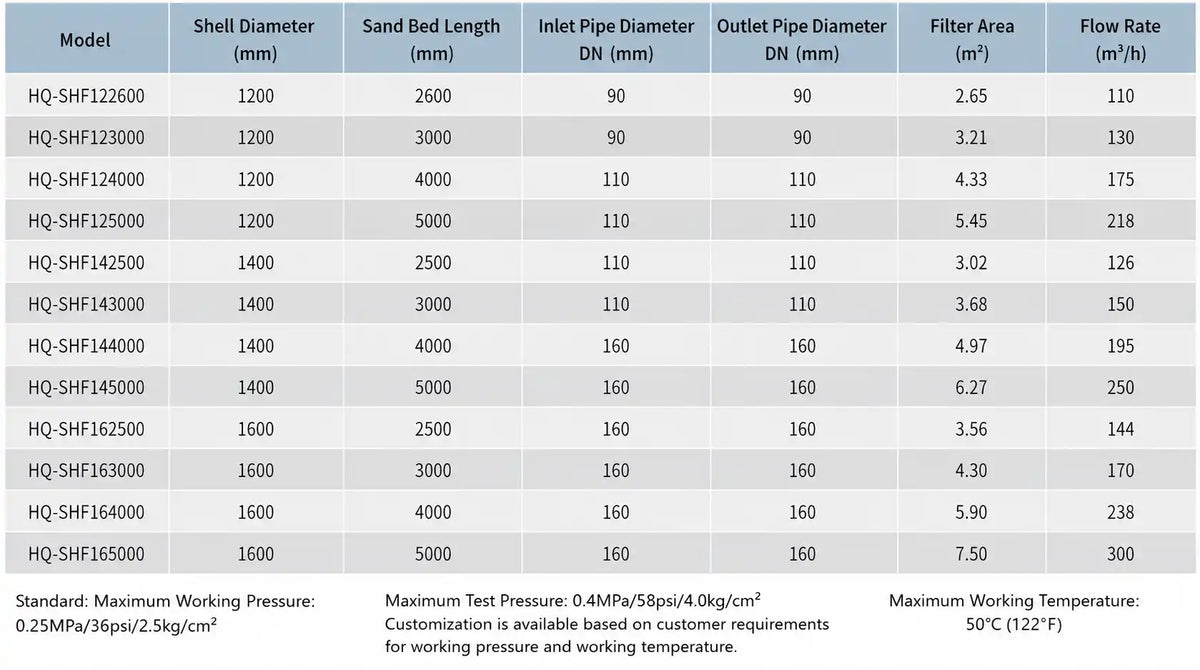

Model Tank Dia.(mm) Tank Length(mm) Inlet DN(mm) Outlet DN(mm) Filter Area(m²) Flow Rate(m³/h) 0.5-0.8mm Sand(kg)
HQ-SHF122500 1200 2600 90 90 2.65 110 1750
HQ-SHF123000 1200 3000 90 90 3.21 130 2325
HQ-SHF124000 1200 4000 110 110 4.33 175 2950
HQ-SHF125000 1200 5000 110 110 5.45 218 3500
HQ-SHF142500 1400 2500 110 110 3.03 126 2825
HQ-SHF143000 1400 3000 110 110 3.68 150 3450
HQ-SHF144000 1400 4000 160 160 4.97 195 4500
HQ-SHF145000 1400 5000 160 160 6.27 250 5650
HQ-SHF162500 1600 2500 160 160 3.56 144 3870
HQ-SHF163000 1600 3000 160 160 4.3 170 4750
HQ-SHF164000 1600 4000 160 160 5.9 238 5300
HQ-SHF165000 1600 5000 160 160 7.5 300 6850
