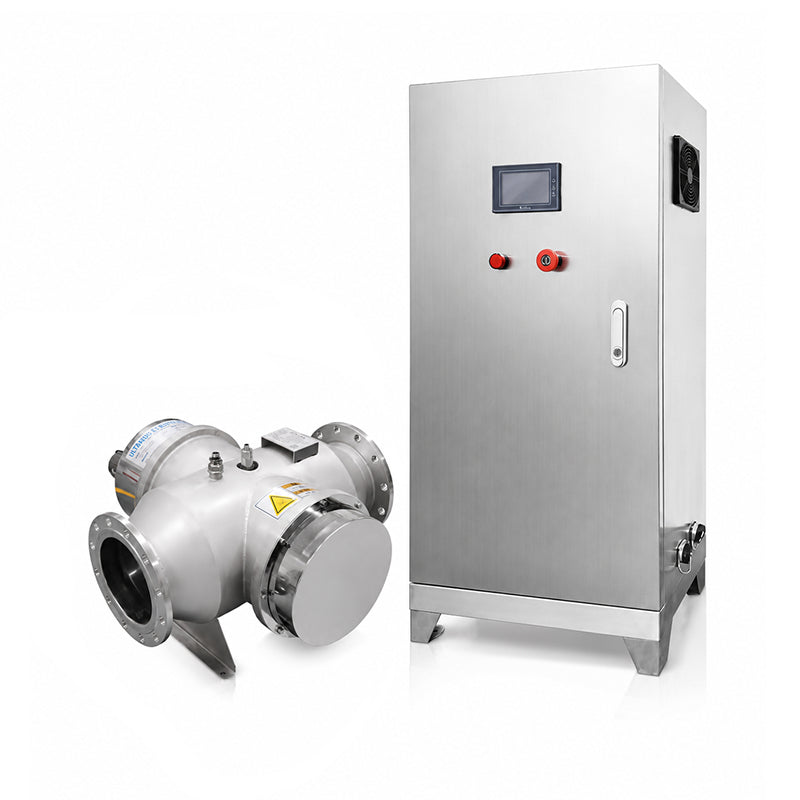

HQ-UUVC Series Medium Pressure Ultraviolet (UV) Disinfection System
Product Introduction: The HUIQI Medium Pressure UV system is a highly efficient disinfection solution. Unlike traditional systems, the light intensity emitted by medium pressure UV lamps is dozens of times...
Product Introduction:The HUIQI Medium Pressure UV system is a highly efficient disinfection solution. Unlike traditional systems, the light intensity emitted by medium pressure UV lamps is dozens of times higher than that of low-pressure lamps. With a broad output spectrum ranging from 230nm to 370nm, it effectively eradicates all known bacteria and viruses. By physically destroying the DNA of microorganisms and breaking them into fragments, the system ensures pathogens lose their ability to reproduce and survive.
In swimming pool environments, HUIQI Medium Pressure UV not only disinfects but also effectively decomposes combined chlorine (chloramines), reducing chemical byproducts and creating a more comfortable, healthy aquatic environment.
Core Features:
High-Output UV Lamps: Equipped with premium imported UV lamps (e.g., LightSources), providing high power output to reduce the number of lamps required and handle large-scale water volumes.
Real-time Temperature Monitoring: Integrated sensors monitor water temperature in real-time, ensuring optimal operation within the 0-45°C range.
Precision UV Intensity Sensors: Dedicated sensors monitor the germicidal effectiveness of the UV radiation. The data can be integrated with PC or PLC systems for intelligent facility management.
Premium Quartz Sleeves: High-quality quartz sleeves protect the UV lamps while ensuring an ultra-high UV transmittance of over 90%.
Automatic Self-Cleaning System: Features a programmable automatic cleaning mechanism that operates based on sensor readings. This ensures the quartz sleeves remain clean without manual intervention or system downtime.
Key Advantages:
Broad-Spectrum Eradication: Effectively eliminates chlorine-resistant microorganisms such as Legionella, E. coli, Cryptosporidium, and Giardia.
Irreversible Disinfection: Permanently destroys microbial DNA, preventing photoreactivation or "resurrection," ensuring the water remains safe long-term.
Secondary Pollution-Free: The physical disinfection process adds no chemicals to the water, maintaining the water's natural composition and odor.
Decomposition of Chloramines: Actively reduces mono-chloramine, di-chloramine, and tri-chloramine, effectively lowering the formation of carcinogenic trihalomethanes (THMs).
Low Operational Costs: Designed for high efficiency and low maintenance, with an average energy consumption of only 4 Watts per cubic meter of treated water.
Streamlined Installation: The modular, compact design fits complex equipment rooms and supports both horizontal and vertical pipeline installation.
Minimal Footprint: A system capable of treating 10,000 tons of water per day requires only 6 square meters of operational space.
