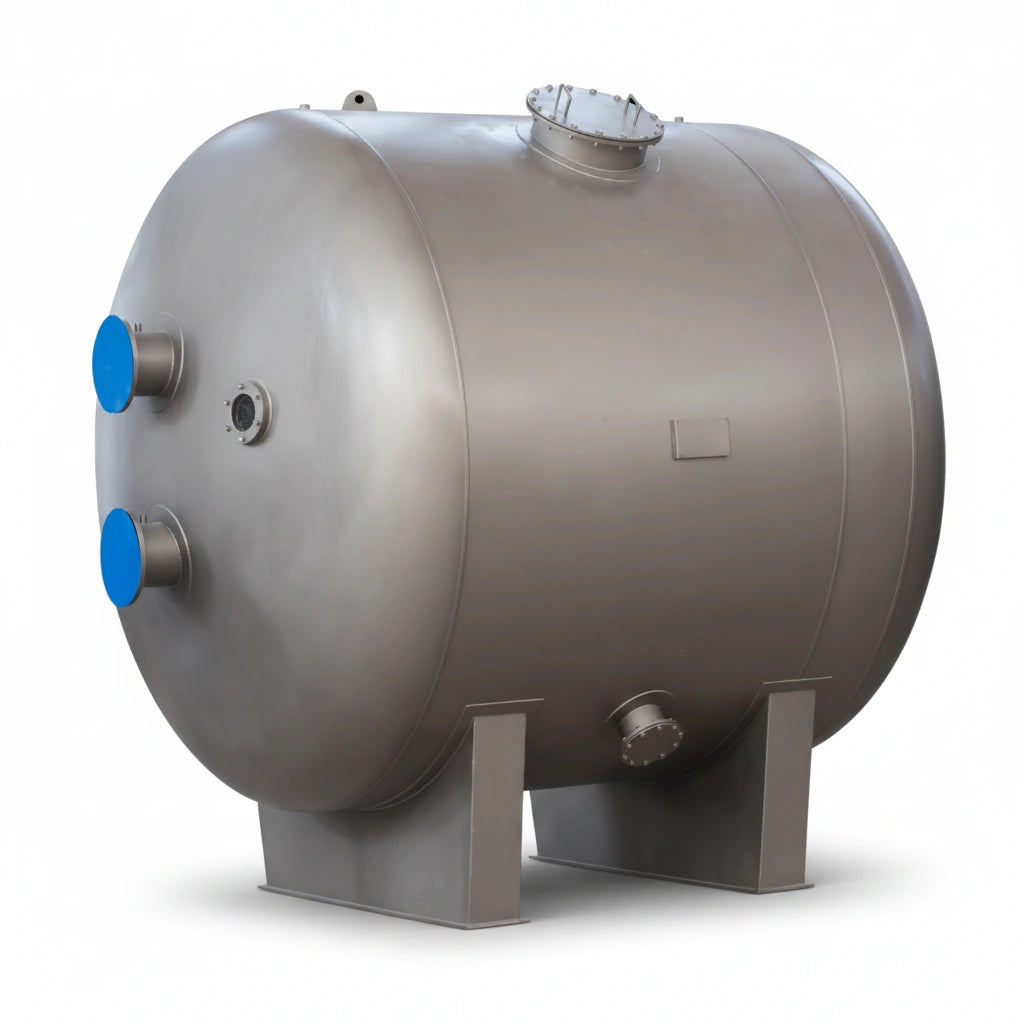

HQ-WSSG Series Horizontal Stainless Steel Quartz Sand Filter

Product Features: Premium Material: Constructed from high-quality stainless steel, compatible with both seawater and freshwater. Superior Durability: Excellent chemical corrosion resistance, wear resistance, UV protection, oxidation resistance, and sun-proof properties....
الفئات ذات الصلة
View details
Product Features:
  • Premium Material: Constructed from high-quality stainless steel, compatible with both seawater and freshwater.
  • Superior Durability: Excellent chemical corrosion resistance, wear resistance, UV protection, oxidation resistance, and sun-proof properties. It is suitable for various harsh climates and working environments.
  • High Efficiency: The unique design of the water distributor and collector ensures balanced flow and high water treatment efficiency.
  • Robust Construction: All hardware is made of stainless steel, ensuring a sturdy tank, long service life, and extreme durability.
  • High Performance: Excellent performance under high temperature and high pressure conditions.
  • Customizable: Different specifications can be customized according to specific customer requirements.

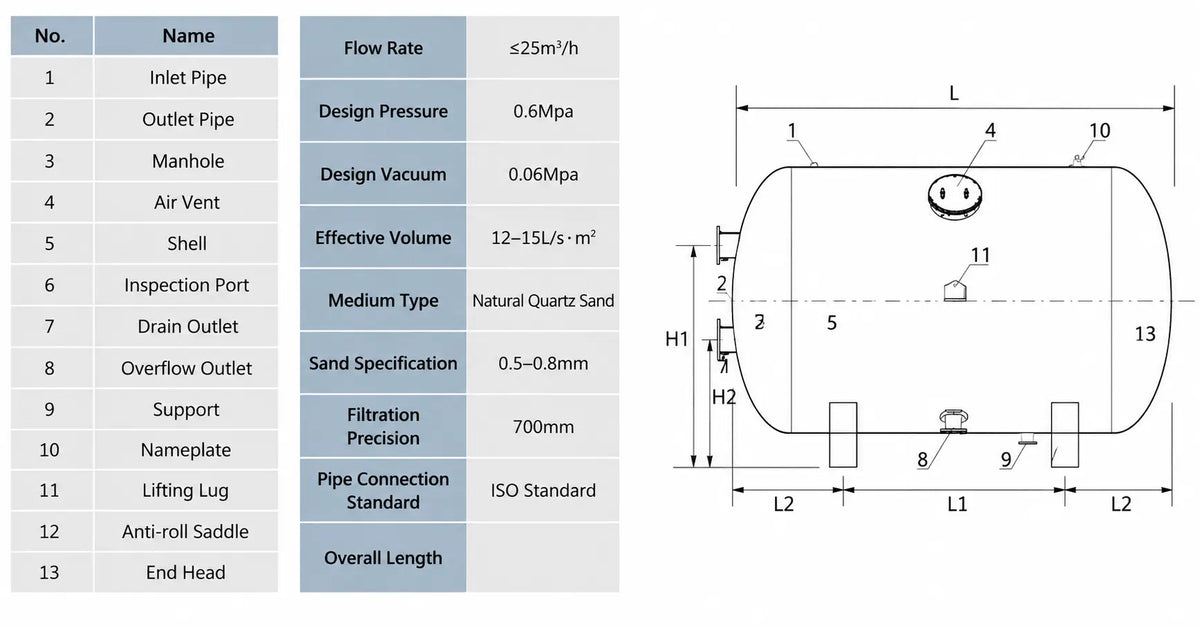

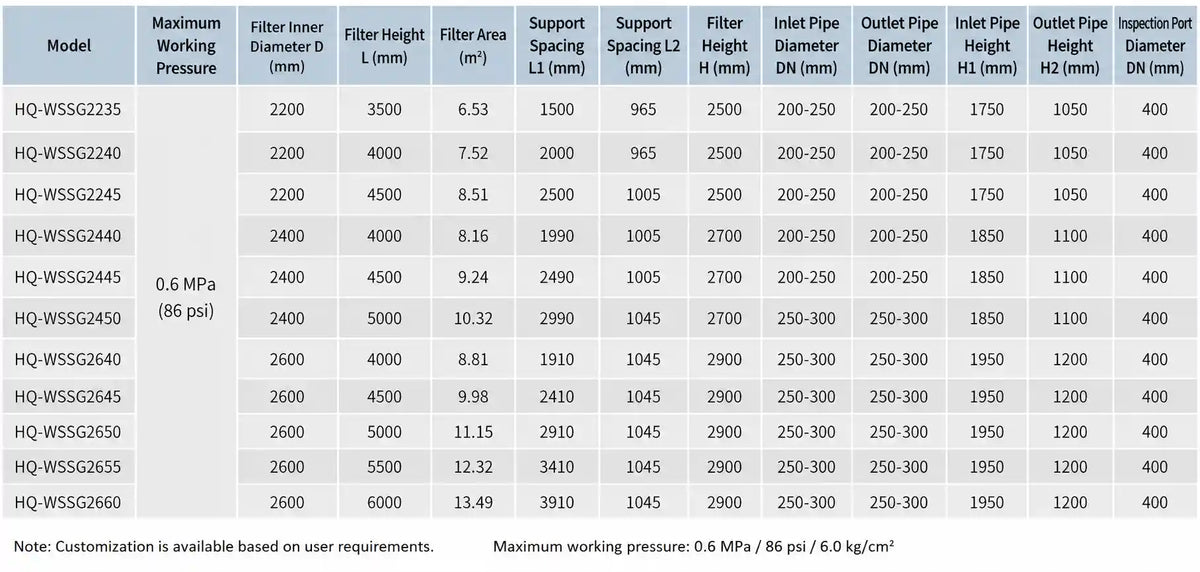

Model Max Pressure Inner Dia. D(mm) Length L(mm) Filter Area(m²) Support L1(mm) Support L2(mm) Height H(mm) Inlet Ht. H1(mm) Outlet Ht. H2(mm) Inlet DN(mm) Outlet DN(mm) Manhole DN(mm)
HQ-WSSG2235 0.6Mpa 2200 3500 6.53 1500 965 2500 1750 1050 200-250 200-250 400
HQ-WSSG2240 0.6Mpa 2200 4000 7.52 2000 965 2500 1750 1050 200-250 200-250 400
HQ-WSSG2245 0.6Mpa 2200 4500 8.51 2500 1005 2500 1750 1050 200-250 200-250 400
HQ-WSSG2440 0.6Mpa 2400 4000 8.16 1990 1005 2700 1850 1100 200-250 200-250 400
HQ-WSSG2445 0.6Mpa 2400 4500 9.24 2490 1005 2700 1850 1100 200-250 200-250 400
HQ-WSSG2450 0.6Mpa 2400 5000 10.32 2990 1045 2700 1850 1100 250-300 250-300 400
HQ-WSSG2640 0.6Mpa 2600 4000 8.81 1910 1045 2900 1950 1200 250-300 250-300 400
HQ-WSSG2645 0.6Mpa 2600 4500 9.98 2410 1045 2900 1950 1200 250-300 250-300 400
HQ-WSSG2650 0.6Mpa 2600 5000 11.15 2910 1045 2900 1950 1200 250-300 250-300 400
HQ-WSSG2655 0.6Mpa 2600 5500 12.32 3410 1045 2900 1950 1200 250-300 250-300 400
HQ-WSSG2660 0.6Mpa 2600 6000 13.49 3910 1045 2900 1950 1200 250-300 250-300 400
