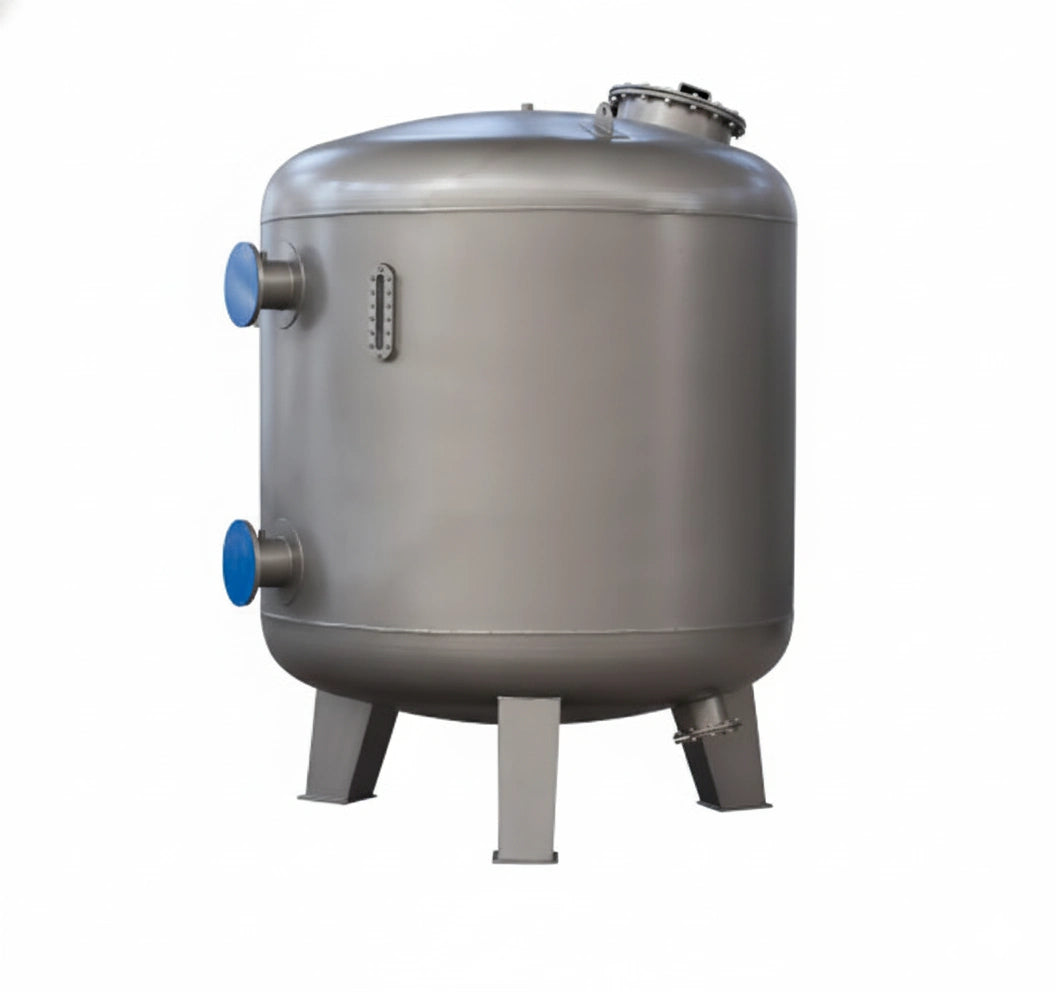

HQ-LSXG Series Vertical Stainless Steel Activated Carbon Adsorption Tank
Product Introduction: The HQ-LSXG series ozone and activated carbon adsorption tanks are constructed from 316L stainless steel, offering high-strength anti-corrosion properties against both ozone and chloride ions. Designed with a...
Product Introduction:The HQ-LSXG series ozone and activated carbon adsorption tanks are constructed from 316L stainless steel, offering high-strength anti-corrosion properties against both ozone and chloride ions. Designed with a maximum working pressure of 0.6Mpa, these tanks utilize slot-type collector filters to ensure a larger distribution area and uniform water flow. The superior physical and chemical properties of the activated carbon ensure stable water quality after adsorption and filtration. The top is equipped with an automatic air release valve that directs residual ozone to an eliminator for reduction to oxygen (O₂) before safe discharge into the atmosphere. A manhole is provided on the tank for convenient maintenance.
Product Features:
Uses granular activated carbon with high adsorption performance, mechanical strength, chemical stability, and strong regeneration ability.
Activated carbon particle size: 0.9–1.6mm; Specific surface area: ≥ 900m²/g.
