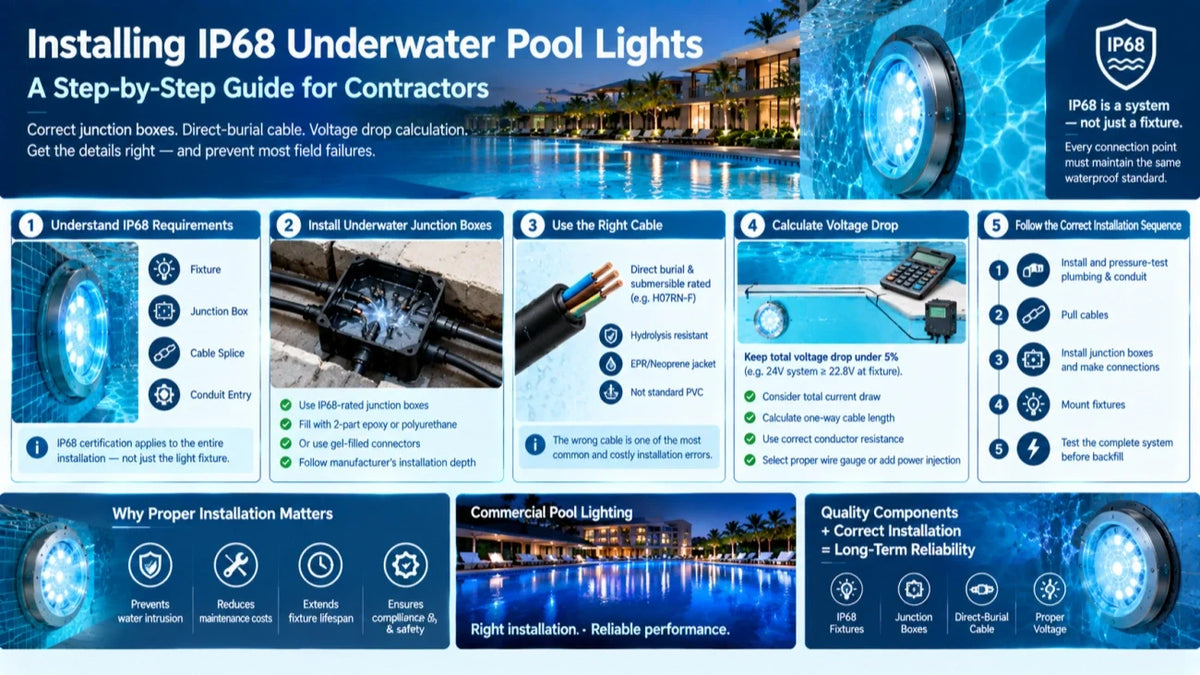

A fixture's IP68 rating only protects the pool as well as the installation around it — even a properly certified light can fail within months if the junction box seal, cable type, or voltage drop calculation is wrong. Contractors need a systematic installation sequence that treats each of these elements as a distinct checklist item rather than assuming a quality fixture guarantees a quality installation. This guide covers the most common installation mistakes and how to avoid them on commercial aquatic projects.

What Does IP68 Certification Actually Require From the Complete Installation?

IP68 certification tests and rates the fixture itself for continuous underwater immersion, but a compliant installation extends that same waterproofing standard to every connection point in the circuit. The junction box, cable splices, and conduit entries all need to maintain equivalent sealing integrity. Contractors should treat IP68 as a system-level requirement, not just a fixture specification, when planning installation sequence and material selection.

To ensure your lighting layout is up to professional standards, browse our underwater LED pool lights.

Sealing Junction Boxes for IP68 Compliance

Underwater junction boxes must carry IP68 rating and should be filled with two-part epoxy or polyurethane potting compound, or use pre-molded re-enterable gel-filled connectors. Never rely on standard electrical tape or indoor-rated wire nuts. Contractors should verify the specific product's documentation to ensure the junction box is rated for the intended installation depth — some are rated for direct submersion, while others must sit above the maximum water level.

Selecting Cable for Direct Burial and Submersion

Direct burial pool light cable must be specifically rated for both underwater and direct-burial service — typically hydrolysis-resistant, submersible-rated cord types like H07RN-F or EPR/Neoprene-jacketed cable. Standard PVC-jacketed wire will crack and fail within months if exposed to damp soil. According to HUIQI Water Technology's engineering team, utilizing incorrect cable remains one of the most common and costly installation errors on commercial projects.

For high-performance electrical infrastructure, see our comprehensive Commercial Pool Equipment guide.

Calculating Voltage Drop for Long Cable Runs

Industry standard practice targets keeping total voltage drop under 5% to avoid visible dimming or flickering. For a 24V DC system, this means the fixture should receive no less than approximately 22.8V under full load. Engineers should calculate drop based on total current draw and one-way cable length to select an appropriately heavy wire gauge, rather than guessing. Insufficient gauge wire starves the LED driver and causes long-term reliability issues.

Avoid performance bottlenecks by properly sizing your commercial pool pumps to ensure adequate system flow and stability.

The Installation Sequence Checklist

1. Plumbing/Conduit: Install and pressure-test all conduit runs before pulling cable.
2. Sealing Check: Confirm all junction box entries are watertight.
3. Cable Pulling: Use submersible-rated direct-burial cable only.
4. Splice & Pot: Complete connections using epoxy or gel-filled kits.
5. Testing: Perform an insulation-resistance test (megohmmeter) before filling the pool basin.

Frequently Asked Questions

Q: What is the difference between standard and IP68 junction boxes?

A: IP68 boxes are tested for permanent submersion, using potting or gel compounds. Standard boxes fail rapidly in wet or buried environments.

Q: How do I choose the right cable gauge?

A: Calculate based on total current and run length to keep voltage drop under 5%. Larger runs or multiple fixtures require thicker gauge wire.

Q: Why test with a megohmmeter before filling the pool?

A: It identifies compromised seals or connections while still accessible, avoiding the massive cost of draining the basin for repairs.

Conclusion

A correct IP68 underwater lighting installation depends on three coordinated elements — properly sealed junction boxes, correctly specified direct-burial cable, and accurate voltage drop calculation. Treating these as a complete system protects against both inspection failures and costly water-ingress callbacks. Request a Technical Consultation →
